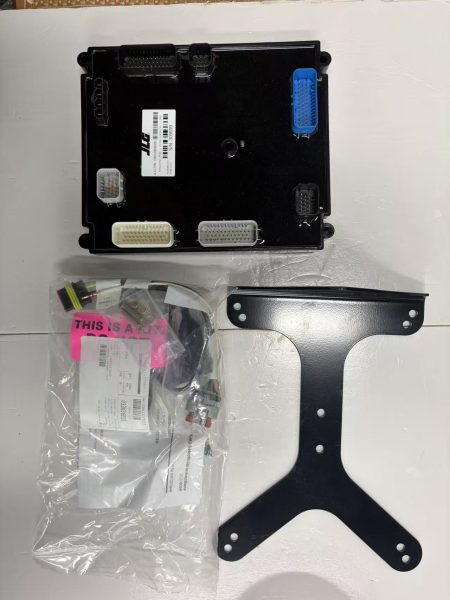

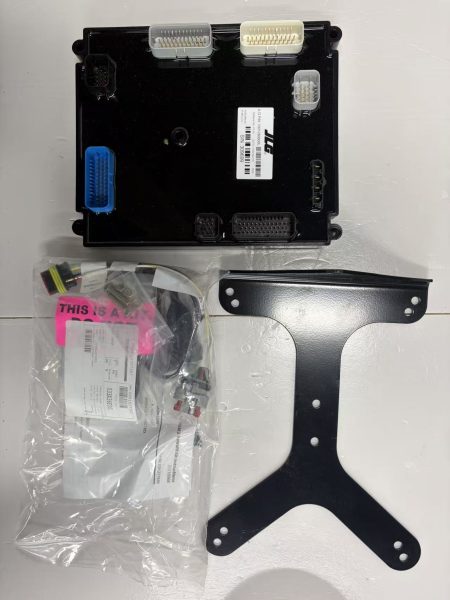

JLG 1001280600 Ground Control Module Controller ADE1 UGM2

JLG 1001280600 is a Ground Control Module Controller Assembly, ADE1 UGM2, designed for compatible JLG aerial work platforms and telescopic boom lifts.

This controller is part of the machine’s ground control system and manages electronic control functions associated with the machine. JLG identifies part number 1001280600 as “CONTROLLER ASSY, ADE1 UGM2.” JLG’s parts documentation also identifies it as a “Module, Ground Control.”

RQ Parts supplies OEM-alternative replacement controllers for JLG aerial work platforms, providing a cost-effective solution for equipment repair, fleet maintenance, machine refurbishment, and service workshops.

Product Information

Part Number: 1001280600

Product Name: Ground Control Module Controller

JLG Description: CONTROLLER ASSY, ADE1 UGM2

Controller Type: ADE1 UGM2

System: Ground Control System

Brand: JLG

Application: JLG Aerial Work Platforms / Telescopic Boom Lifts

Condition: New Replacement Part

RQ Parts Quality: OEM-Alternative

Unit of Measure: EA

JLG’s official listing gives shipping dimensions of approximately 10.4 × 8.5 × 2 inches and a listed weight of 5.3 lb.

What Is JLG 1001280600?

JLG 1001280600 is an electronic ground control module used on compatible JLG equipment.

The controller is identified by JLG as:

CONTROLLER ASSY, ADE1 UGM2

In JLG/SkyTrak parts documentation, the same component is described as:

Module, Ground Control

This means it should not be confused with a drive controller, platform controller, or engine ECU.

The ground control module is part of the machine’s ground-level electronic control system.

JLG 1001280600 Application

JLG 1001280600 is documented on selected JLG and SkyTrak telescopic boom lift configurations.

Official SkyTrak/JLG parts documentation lists 1001280600 as the Ground Control Module on:

• JLG / SkyTrak 800S
• JLG / SkyTrak 860SJ

The parts documentation specifically identifies the component as “Module, Ground Control” and notes that recalibration is required when the module is replaced.

Because JLG equipment can have different controllers depending on machine configuration and serial-number range, always verify the machine serial number before ordering.

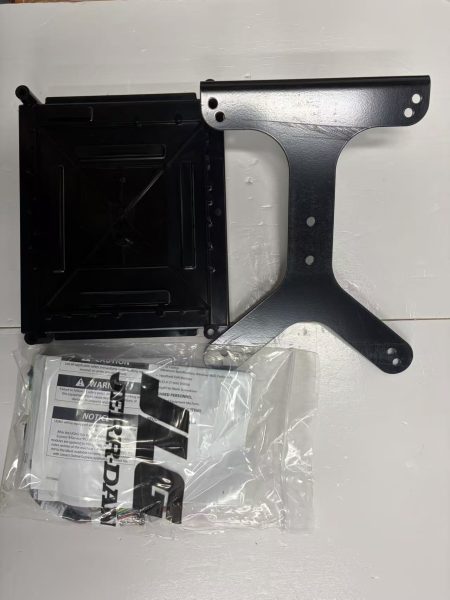

JLG 800S Ground Control Module

JLG 800S is one of the key applications associated with 1001280600.

Customers searching for this component may use keywords such as:

• JLG 800S ground control module
• JLG 800S controller
• JLG 800S control module
• JLG 800S ground controller
• JLG 800S ADE1 controller
• JLG 800S 1001280600
• JLG 800S controller replacement

The JLG/SkyTrak parts documentation lists 1001280600 as the Module, Ground Control for the 800S/860SJ platform.

JLG 860SJ Ground Control Module

1001280600 is also listed for the JLG/SkyTrak 860SJ.

Relevant search terms include:

• JLG 860SJ ground control module
• JLG 860SJ controller
• JLG 860SJ control module
• JLG 860SJ ground controller
• JLG 860SJ ADE1 controller
• JLG 860SJ 1001280600
• JLG 860SJ controller replacement

The applicable JLG/SkyTrak parts documentation identifies 1001280600 as the ground control module for the 800S/860SJ equipment family.

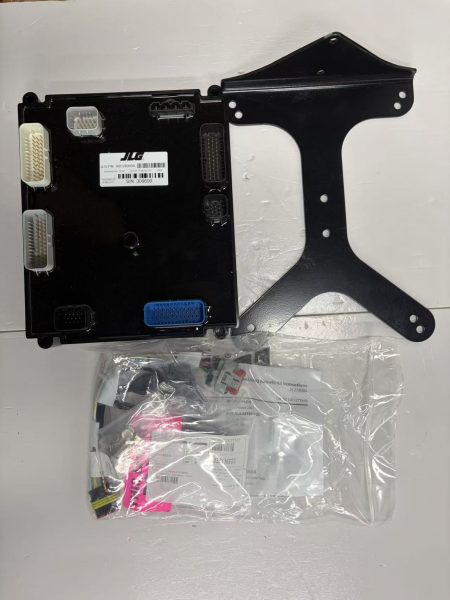

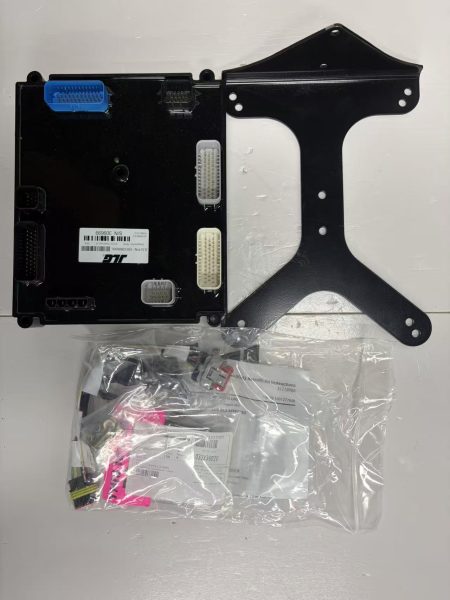

ADE1 UGM2 Controller

The “ADE1 UGM2” designation is important when identifying this controller.

JLG’s official product description is:

CONTROLLER ASSY, ADE1 UGM2

Therefore, customers should compare the designation on their existing controller before purchasing a replacement.

Useful search terms include:

• JLG ADE1 UGM2
• ADE1 UGM2 controller
• ADE1 UGM2 ground control module
• JLG ADE1 controller
• JLG UGM2 controller
• JLG 1001280600 ADE1 UGM2

Ground Control Module vs. Platform Control Module

The 1001280600 is specifically associated with the ground control system.

It should not automatically be confused with other JLG electronic modules such as:

• Platform control module
• Drive control module
• Engine control module
• Power module
• Joystick controller
• Main control board

JLG’s parts documentation specifically identifies 1001280600 as the Module, Ground Control.

Important: Recalibration Required

One of the most important points to include on this product page is the calibration requirement.

JLG/SkyTrak parts documentation states:

Recalibration is required when the module is replaced.

Therefore, replacing 1001280600 should not be treated as simply unplugging the old controller and installing the new one.

After installation, the appropriate JLG service procedure should be followed to complete the required recalibration and verify machine operation.

Why Is Recalibration Important?

A replacement ground control module may need to be configured or calibrated to the machine after installation.

Proper service procedures help ensure:

• Correct machine operation
• Correct control response
• Proper system configuration
• Accurate machine parameters
• Safe equipment operation

For this reason, installation should be performed by a qualified technician familiar with the applicable JLG service procedures.

Symptoms of a Failed Ground Control Module

A defective ground control module can potentially cause electronic control or machine-operation problems.

Possible symptoms may include:

• Ground controls not operating correctly
• Machine functions not responding
• Intermittent control problems
• Control system fault codes
• Communication errors
• Abnormal machine functions
• Machine unable to complete normal operation

However, these symptoms can also be caused by other components.

Before replacing the controller, technicians should inspect:

• Power supply
• Ground connections
• Wiring harnesses
• Connectors
• Fuses
• Sensors
• CAN communication
• Other control modules

A complete diagnostic procedure should be performed before replacing the controller.

JLG 1001280600 Replacement

RQ Parts provides an OEM-alternative replacement solution for JLG 1001280600.

The replacement is intended for customers who need to repair or refurbish compatible JLG equipment without necessarily purchasing the original controller directly from the OEM.

Typical applications include:

• Rental fleet maintenance
• Equipment repair
• Used machine refurbishment
• Service workshops
• Equipment dealers
• Aerial lift distributors

OEM-Alternative JLG Controller

RQ Parts focuses on replacement parts for aerial work platforms and construction equipment.

Our goal is to provide customers with:

• Competitive pricing
• Reliable replacement solutions
• Consistent product quality
• Bulk purchasing support
• Global shipping
• Technical compatibility assistance

For electronic controllers, customers should always provide the machine model and serial number before ordering.

Compatibility Verification

JLG’s official product page provides a “Verify Part by Serial Number” option for 1001280600.

Before purchasing, please send us:

Machine Brand:

Machine Model:

Machine Serial Number:

Original Controller Part Number:

Controller Label Photo:

Machine Production Year, if available:

This information allows RQ Parts to verify whether 1001280600 is the correct controller for your machine.

JLG Controller Parts by RQ Parts

RQ Parts supplies a wide range of electronic and electrical replacement parts for aerial work platforms.

Our product range includes:

• Ground control modules
• Platform control modules
• Drive controllers
• Motor controllers
• Main control boards
• Joystick controllers
• Ground control boxes
• Platform control boxes
• Display modules
• Sensors
• Wiring harnesses
• Communication cables
• Relays
• Switches

We support major aerial work platform brands including:

• JLG
• Genie
• Haulotte
• Skyjack
• Dingli
• LGMG
• XCMG
• Zoomlion

Who Buys JLG 1001280600?

This controller is suitable for:

• JLG rental companies
• Aerial lift rental fleets
• JLG repair workshops
• Telehandler service companies
• Construction equipment dealers
• Equipment distributors
• Used equipment dealers
• Fleet maintenance departments
• Equipment refurbishment companies

Wholesale & Bulk Orders

RQ Parts supports wholesale and bulk orders for JLG electronic controllers and replacement parts.

We work with:

• Rental companies
• Equipment dealers
• Parts distributors
• Repair workshops
• Fleet operators
• Used equipment dealers

For bulk inquiries, send us your JLG parts list.

We can check:

• Part number availability
• Replacement options
• MOQ
• Wholesale pricing
• Compatibility
• Shipping options

Frequently Asked Questions

What is JLG 1001280600?

JLG 1001280600 is a Controller Assembly, ADE1 UGM2. JLG/SkyTrak parts documentation identifies it as a Module, Ground Control.

What does 1001280600 control?

It is part of the ground control system on compatible JLG equipment.

What machines use JLG 1001280600?

Official JLG/SkyTrak parts documentation lists the module for selected 800S and 860SJ configurations.

Is 1001280600 a drive controller?

No. It is identified as a Ground Control Module, not a drive controller.

Does 1001280600 require programming or calibration?

JLG/SkyTrak documentation specifically states that recalibration is required when the module is replaced.

Can I install 1001280600 myself?

Because this is an electronic control module and recalibration is required after replacement, professional installation and the applicable JLG service procedure are recommended.

How can I confirm if 1001280600 fits my machine?

Provide your JLG model and serial number, plus a photo of the existing controller label. JLG itself provides serial-number verification for this part.

Is RQ Parts 1001280600 an original JLG part?

RQ Parts supplies an OEM-alternative replacement. The product page should not describe it as a genuine JLG OEM part unless the specific item being sold is actually genuine JLG.
