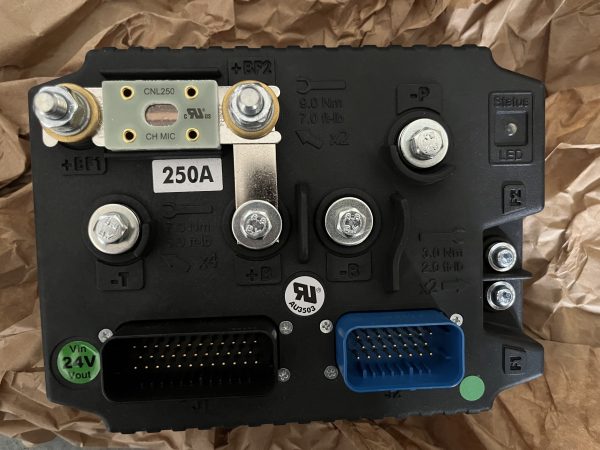

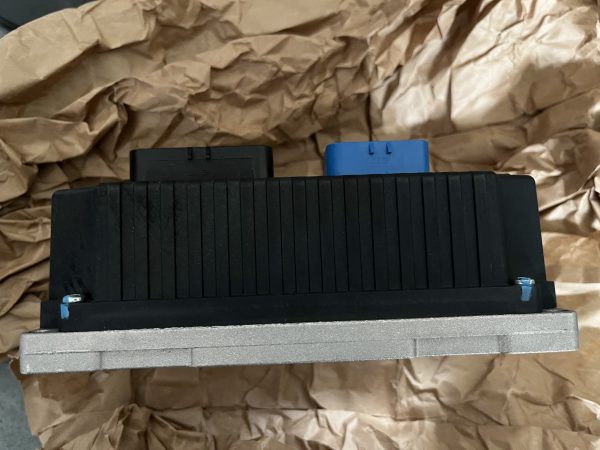

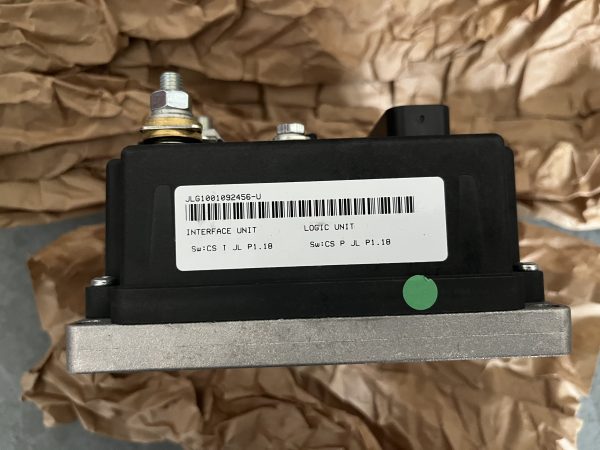

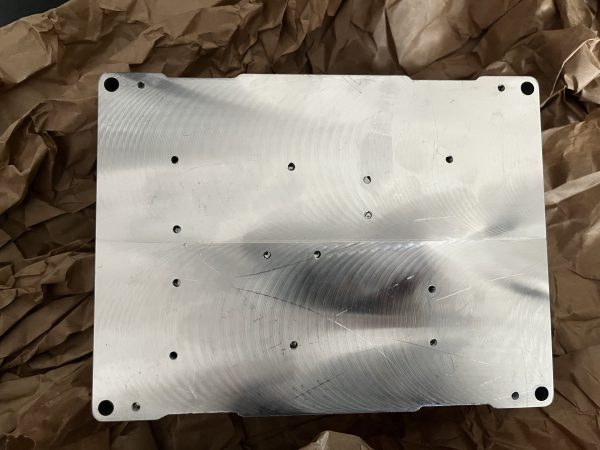

JLG 1001092456 Drive Module is a replacement drive controller used on compatible JLG electric aerial work platforms. The module is part of the machine’s electrical drive system and controls the operation of the drive motors.
JLG identifies 1001092456 as a Drive Module and lists it in the electrical/drive system of selected JLG electric scissor lifts.
RQ Parts supplies OEM-alternative replacement drive modules for JLG equipment, supporting rental companies, repair workshops, equipment dealers, fleet owners, and aerial lift parts distributors worldwide.
Product Information
Part Number: 1001092456
Product Type: Drive Module / Drive Controller
Application: JLG Electric Scissor Lift
System: Electrical Drive System
Brand: JLG
Condition: New Replacement Part
RQ Parts Quality: OEM-Alternative
What Is JLG 1001092456?
JLG 1001092456 is an electronic drive module used in the propulsion system of compatible JLG electric scissor lifts.
The drive module receives electrical control signals and manages power delivered to the machine’s drive motors. It plays an important role in controlling machine travel and drive performance.
This component should not be confused with the drive motor itself. The motor module and drive controller perform different functions within the machine’s electrical drive system.
Compatible JLG Applications
1001092456 is associated with selected JLG electric scissor lift configurations.
Applications can include selected:
- JLG 1230ES
- JLG 1930ES
- JLG 2030ES
- JLG 2630ES
- JLG 2646ES
- JLG 3246ES
Exact compatibility depends on the machine configuration, production date, manufacturing location, and serial number.
For this reason, the machine serial number should always be checked before ordering 1001092456.
1001092456 vs. 1600346
One of the most important considerations when purchasing a JLG drive module is the difference between 1001092456 and 1600346.
Both part numbers are associated with JLG electric drive systems, but they should not automatically be treated as interchangeable.
| Part Number |
Description |
| 1001092456 |
JLG Drive Module |
| 1600346 |
JLG Sevcon Drive Controller / Drive Module |
JLG parts documentation identifies different drive module configurations depending on machine serial number and manufacturing configuration.
Some earlier machines use 1600346, while later configurations may use 1001092456.
Always compare the part number on the original controller before ordering.
Key Features
Replacement for JLG 1001092456
Designed as an OEM-alternative replacement for JLG part number 1001092456.
Drive System Application
The module is used in the electrical propulsion system of compatible JLG machines.
Electronic Motor Control
The drive module controls electrical power supplied to the drive motors according to commands from the machine control system.
Suitable for Electric Scissor Lifts
1001092456 is primarily relevant to JLG electric scissor lift applications.
Cost-Effective Replacement
Replacing a failed drive module can restore machine travel functionality without replacing the complete drive motor assembly.
Symptoms of a Failed Drive Module
A defective drive module may cause various drive-related problems.
Possible symptoms include:
- Machine will not drive
- Loss of forward or reverse travel
- Intermittent drive operation
- Drive-related fault codes
- Abnormal motor operation
- Motor control problems
- Electrical communication faults
- Reduced drive performance
However, these symptoms can also be caused by:
- Batteries
- Drive motors
- Wiring
- Connectors
- Contactors
- Sensors
- Joystick
- Main control board
A proper diagnostic procedure should therefore be completed before replacing the drive module.
JLG 1001092456 for 1930ES
JLG 1930ES is one of the most common machines searched together with JLG drive module part numbers.
However, not every JLG 1930ES uses 1001092456.
Depending on production configuration and serial number, some machines may use an earlier drive module such as 1600346.
Therefore, if you are looking for a 1001092456 for a JLG 1930ES, please provide:
- Machine serial number
- Existing drive module part number
- Photo of the existing controller
- Machine manufacturing location, if available
This information helps prevent ordering the wrong controller.
JLG 1001092456 for 1230ES
The JLG 1230ES also uses different drive module configurations depending on the machine serial number.
Before replacing the controller, compare the existing controller with the required part number.
RQ Parts can help customers identify the correct replacement based on the machine information.
Installation Considerations
Before installing a replacement drive module, technicians should inspect the complete drive electrical system.
Check:
- Battery voltage
- Battery condition
- Drive motor
- Motor cables
- Connectors
- Wiring harness
- Main control system
- Ground connections
- Controller mounting
- Signs of overheating or water damage
After installation, the machine should be tested according to the applicable JLG service procedures.
RQ Parts JLG Drive Controller Solutions
RQ Parts supplies replacement electrical and control components for aerial work platforms.
Our JLG product range includes:
- Drive modules
- Sevcon controllers
- Motor controllers
- Drive controllers
- Control boards
- Joysticks
- Platform control boxes
- Ground control boxes
- Motor cables
- Wiring harnesses
- Sensors
- Switches
- Relays
We also supply replacement parts for:
- Genie
- JLG
- Haulotte
- Skyjack
- Dingli
- LGMG
- XCMG
- Zoomlion
Who Buys JLG 1001092456?
1001092456 is suitable for:
- JLG rental companies
- Aerial work platform rental fleets
- JLG equipment owners
- Scissor lift repair workshops
- Construction equipment dealers
- Aerial lift parts distributors
- Used equipment dealers
- Equipment refurbishment companies
- Fleet maintenance companies
Wholesale & Bulk Orders
RQ Parts supports wholesale and bulk orders for JLG replacement parts.
We work with:
- Rental companies
- Parts distributors
- Repair workshops
- Equipment dealers
- Fleet operators
- Used equipment dealers
Send us your JLG parts list and we can check:
- Part number availability
- OEM-alternative options
- MOQ
- Wholesale pricing
- Compatibility
- Shipping options
Frequently Asked Questions
What is JLG 1001092456?
JLG 1001092456 is a drive module used in the electrical drive system of compatible JLG electric aerial work platforms.
Is 1001092456 a drive motor?
No. 1001092456 is an electronic drive module/controller. It is not the electric drive motor.
Is 1001092456 the same as 1600346?
Not automatically. JLG uses different drive modules on different machine configurations and serial-number ranges. Verify the original controller before ordering.
Can I use 1001092456 on a JLG 1930ES?
Some JLG 1930ES configurations can use 1001092456, but compatibility depends on the machine serial number and drive system configuration.
What are the symptoms of a failed drive module?
Possible symptoms include loss of drive, intermittent travel, drive fault codes, abnormal motor operation, or electrical communication problems.
Can I replace the drive module without replacing the motor?
In many cases, yes. If diagnosis confirms that the controller is defective while the motor and other drive components are functional, the drive module can be replaced separately.
How do I confirm compatibility?
Send us:
- JLG model
- Machine serial number
- Existing controller part number
- Photo of the controller
RQ Parts can help verify the correct replacement.
