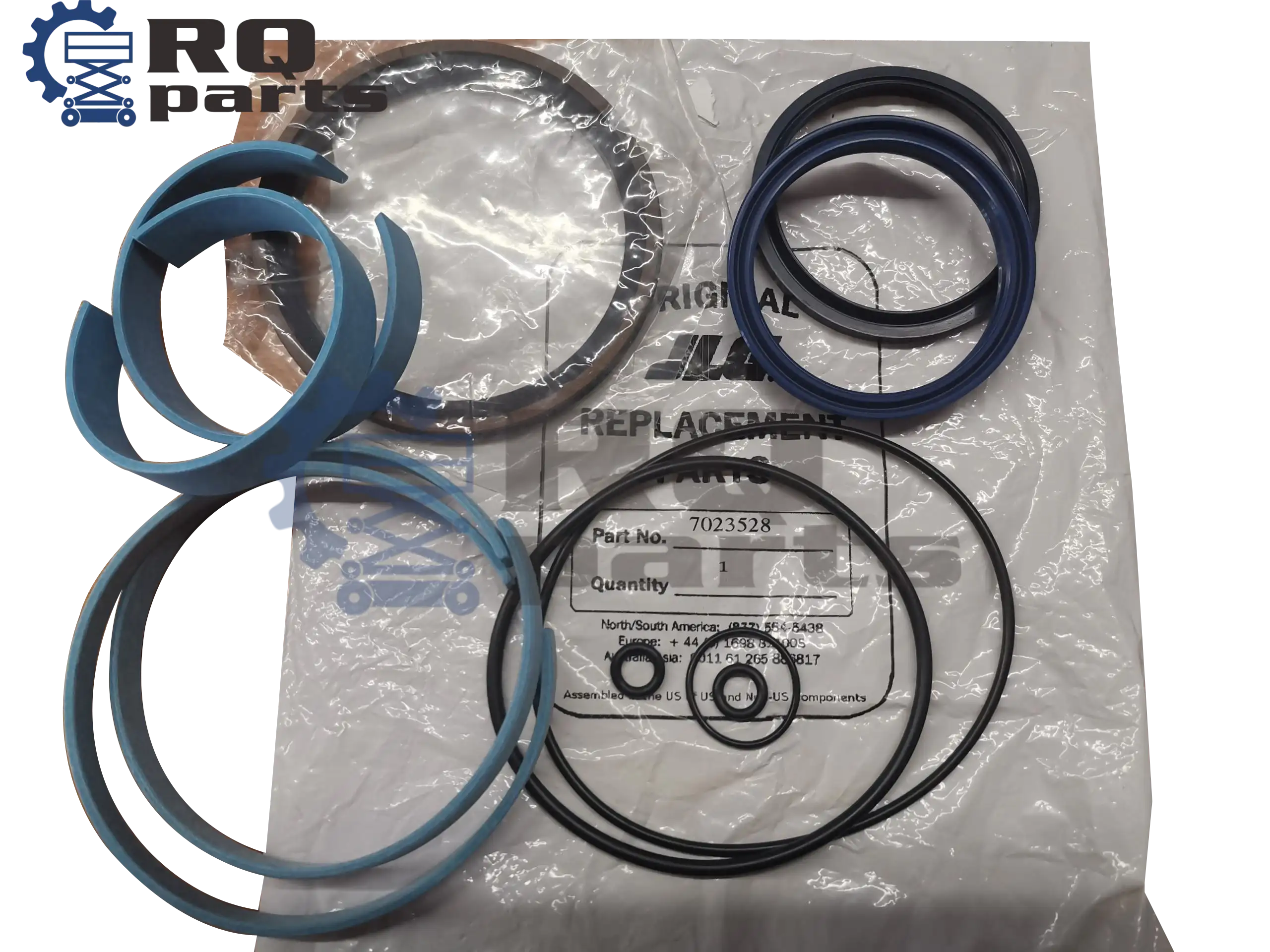

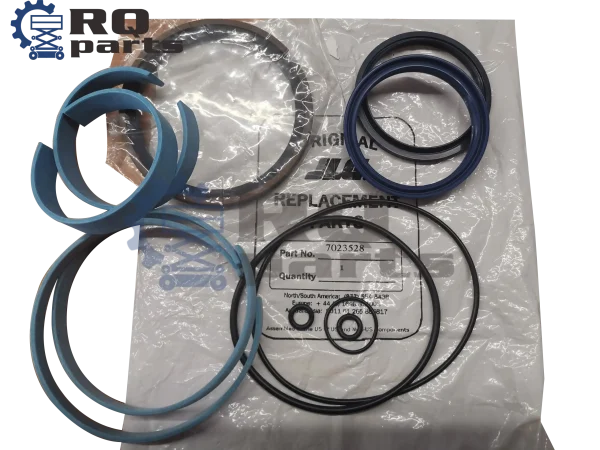

JLG Scissor Lift Seal Kit 7023528 – 3246ES, 2646ES Main Lift Cylinder

Save $20

Can't find what you are looking for?
Contact us, we can help you find the part you need.

Price:

$150 USD $170 USD

Chat Now

Share this product

Seal Kit 7023528 – Optimized Product Page Content

JLG Scissor Lift Seal Kit 7023528

🔹 Product Overview

The Seal Kit with JLG Part Number 7023528 is a crucial, high-quality seal set designed for the Main Lift Cylinder (sometimes referred to as the extension or tilt cylinder) used on various JLG Electric Scissor Lifts, most notably the popular 3246ES and 2646ES models.1

These lift cylinders are responsible for raising and lowering the entire platform assembly. Because they constantly bear the full weight of the platform, operator, and materials, the seals within the cylinders endure immense pressure cycling. When these seals wear, they cause external fluid leaks (weeping rod) or internal bypass (fluid leaking past the piston). Internal bypass is a severe safety hazard as it causes the platform to drift or creep downward under load.

Using the 7023528 seal kit allows for a complete overhaul of the cylinder, restoring its ability to hold pressure reliably, eliminating leaks, and ensuring the stability and safety of the platform at height.

🔹 Key Features & Benefits

✅ Main Lift Cylinder Repair: Specifically formulated kit for rebuilding the primary lift/elevation cylinder on JLG ES-Series Scissor Lifts.
✅ Prevents Platform Drift: Restores internal piston sealing integrity, ensuring the platform remains securely locked at the desired height.
✅ Comprehensive Components: Includes all necessary piston seals, rod seals, wear rings, and wipers for a complete, professional cylinder overhaul.
✅ Cost-Effective Solution: Repairs the existing lift cylinder, offering substantial savings compared to a full component replacement.
✅ Direct Replacement: High-quality aftermarket or genuine OEM equivalent for JLG seal kit 7023528.

🔹 Technical Details

Detail	Specification
JLG Seal Kit PN	7023528
Cross-Reference	Varies based on cylinder dimensions (Verify application details).
Condition	New Aftermarket or Original Equipment Manufacturer (OEM)
Type	Hydraulic Cylinder Seal Kit (Scissor Lift Main Lift)
Components	Rod Seal, Piston Seal, Wear Rings, Wiper, O-rings, Back-up Rings
Function	Seals the cylinder rod and piston to maintain hydraulic pressure for platform lift and hold functions.
Intended Use	Repair/Rebuild of Main Lift Cylinders on JLG ES-Series Scissor Lifts.
Installation Note	Requires professional hydraulic service tools and expertise.
Warranty	Standard warranty against manufacturing defects (varies by supplier)

🔹 Compatible JLG Models & Applications

The Seal Kit 7023528 is compatible with the main lift cylinders used on several JLG Electric Scissor Lifts.² Always verify the specific cylinder part number on your machine against the kit’s compatibility list before purchase.

JLG Equipment Series	Specific Compatible Models (Examples)
Electric Scissor Lifts (ES-Series)	3246ES, 2646ES, 1930ES, 2030ES (Used on specific cylinder sizes in this range)
Common Application	Fixing external leaks (weeping rod) and internal bypass (platform drift) in the primary lift cylinder(s).

🔹 Why Choose a Quality 7023528 Seal Kit?

Critical Safety Fix: A properly sealed lift cylinder is essential for maintaining platform stability and worker safety at height.
Extended Cylinder Life: Rebuilding the cylinder extends the life of this expensive, high-load component.
Precision Sealing: Seals are manufactured from compounds rated for the high pressures and duty cycles of scissor lift operation.
Reliability: Eliminates fluid loss and internal pressure drop, ensuring the machine meets all safety and performance standards.
