JLG Scissor Lift Brake Kit 7024772 – 1230ES 1930ES 2030ES 2630ES 2646ES 3246ES 2032ES 2632ES Drive Motor Replacement

Save $10

Can't find what you are looking for?
Contact us, we can help you find the part you need.

Price:

$80 USD $90 USD

Chat Now

Share this product

Brake Kit 7024772 – Optimized Product Page Content

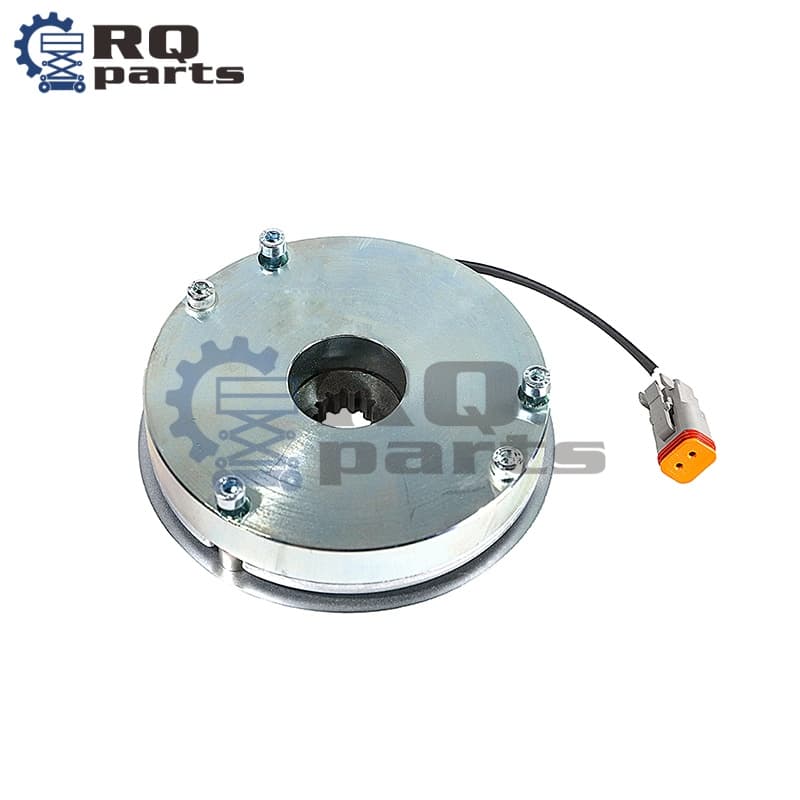

JLG Scissor Lift Brake Kit 7024772

🔹 Product Overview

The Brake Kit with JLG Part Number 7024772 is a critical safety and maintenance component designed for the Drive Motor Brake Assembly on a wide range of JLG Electric Scissor Lifts and Vertical Mast Lifts.1 This kit is essential for models including the 1230ES, 1930ES, 2030ES, 2630ES, 2646ES, 3246ES, 2032ES, and 2632ES.2

The brake assembly is integrated into the hydraulic drive motors and functions as a spring-applied, hydraulically released unit. This component is solely responsible for the lift’s parking brake function, ensuring the lift remains safely secured when stopped, particularly on inclines. Wear and tear on the internal friction discs and seals will compromise the brake’s holding torque.

The 7024772 Brake Kit provides the necessary replacement components to rebuild the brake unit, restoring the lift’s full holding capacity, which is crucial for safety compliance and operator confidence.

🔹 Key Features & Benefits

✅ Safety Critical Component: Essential kit for restoring the parking brake function and holding torque on JLG ES-Series lifts.³
✅ Wide Model Compatibility: Fits the common drive motor brake system used on many JLG Electric Scissor and Vertical Lifts.⁴

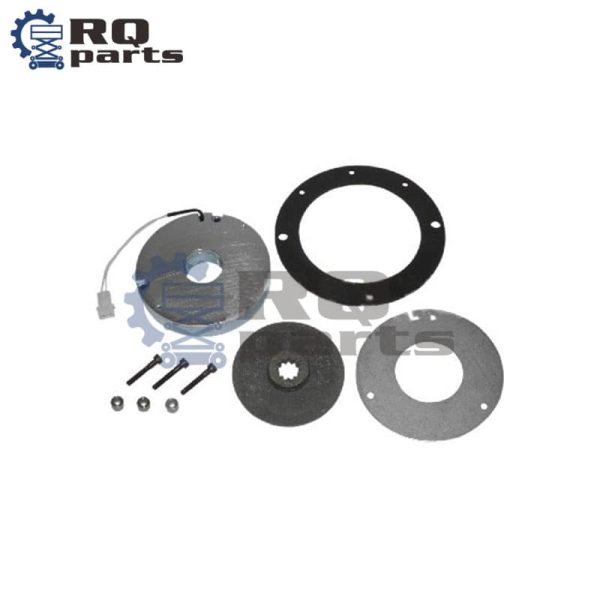

✅ Comprehensive Components: Includes all necessary friction discs, seals, and related hardware for a complete brake unit overhaul.⁵
✅ Restores Holding Power: Eliminates brake slippage, ensuring the lift remains securely parked, especially on sloped surfaces.
✅ Direct Replacement: High-quality aftermarket or genuine OEM equivalent for JLG Brake Kit Part Number 7024772.

🔹 Technical Details

Detail	Specification
JLG Part Number	7024772
Cross-Reference	Varies based on drive motor manufacturer (Confirm motor compatibility).
Condition	New Aftermarket or Original Equipment Manufacturer (OEM)
Type	Drive Motor Brake Repair/Service Kit
Components	Friction Discs, Seals, Springs, and/or related components for the motor brake.
Function	Replaces worn internal components in the drive motor brake assembly.
Intended Use	Repair of Parking/Dynamic Brakes on JLG ES-Series Lifts.
Installation Note	Requires careful calibration and professional installation to meet holding torque specs.
Warranty	Standard warranty against manufacturing defects (varies by supplier)

🔹 Compatible JLG Models & Applications

The Brake Kit 7024772 is designed for the drive motor brake system used on the following JLG Electric Lifts.⁶ Always verify the specific drive motor model before purchase.

JLG Equipment Series	Specific Compatible Models (Examples)
Vertical Mast Lift	1230ES
Electric Scissor Lifts (ES-Series)	1930ES, 2030ES, 2032ES, 2630ES, 2632ES, 2646ES, 3246ES
Common Application	Restoring the reliable holding torque of the drive motor brake assemblies to ensure machine safety and compliance when parked or traveling on slopes.
