Roller Limit Switch 1001130614 – R10 Safety Position Sensor for JLG Scissor Lifts

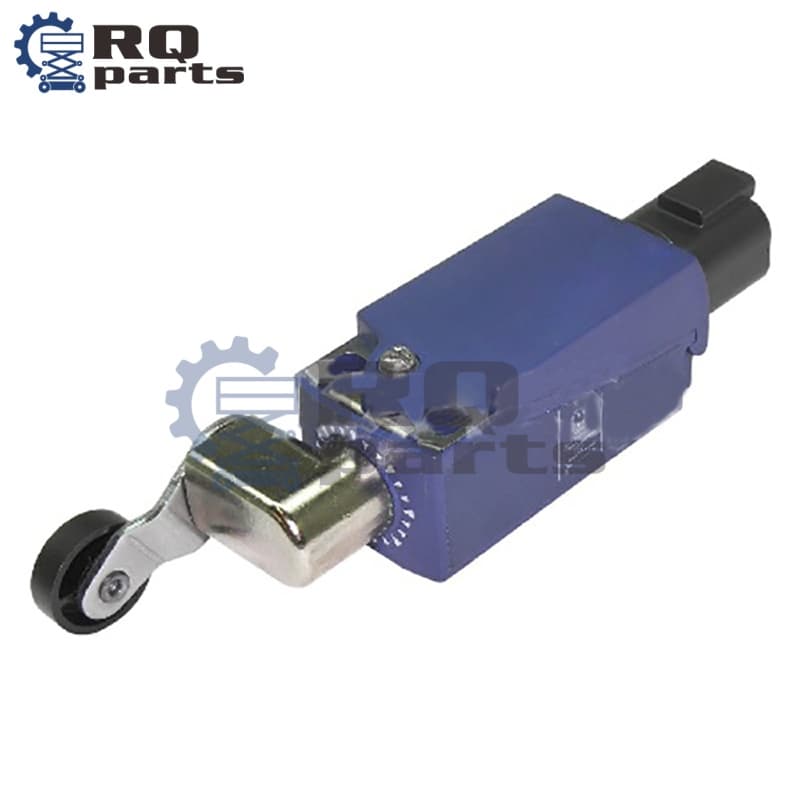

RQ Parts - JLG Roller Limit Switch 1001130614 R10 Safety Position Sensor for Electric Scissor Lifts

🔹 Product Overview: Critical Roller-Actuated Safety Switch

The Roller Limit Switch, designated as R10 and bearing part number 1001130614, is a critical electro-mechanical component designed for precise position sensing and safety control in various JLG Electric Scissor Lifts.1

This specific roller lever limit switch is vital for the lift’s safety system, typically used to:

Monitor the position of the deck extension or outrigger movement.
Signal full travel limits on the scissor stack or chassis components.
Act as an interlock that requires a component to be correctly positioned before the lift can be operated or moved.

The roller lever design ensures reliable activation even when actuated by sliding or glancing contact from a moving component. The dependable function of the 1001130614 (R10) switch is essential for maintaining safety compliance and the operational integrity of the lift.

As a high-quality aftermarket replacement supplied by RQ Parts, this 1001130614 Switch offers an exact-fit solution. A malfunctioning roller switch can lead to operational faults, intermittent system errors, or restrict movement capabilities.2 Replacing it ensures accurate position sensing and safe, smooth machine operation.

🔹 Key Features & Benefits

✅ Roller-Actuated Design: Features a roller lever for reliable actuation by moving machine components, even with slight misalignment.3

✅ Safety Compliance: Provides accurate feedback for crucial machine states, ensuring control systems enforce safe operating parameters.

✅ Direct OEM Cross-Reference: Exact match for JLG part number 1001130614 (Known position R10 on schematics).

✅ Durable Construction: Built with robust materials to withstand frequent mechanical use and environmental exposure typical in aerial work platforms.

🔹 Technical Details

Part Number: 1001130614 (Commonly identified as R10) Condition: 100% new replacement Type: Roller Limit Switch / Position Sensor (Limit Switch R10) Application: Sensing the position of moving components such as deck extensions, outriggers, or scissor stack limits. Compatibility: Used across many JLG Electric Scissor Lift Models (Consult manual for specific models). Warranty: 12 months against manufacturing defects

🔹 Compatible Genie Models & Applications

The Roller Limit Switch 1001130614 (R10) is used extensively in JLG Electric Scissor Lifts, including but not limited to: JLG Electric Scissor Lifts: Models like 1930ES, 2630ES, 3246ES, and others utilizing the R10 designation in their electrical schematics. Common Application: Located where precise sensing of mechanical component travel is required (e.g., end of slide tracks for extensions). Note: Always verify the full part number and the ‘R10’ position against your machine’s manual and serial number for guaranteed fit and function.

🔹 Why Choose RQ Parts?

Electrical System Experts: We specialize in high-precision limit switches and critical control components essential for sophisticated AWP safety systems. Guaranteed Compatibility: Parts are verified to match the electrical and physical specifications of the OEM assembly. Competitive Pricing: High-quality replacement switches offered at cost-effective prices. Fast Global Delivery: Reliable logistics ensure minimal downtime, keeping your equipment operational and safe.
