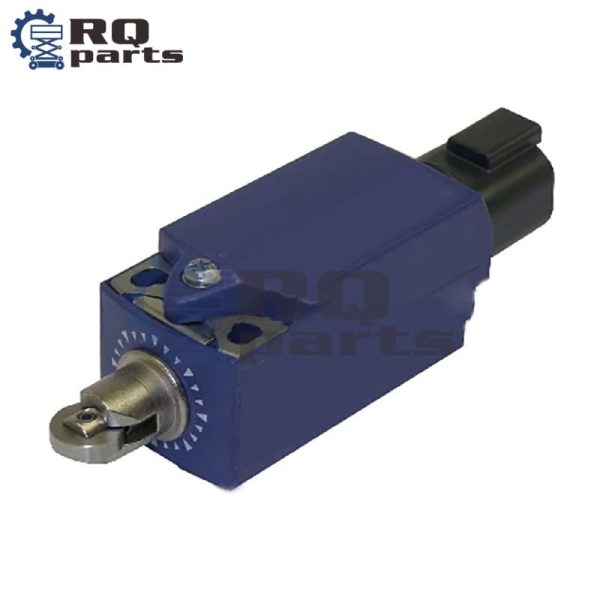

Plunger Limit Switch 1001109088 – JLG Scissor Lift Safety Control

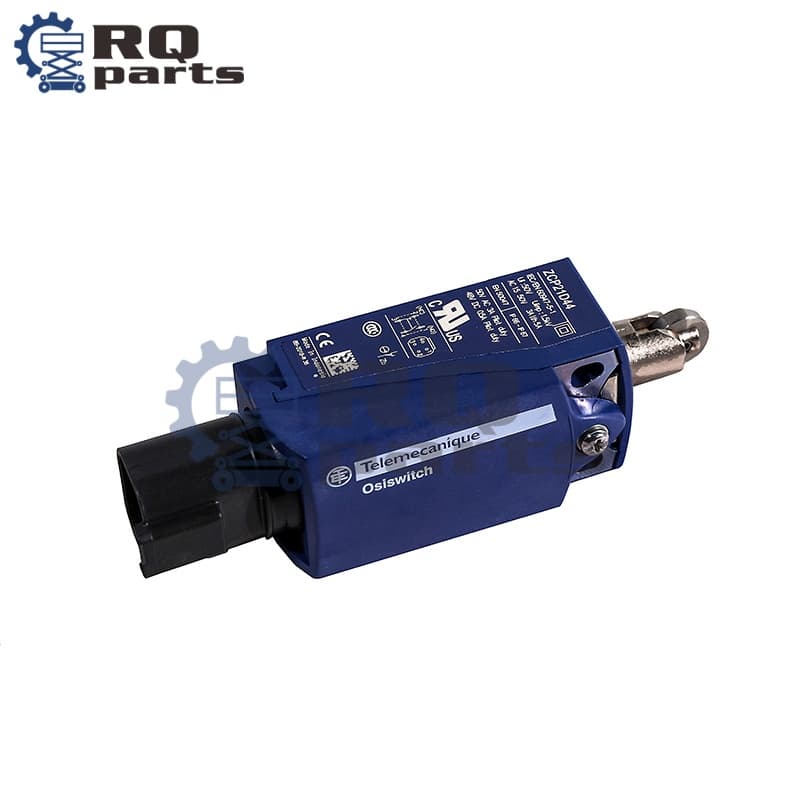

RQ Parts - JLG Plunger Limit Switch 1001109088 Safety Sensor for ES-Series Scissor Lift Control System

🔹 Product Overview: Critical Safety and Position Sensor

The Plunger Limit Switch with part number 1001109088 is a critical electro-mechanical component designed for safety and position control in various JLG ES-Series Electric Scissor Lifts (Mast Lifts).1

This type of limit switch is essential for the reliable operation of the lift, often used to:

Determine maximum extension/retraction limits of hydraulic cylinders or movement components.
Verify proper positioning of components like the scissor deck extension or entry gate.
Act as an interlock to prevent certain operations unless the machine is in a safe or correct state.

The plunger design allows for activation by direct physical contact with a moving part (e.g., a lever, cam, or frame component).¹ Reliable function of the 1001109088 switch is crucial to prevent system errors, ensure compliance with safety parameters, and maintain operational integrity of the lift.

As a high-quality aftermarket replacement supplied by RQ Parts, this 1001109088 Limit Switch offers an exact-fit solution. A failed limit switch can lead to control malfunctions, system lockout errors, or intermittent operation.2 Replacing it ensures precise component sensing and safe machine operation for your JLG ES-Series lift.

🔹 Key Features & Benefits

✅ Multi-Model Compatibility: Precision-engineered switch designed for a wide range of JLG ES-Series Electric Scissor Lifts.32

✅ Safety Assurance: Provides accurate component position feedback to the control system, ensuring safe operating limits are enforced.

✅ Direct OEM Cross-Reference: Exact match for JLG part number 1001109088 (Check older predecessor numbers as well, if applicable).

✅ Durable Plunger Design: Built to withstand repeated mechanical actuation and tough operating environments.3

🔹 Technical Details

Part Number: 1001109088

Condition: 100% new replacement

Type: Plunger Limit Switch / Position Sensor

Application: Safety interlocks, component position sensing, and hydraulic stroke limit control within the lift structure.

Compatibility: JLG Electric Scissor Lifts (ES-Series)

Warranty: 12 months against manufacturing defects

🔹 Compatible Genie Models & Applications

The Plunger Limit Switch 1001109088 is primarily used in the following JLG machines:

JLG ES-Series Scissor Lifts (Electric): 1230ES, 1930ES, 2030ES, 2032ES, 2630ES, 2632ES, 2646ES, 3246ES

Common Application: Typically located near hydraulic cylinder ends, deck extension mechanisms, or safety gates.

Note: Always verify the full part number against your machine’s manual and serial number to ensure correct component replacement.
