JLG Platform Control Module 1001109498 – E400, M600JP, E450AJ Basket Controller

Save $100

Can't find what you are looking for?
Contact us, we can help you find the part you need.

Price:

$1,000 USD $1,100 USD

Chat Now

Share this product

Platform Control Module 1001109498 (Basket Controller) – Optimized Product Page Content

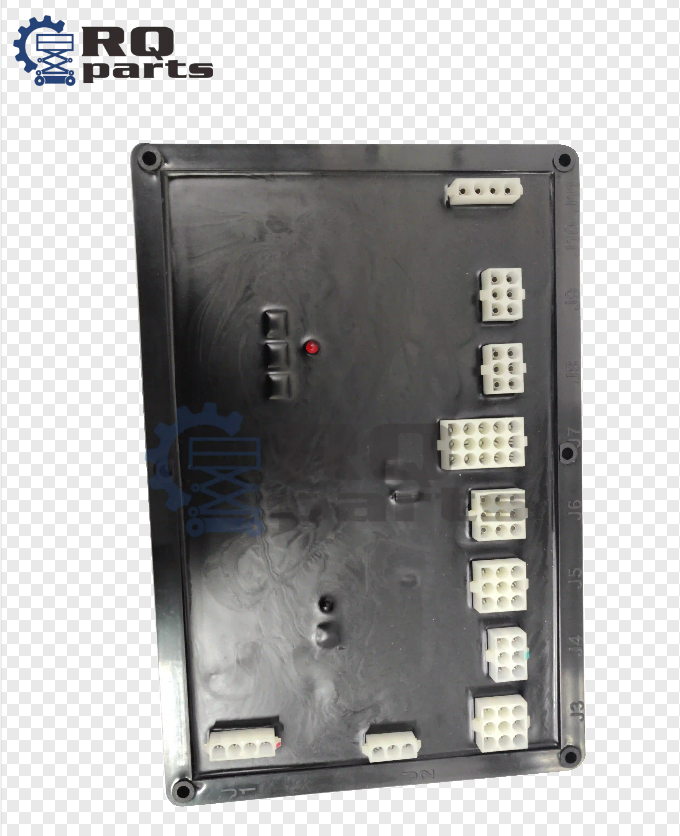

Replacement JLG Platform Control Module 1001109498 for E400 and M600JP Boom Lift Elevated Basket Control Panel

🔹 Product Overview

The Platform Control Module with part number 1001109498 is a critical electronic component specifically designed for the elevated Basket Control Panel of various JLG Electric and Hybrid Boom Lifts (E-Series and M-Series). This module acts as an intermediary processor, taking high-level input signals from the operator’s joystick and switches and translating them into signals that are sent down to the main chassis controller. It is the primary interface for the operator to control all boom functions (drive, steer, lift, telescope) from the platform.

The 1001109498 is an essential replacement for addressing control failures that originate at the platform, such as intermittent drive commands, unresponsiveness, or faulty display feedback. Due to its exposure to operator handling and environment, this module is a high-wear electronic component. Replacing it with a new, tested unit is necessary to restore precise and reliable machine control.

🔹 Key Features & Benefits

✅ Elevated Control Hub: Processes all inputs from the joystick, foot switch, and toggles on the platform panel.

✅ E/M-Series Specific: Engineered for the control system architecture of JLG Electric and Hybrid Boom Lifts.

✅ Troubleshooting Solution: Direct replacement for resolving control faults and unresponsiveness at the basket level.

✅ Direct OEM Cross-Reference: High-quality aftermarket equivalent for JLG part number 1001109498.

🔹 Technical Details

Detail	Specification
Part Number	1001109498
Condition	100% new aftermarket replacement
Type	Platform Control Module / Basket Logic Controller
Function	Receives operator input and communicates with the main chassis controller.
Application Location	Mounted inside the Elevated Platform Control Box.
Compatibility Note	Specific to JLG E-Series and M-Series control systems.
Warranty	12 months against manufacturing defects

🔹 Compatible JLG Models & Applications

The Platform Control Module 1001109498 is a crucial electronic replacement part for the following JLG Boom Lifts:

JLG Equipment Series	Specific Compatible Models
Electric/Hybrid Boom Lifts	E400, E450, E450AJ, M400, M450, M400AJPn, M600JP

Common Application: Essential for interpreting and translating all boom movement commands issued by the operator in the elevated platform basket.

🔹 Why Choose RQ Parts?

Restore Precision Control: Ensures accurate and immediate translation of joystick and switch commands.

Quality Tested: Each module is rigorously checked for reliable electronic performance and seamless integration with the JLG system.

Minimize Downtime: Quickly fixes complex electronic faults at the platform, getting high-reach equipment back to work.

Competitive Pricing: Cost-effective solution for replacing high-value, exposed electronic control components.
