Platform Rotator without Valve 94398GT – Optimized Product Page Content

🔹 Product Overview

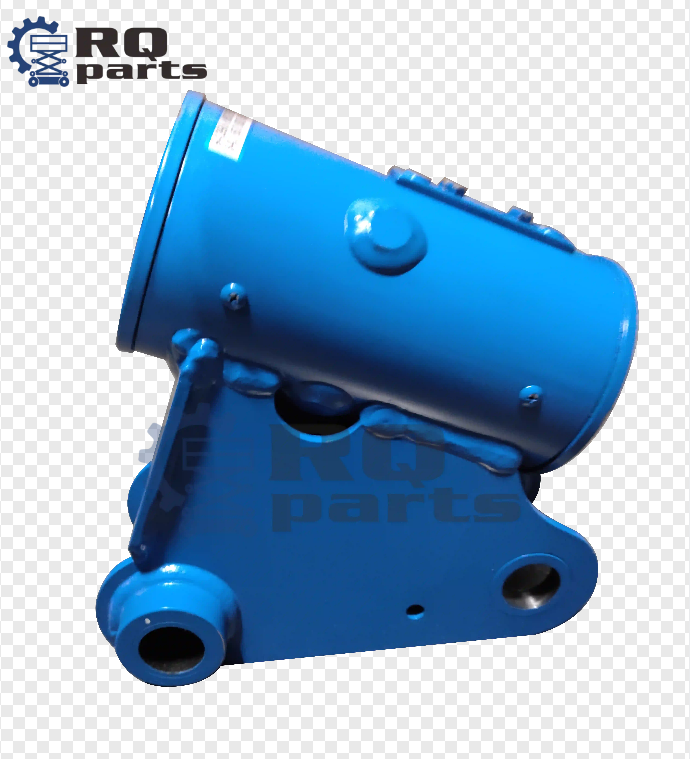

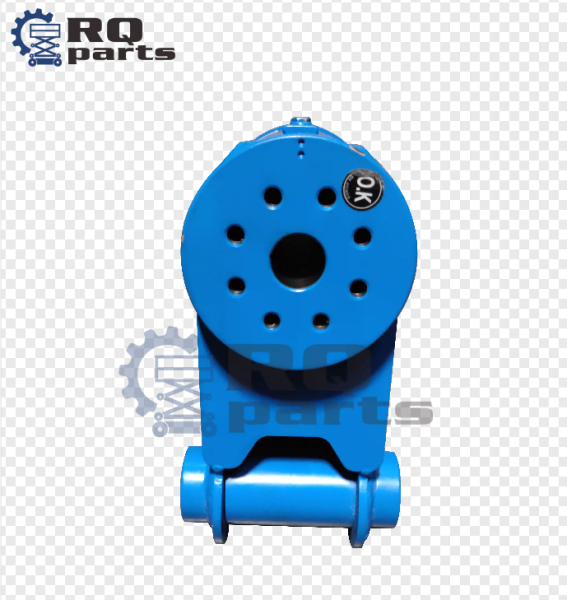

The Platform Rotator without Valve with Genie Part Numbers 94398 and 94398GT is a key mechanical and hydraulic assembly component responsible for the rotational movement of the work platform (man basket) on various Genie Telescopic Boom Lifts (S-Series).
This assembly is a complete rotator head, including the hydraulic motor and gear drive mechanism, but it does not include the hydraulic manifold or control valve (which must be transferred from the old unit or purchased separately). The rotator allows the platform to be turned side-to-side (typically $\pm 90^{\circ}$ or $160^{\circ}$ total), providing the operator with precise positioning capability at the worksite.
Failure of the rotator (94398GT), typically due to internal motor seal leaks, gear wear, or spline damage, results in sluggish, inconsistent, or complete loss of platform rotation. Replacing this unit is essential for restoring precise platform control and maximizing the lift’s utility.
🔹 Key Features & Benefits
- ✅ Platform Rotation Actuator: Complete hydraulic motor and gear assembly responsible for turning the operator platform side-to-side.
- ✅ Excludes Valve: Supplied as the mechanical/hydraulic drive unit only, allowing the reuse of the existing functional control valve.
- ✅ Restores Precision Positioning: Ensures the operator can accurately adjust the platform orientation at height for optimal access.
- ✅ Wide Model Compatibility: Fits a large, popular fleet of Genie Telescopic Boom Lifts (S-40 up to S-85X).1
- ✅ Direct Replacement: High-quality aftermarket or genuine OEM equivalent for Genie Part Numbers 94398 and 94398GT.
🔹 Technical Details
| Detail |
Specification |
| Genie Part Number |
94398GT (Replaces 94398) |
| Cross-Reference |
Platform Rotator Motor, Basket Swivel Drive |
| Condition |
New Aftermarket or Original Equipment Manufacturer (OEM) |
| Type |
Hydraulic Gear Motor and Drive Assembly |
| Valve Status |
Without Integrated Valve (Drive Unit Only) |
| Function |
Provides hydraulic power to rotate the work platform (man basket). |
| Intended Use |
Replacement for platform rotation failure (internal leaks, gear wear, no movement). |
| Installation Note |
Transfer the control valve/manifold from the old unit. Requires hydraulic system bleeding. |
| Warranty |
Standard warranty against manufacturing defects (varies by supplier) |
🔹 Compatible Genie Models & Applications
The Platform Rotator 94398GT is compatible with the boom tip platform mounting systems of the following Genie Telescopic Boom Lifts.2 Always verify the part number with your lift’s serial number for precise fitment.
| Genie Equipment Series |
Specific Compatible Models (Examples) |
| Telescopic Boom Lifts (S-Series) |
S-40, S-45, S-60, S-65, S-80, S-85, S-80X, S-85X |
| Common Application |
Replacing the platform rotation drive mechanism when rotation is failing or hydraulic fluid is leaking from the rotator motor housing. |
