Limit Switch 88356-146R3GT (Roller Plunger, SPDT, 5A) – Optimized Product Page Content

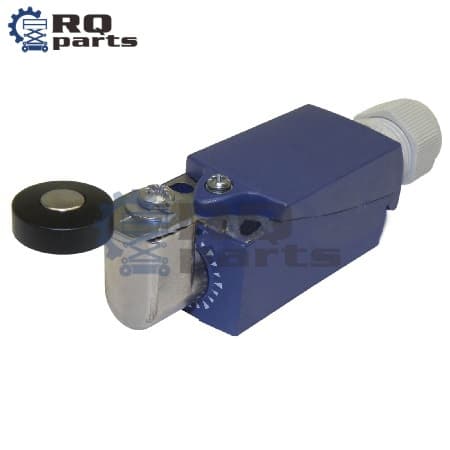

RQ Parts - Genie Limit Switch 88356-146R3GT Position Sensor for Z-Series Boom Lift Control System

🔹 Product Overview

The Limit Switch with part number 88356-146R3GT (cross-referenced as GN-88356-146 and 88356-146R3) is a precision electrical component essential for safety and functional control in various Genie boom lifts.¹ This specific switch features a Roller Plunger Actuator, which is typically used to detect the position or travel limit of moving parts like booms or outriggers. The electrical configuration is SPDT (Single Pole, Double Throw), allowing it to control two circuits, and it is rated for 5 Amps of current.

As a critical aftermarket safety replacement supplied by RQ Parts, this 88356-146R3GT Limit Switch ensures that your Genie machine operates within its designed range, preventing potential damage or unsafe operation. Its failure can lead to critical function lockouts or erratic machine behavior.² Replacing it with a high-quality component restores the machine’s essential safety limits and operational reliability across your diverse Genie fleet.

🔹 Key Features & Benefits

✅ Precision Sensing: Features a Roller Plunger actuator for reliable, repeatable position detection.

✅ Standard Configuration: SPDT electrical configuration allows for versatile circuit control (Normally Open/Normally Closed).3

✅ High Compatibility: Essential safety and function switch for numerous popular Genie Z-Series Articulating Boom Lifts.4

✅ Direct OEM Cross-Reference: Exact match for Genie part numbers 88356-146R3GT and 88356-146.

🔹 Technical Details

Detail	Specification
Part Number	88356-146R3GT (Also known as GN-88356-146, 88356-146R3)
Condition	100% new aftermarket replacement
Type	Limit Switch
Actuator	Roller Plunger
Configuration	SPDT (Single Pole, Double Throw)
Rating	5A
Application	Boom/Jib Position Sensing, Travel Limit Safety
Warranty	12 months against manufacturing defects

🔹 Compatible Genie Models & Applications

This Limit Switch 88356-146R3GT is commonly used in safety and control circuits of the following popular Genie Articulating Boom Lifts:

Genie Model Series	Specific Compatible Models
Z-Series (Articulating)	Z-60/34 RT, Z-30/20N, Z-34/22 DC
Z-Series (Others)	Z-45/25, Z-51/30, Z-80/60 (Confirm application per machine)

Common Application: Used to signal the platform control system when the boom, jib, or axle has reached its predefined safe limit position.

🔹 Why Choose RQ Parts?

Safety Critical Experts: We specialize in reliable sensing and electrical components that maintain the critical safety functions of your lift equipment.
Precision and Durability: Switches built to meet or exceed OEM specifications for long service life in demanding environments.⁵
Competitive Pricing: High-quality replacement switches offered at cost-effective prices for maintaining large fleets.
Fast Global Delivery: Reliable logistics ensure minimal downtime, keeping your high-reach equipment operational.
