Branch Tee Fitting 48890GT – Optimized Product Page Content
🔹 Product Overview

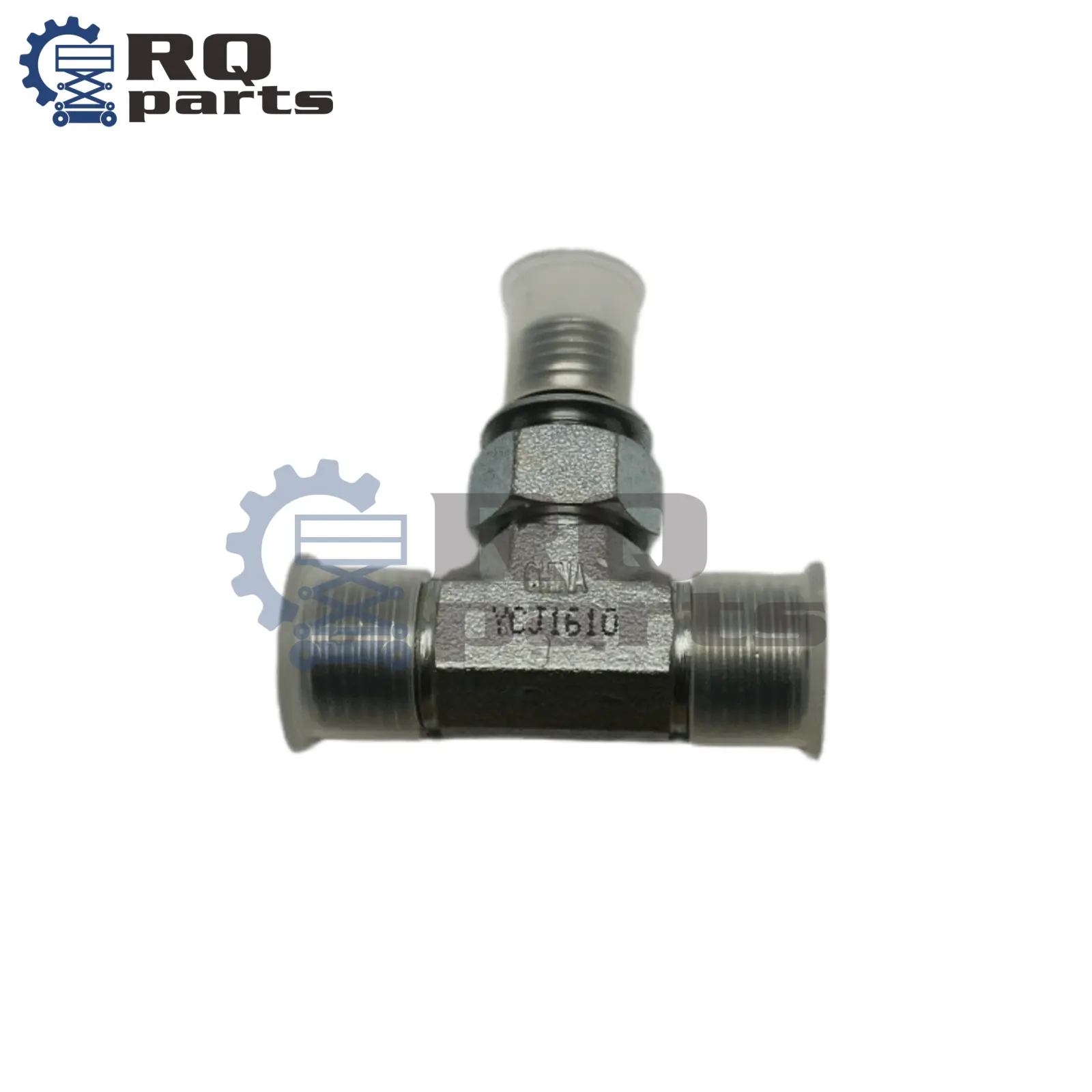

The Branch Tee Fitting with Genie Part Numbers 48890 and 48890GT is a specialized hydraulic connector used to create a branch-off point within a single hydraulic line in Genie Mobile Elevated Work Platforms (MEWPs). This component is defined by the industry-standard specification 520429-4, which signifies its tee shape, size, and thread configuration.
The tee fitting is crucial for splitting or combining hydraulic fluid flow to two different components from one supply line (or vice versa). In a branch tee configuration, the two ports on the main run are typically identical, while the third port (the branch) is often set at $90^\circ$. This allows a single circuit to supply or return fluid to a secondary function.
Failure of the original fitting, often due to high-pressure fatigue or damage, requires replacement with a component like the 48890GT to ensure the integrity of the split circuit, prevent hydraulic leaks, and maintain the precise pressure distribution required for safe lift operation.
🔹 Key Features & Benefits
- ✅ Hydraulic Flow Splitter: Essential tee fitting for creating a branch-off point in a single hydraulic line.
- ✅ Standardized Specification: Complies with the industry standard 520429-4 fitting type for guaranteed thread and sealing compatibility.
- ✅ Three-Way Connection: Allows three hydraulic lines or components to be connected at a single, secure point.
- ✅ Dual Part Number Reference: Direct, high-quality replacement for Genie part numbers 48890 and 48890GT.
- ✅ High-Pressure Integrity: Built with durable materials to maintain a robust, leak-free seal under maximum operating pressure.
🔹 Technical Details
| Detail | Specification |
| Genie Part Numbers | 48890, 48890GT |
| Fitting Specification | 520429-4 |
| Condition | New Aftermarket or Original Equipment Manufacturer (OEM) |
| Type | Hydraulic Branch Tee Fitting |
| Material | High-strength corrosion-resistant metal (e.g., plated steel). |
| Function | Splits or combines hydraulic fluid flow to a secondary component. |
| Intended Use | Hydraulic systems on Genie Boom Lifts and Scissor Lifts for circuit branching. |
| Configuration | Tee shape with one branch at $90^\circ$ to the main run. |
| Warranty | Standard warranty against manufacturing defects (varies by supplier) |
🔹 Compatible Genie Models & Applications
The Branch Tee Fitting 48890GT is used throughout the complex hydraulic systems of Genie equipment where fluid flow must be reliably distributed. Always verify the specific fitting required by your hose or component port against the 520429-4 specification before ordering.
| Genie Equipment Series | Specific Compatible Models (Examples) |
| Boom Lifts (Z/S Series) | Used in hydraulic circuits requiring pressure manifold splitting or return line combining. |
| Scissor Lifts (GS Series) | Found in various hydraulic valve and manifold systems. |
| Common Application | Creating a durable, sealed junction point for pressure testing ports, auxiliary functions, or combining return lines. |
🔹 Why Choose a Quality 48890GT Replacement?
- Circuit Reliability: Essential for ensuring correct hydraulic pressure distribution, which is critical for the proper functioning of lift controls.
- Corrosion Resistance: Durable construction designed to withstand exposure to hydraulic fluid and harsh operating environments.
- Guaranteed Compatibility: Manufactured precisely to the 520429-4 specification, ensuring a perfect mechanical and sealing match.
- Proactive Repair: Necessary component for repairing leaks or damages at critical junction points within the hydraulic system.
