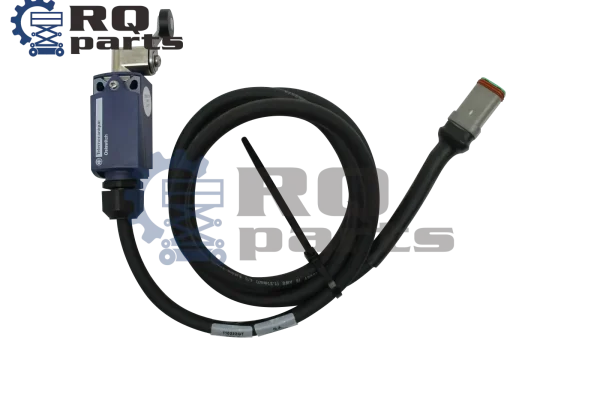

Harness 110232GT – LS3 OP Drive Enable Safety Loom

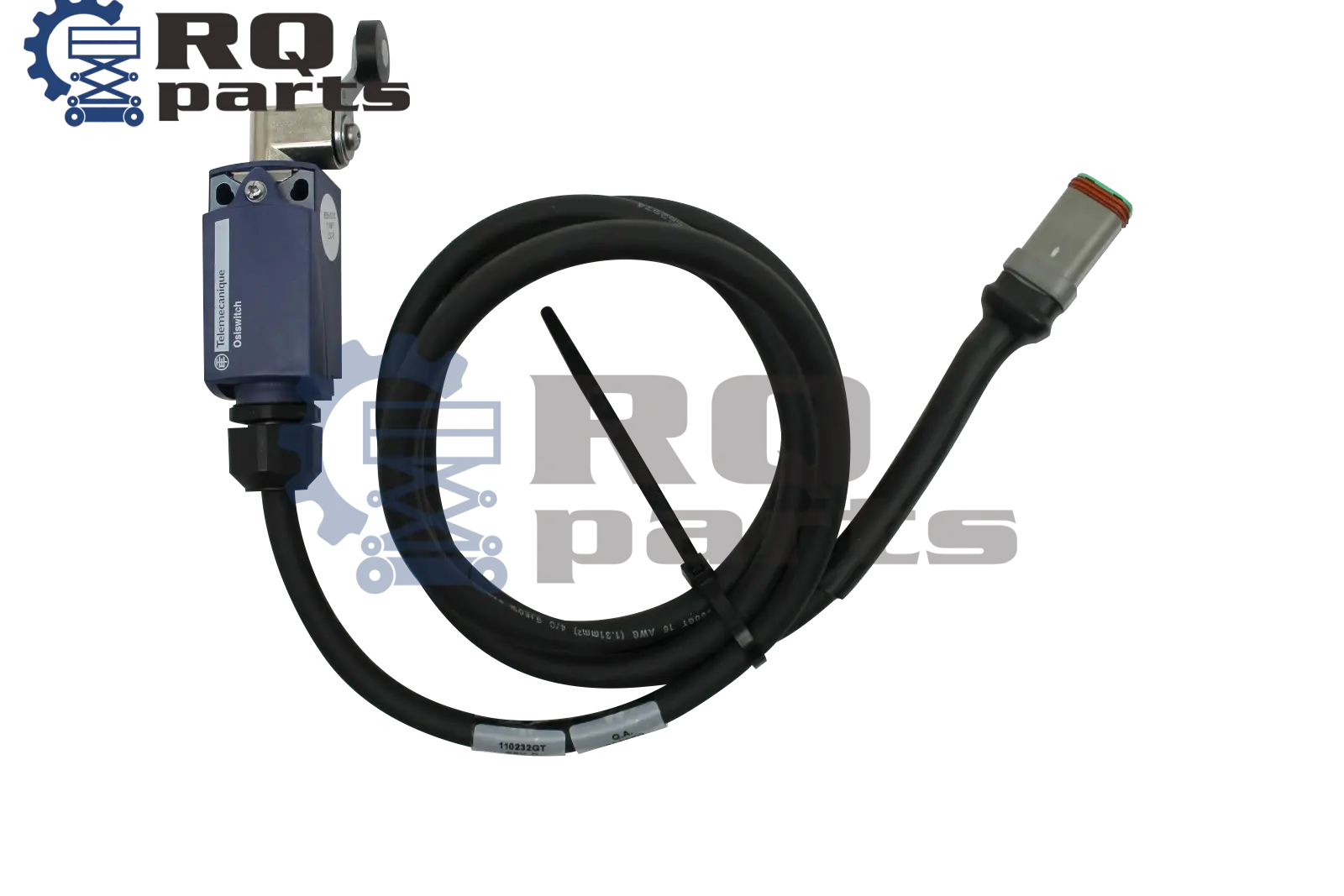

RQ Parts - Genie Harness 110232GT Electrical Loom for Drive Enable and Limit Switch 3 Safety Control System

🔹 Product Overview: Safety Interlock and Drive Control Circuitry

The Wiring Harness Assembly with part number 110232GT (and its predecessor 110232) is a highly specialized and safety-critical electrical component designed for the complex control and drive systems of various Genie Boom and Scissor Lifts.

The designation “HARNESS LS3 OP DRIVE ENABLE” identifies its multi-functional role: this loom connects the signals for a specific Limit Switch (LS3), an Operational Switch (OP), and the vital Drive Enable function. This harness manages the interlocks that ensure the machine is in a safe configuration (as confirmed by LS3 and OP) before the drive motors can be activated. This is fundamental to preventing unsafe movement or operation outside of certified parameters.

As a high-quality replacement supplied by RQ Parts, this 110232GT Harness offers an exact-fit solution to replace a damaged, corroded, or failing original loom. Failures in this harness directly impact safety and operational capability, often leading to machine lockout. Replacing it ensures reliable safety interlock signaling, accurate positional feedback, and restored operational drive functionality on your Genie equipment.

🔹 Key Features & Benefits

✅ Multi-Function Focus: Dedicated harness linking LS3, Operational, and Drive Enable safety circuits.

✅ Safety Interlock: Crucial for preventing unsafe operation by validating machine status before allowing driving.

✅ Signal Reliability: Ensures clean, dependable transmission of critical status signals to the main control unit.

✅ Direct OEM Cross-Reference: Exact match for Genie part numbers 110232GT and 110232.

🔹 Technical Details

Part Number: 110232GT (Also known as 110232) Condition: 100% new replacement Type: Wiring Harness Assembly / Electrical Loom Function: Connects switches and sensors related to a specific Limit Switch (LS3), Operating Switch, and the Drive Enable circuit. Compatibility: Genie Boom Lifts and/or Scissor Lifts (Applicable to various models. Verification via machine manual is required.) Warranty: 12 months against manufacturing defects

🔹 Compatible Genie Models & Applications

The Harness 110232GT is critical to the drive and safety control systems of various Genie Aerial Work Platforms.

Genie Equipment: Found on specific S-Series/Z-Series Boom Lifts or GS-Series Scissor Lifts that utilize this specific three-part safety interlock logic.
Common Application: Typically located within the chassis or turret assembly, linking critical positional sensors and operational switches to the drive logic controller.

Note: Always verify the full 110232GT part number against your machine’s model and serial number in the Genie service manual to ensure correct component replacement.

🔹 Why Choose RQ Parts?

Safety Circuit Expertise: We specialize in the complex, safety-critical harnesses that govern drive enablement and stability interlocks. Guaranteed Compatibility: Parts are verified to match the electrical and physical specifications of the OEM assembly. Competitive Pricing: High-quality replacement harnesses offered at cost-effective prices. Fast Global Delivery: Reliable logistics ensure minimal downtime, keeping your equipment compliant and safe.
