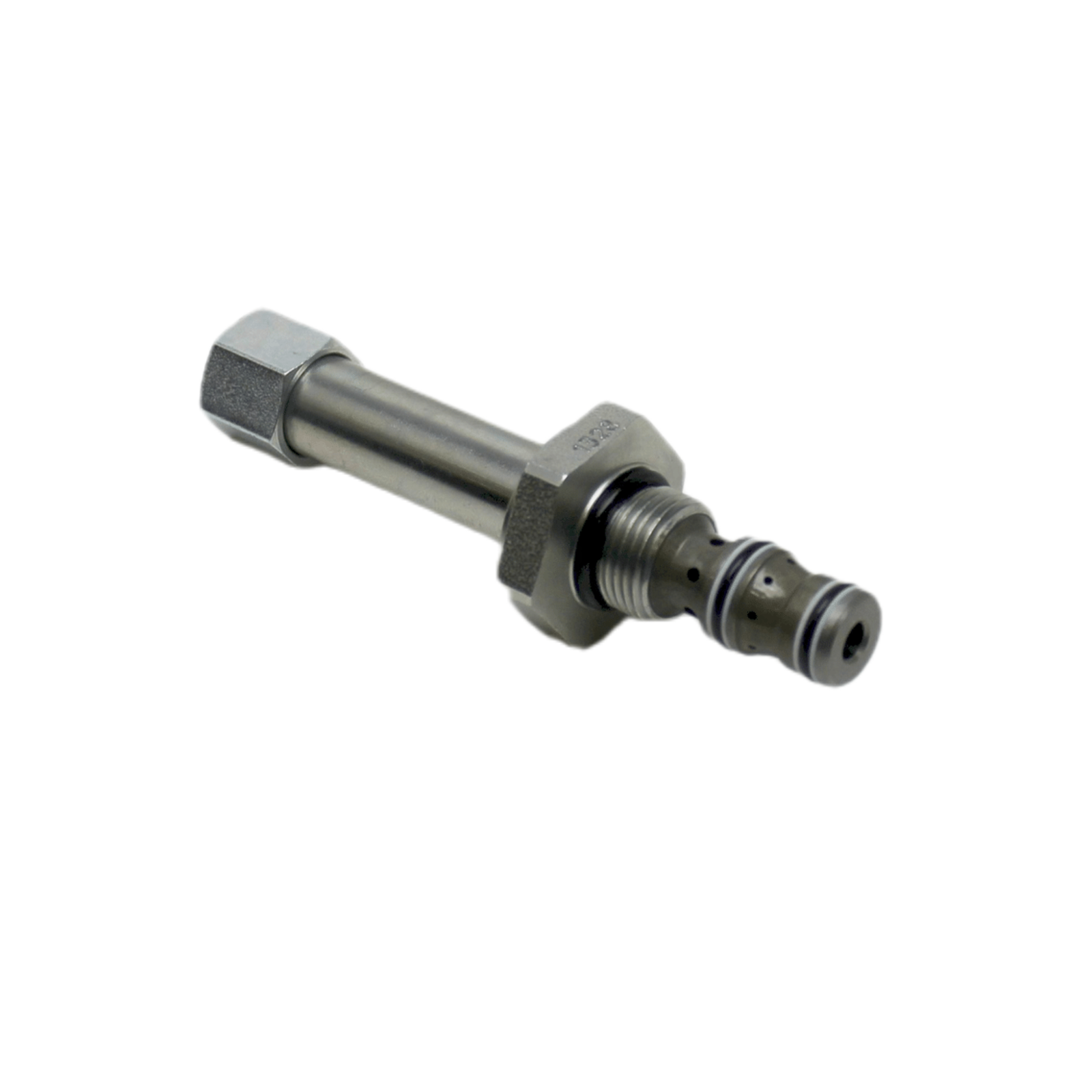

2-Way 3-Position Directional Valve 101056GT / 101056 (Hydraulic Control Valve) – Optimized Product Page Content
🔹 Product Overview
The 2-Way 3-Position Directional Valve with Genie part numbers 101056GT and 101056 is a crucial electro-hydraulic component used in the manifold block of specific Genie Articulating Boom Lifts (Z-Series). Although typically directional valves are 4-way for full bi-directional control, the specific 2-Way, 3-Position configuration of this valve indicates it is designed for a unique circuit requiring precise control over two ports and three positions (likely a common port blocked/flow A/flow B). This specific valve is essential for controlling a single, critical function, such as the Jib boom movement or a specialized auxiliary control circuit on the Z-Series lifts.
This valve is critical for the function it controls, offering a center/neutral position (Position 2) for holding and two active positions (Position 1 and 3) for extension and retraction (or similar bi-directional action). The part number 101056GT is the necessary replacement for addressing issues such as a failure of the function to move in one or both directions, the inability to hold position (drift), or erratic movement.
🔹 Key Features & Benefits
✅ 3-Position Control: Provides precise control over a function with a defined center/neutral holding position.
✅ Z-Series Fitment: Essential directional control valve for the hydraulic manifold of compatible Genie Z-45/25 Articulating Boom Lifts.
✅ Electro-Hydraulic Control: Electrically actuated by the machine’s control system for precision movement.
✅ Direct OEM Cross-Reference: High-quality aftermarket equivalent for Genie part numbers 101056GT and 101056.
🔹 Technical Details
| Detail | Specification |
| Part Number | 101056GT (Also known as 101056) |
| Condition | 100% new aftermarket replacement |
| Type | Hydraulic Solenoid Valve (Directional Control, Cartridge Style) |
| Configuration | 2-Way, 3-Position (2W3P) |
| Function | Electrically controls fluid flow for a cylinder or motor requiring a defined center-hold position. |
| Applicable System | Jib Control, Auxiliary Functions (Verify in manual). |
| Application Location | Screws into the main hydraulic manifold block. |
| Warranty | 12 months against manufacturing defects |
🔹 Compatible Genie Models & Applications
The 2-Way 3-Position Directional Valve 101056GT is a vital replacement part for the hydraulic manifold of the following Genie Articulating Boom Lifts:
| Genie Equipment Series | Specific Compatible Models |
| Z-Series (Articulating Boom) | Z-45/25, Z-45/25J |
Common Application: Crucial for allowing the machine’s electrical control system to activate and control core hydraulic functions, such as the jib movement, ensuring safe and precise positioning.
🔹 Why Choose RQ Parts?
Restore Precision Control: Guarantees reliable and precise hydraulic flow control, including the vital center-hold function for stability.
Reliable Actuation: Manufactured to ensure the solenoid and spool operate smoothly and reliably under system pressure.
High Quality: Direct replacement for seamless integration into the complex electro-hydraulic system.
Competitive Pricing: Cost-effective solution for replacing high-value, critical hydraulic components.
