JLG EC600SJP Electric Telescopic Boom Lift – 66ft Dual Capacity with Powered Rotation
Specifications
Description
JLG EC600SJP Telescopic Boom Lift – Optimized Product Page Content
🔹 Product Overview
The JLG EC600SJP is a high-performance Electric (DC) Telescopic (Straight) Boom Lift designed for applications requiring significant working height, long outreach, and ultra-precise platform positioning, all while operating with clean, quiet electric power.1 The “EC” denotes its Electric Crawler configuration (or high-performance electric drive), the “SJ” confirms it is a Straight Jib boom, and the “P” indicates Powered Platform Rotation. This lift is ideal for use on finished outdoor slabs, warehouses, and industrial facilities where zero emissions, reduced noise, and precise maneuverability at height are mandatory.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |

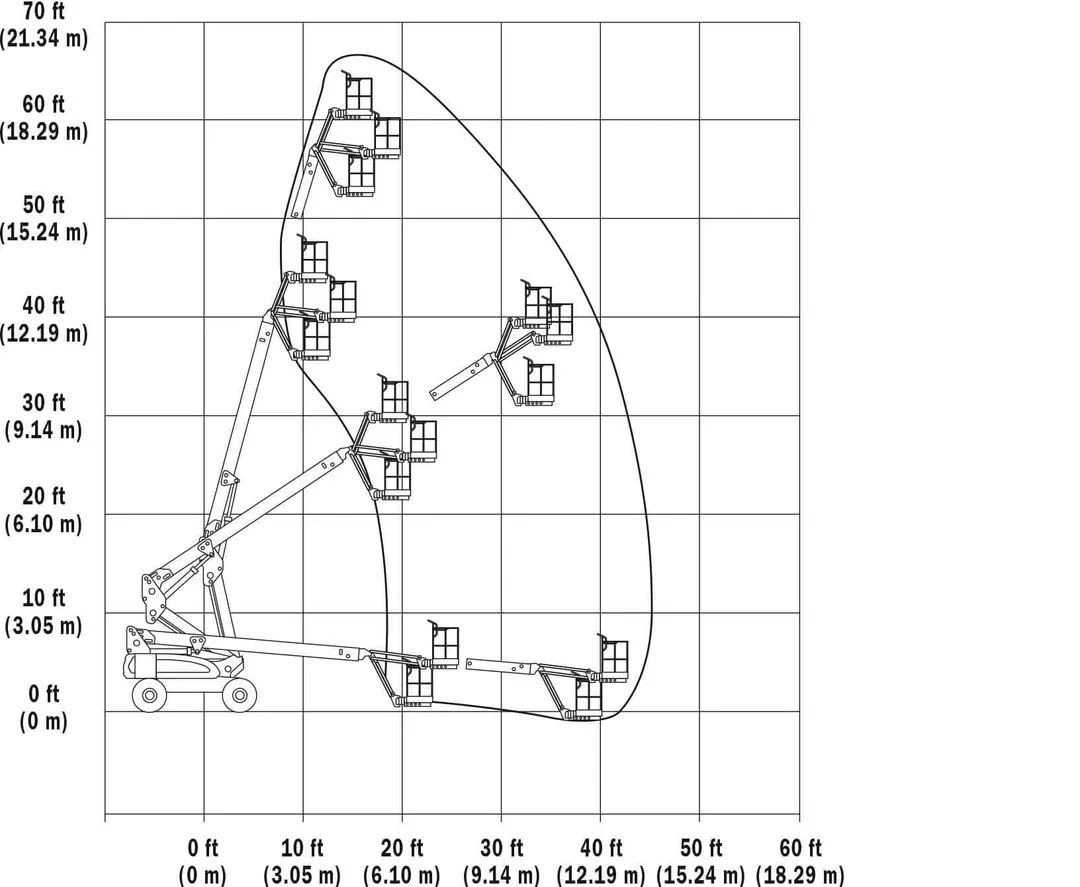

| Max Working Height | 66 ft | 20.39 m |
| Max Platform Height | 60 ft | 18.39 m |
| Max Horizontal Outreach | 50 ft | 15.24 m |
| Platform Capacity (Dual) | 1,000 / 600 lb | 454 / 272 kg |
| Jib Articulation | 160° Vertical | 160° Vertical |
| Drive System | DC Electric (4WD Available) | DC Electric (4WD Available) |
| Machine Width | 8 ft 2 in | 2.49 m |
| Machine Model | EC600SJP |
🔹 Key Features & Benefits
-
✅ Zero-Emission Electric Power: The DC electric system ensures quiet, clean, and fume-free operation, making it suitable for use indoors or in sensitive outdoor/urban environments.
-
✅ Powered Platform Rotation (“P”): Provides an extra axis of movement at the platform level, allowing the operator to finely adjust the platform angle for precise final positioning without moving the main boom.
-
✅ Telescopic Boom: Provides maximum horizontal outreach and quick time-to-height, maximizing job site efficiency.
-
✅ High Dual Capacity: Offers a standard dual envelope platform capacity of 1,000 lb (454 kg) (restricted) and 600 lb (272 kg) (unrestricted), allowing for more workers, tools, and materials.
-
✅ Jib for Precision: Includes a jib with 160° of vertical articulation for positioning around small obstacles.
-
✅ Oscillating Axle: Standard full-time oscillating axle provides enhanced traction and stability when navigating uneven slab surfaces or minor outdoor transitions.
🔹 Applications
-
Large Indoor Warehouse and Industrial Facility Maintenance requiring exact placement
-
Commercial Fit-Outs and Tenant Improvements on Slab
-
Exterior Façade Work in Low-Emission Urban Zones
-
Any application requiring high vertical and horizontal reach combined with clean electric power and platform precision.
