JLG E400AN Electric Articulating Boom Lift – 46ft Narrow
Specifications
Description
JLG E400AN Electric Articulating Boom Lift – Optimized Product Page Content
🔹 Product Overview

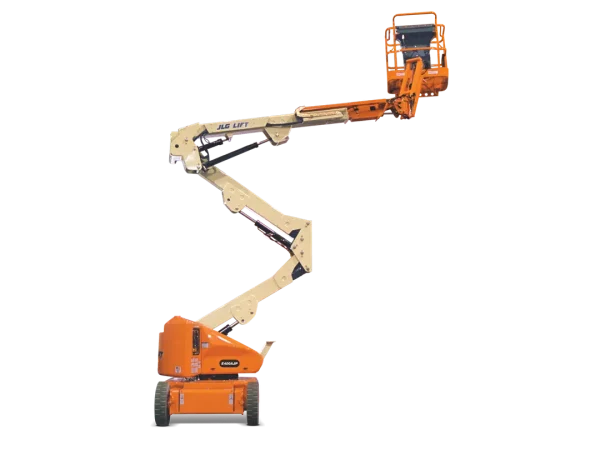

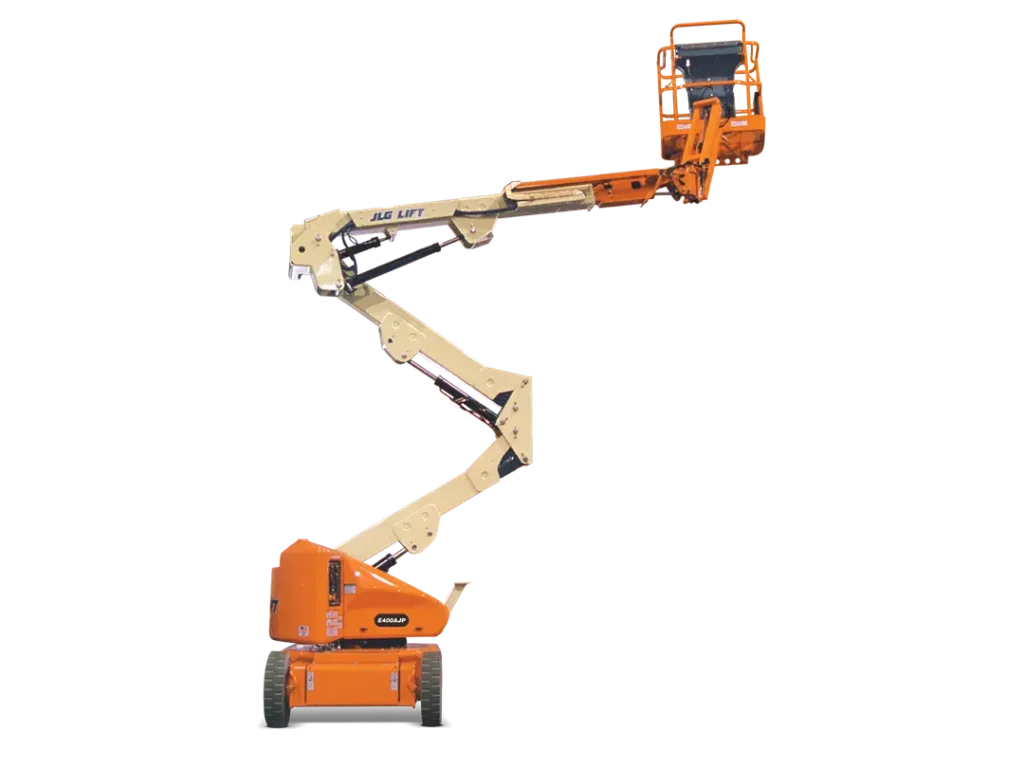

The JLG E400AN is a specialized, narrow electric articulated (Z-Boom) lift that provides enhanced working height and outreach while maintaining the ability to navigate confined indoor and slab spaces. The “E” denotes electric DC power (zero emissions, low noise), and the “AN” signifies the narrow chassis combined with an articulating boom (without a jib). The narrow chassis is engineered to pass through standard double doorways, and the articulating boom offers excellent up-and-over clearance, making it ideal for maintenance and installation in congested industrial and commercial facilities.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 46 ft 4 in | 14.12 m |
| Max Platform Height | 40 ft 4 in | 12.29 m |
| Max Horizontal Outreach | 22 ft 8 in | 6.91 m |
| Up and Over Clearance | 22 ft 8 in | 6.91 m |
| Platform Capacity | 500 lb | 227 kg |
| Machine Width (Narrow) | 4 ft 10 in | 1.47 m |
| Turntable Rotation | 355° Non-Continuous | 355° Non-Continuous |
| Power Source | 48V DC (Electric) | 48V DC (Electric) |
| Machine Model | E400AN |
🔹 Key Features & Benefits
-
✅ Narrow Chassis Design: With a width of just 4 ft 10 in (1.47 m), the E400AN is optimized to pass through standard double doorways and navigate tight, congested aisles.
-
✅ Zero-Emission Electric Power: The 48V DC electric system ensures quiet, clean, and fume-free operation, mandatory for use in sensitive indoor environments like hospitals and commercial spaces.
-
✅ Superior Up-and-Over Capability: The articulating boom design offers a class-leading up-and-over clearance, allowing operators to easily reach over machinery, ductwork, and fixed obstacles.
-
✅ Maneuverability: Features excellent drive and steering control for navigating tight industrial and commercial quarters.
-
✅ Automatic Traction Control (ATC): Provides enhanced stability and control when driving over minor uneven surfaces and transitions.
-
✅ Non-Marking Tires: Standard equipment to protect sensitive indoor flooring and slab surfaces.
🔹 Applications
-
Mid-Level Indoor Maintenance and System Installation (HVAC, Electrical, Piping)
-
Accessing Work Areas in Congested High-Bay Warehouses and Manufacturing Plants
-
Routine Maintenance and Cleaning in Atriums and Auditoriums
-
Commercial Fit-Outs and Tenant Improvements
-
Any task requiring zero-emission power and narrow access with high articulation.
