JLG E300AJP Electric Articulating Boom Lift – 35ft Narrow with JibPLUS
Specifications
Description
JLG E300AJP Electric Articulating Boom Lift – Optimized Product Page Content
🔹 Product Overview

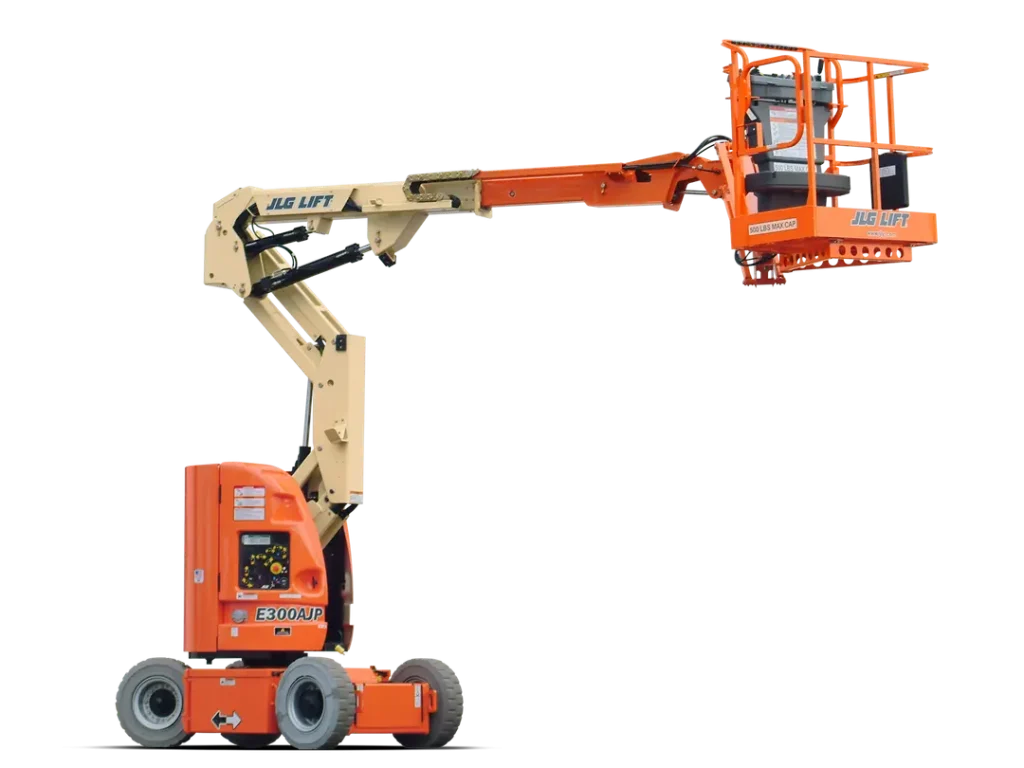

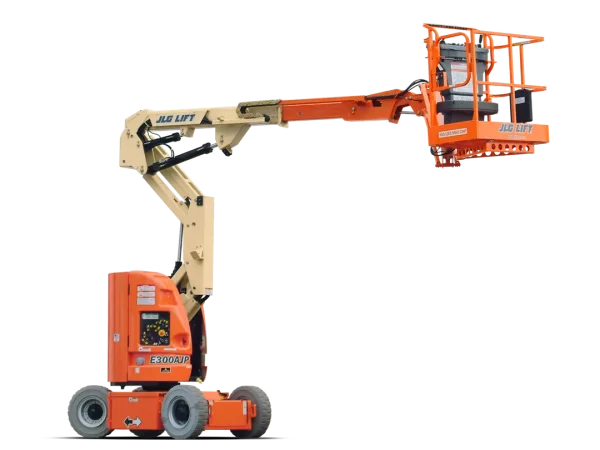

The JLG E300AJP is a compact, narrow electric articulated (Z-Boom) lift that provides superior “up-and-over” access and precise positioning in confined indoor spaces and slab areas.1 The “E” designation confirms its electric DC power, offering quiet, zero-emission operation, which is essential for sensitive environments. The “AJP” signifies the inclusion of the Articulating JibPLUS®, which provides an extended range of horizontal and vertical motion for navigating complex overhead obstacles.2 With its narrow 4 ft (1.22 m) width, the E300AJP is engineered for maneuverability through standard double doorways and congested aisles.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 35 ft 5 in | 10.97 m |
| Max Platform Height | 29 ft 5 in | 8.97 m |

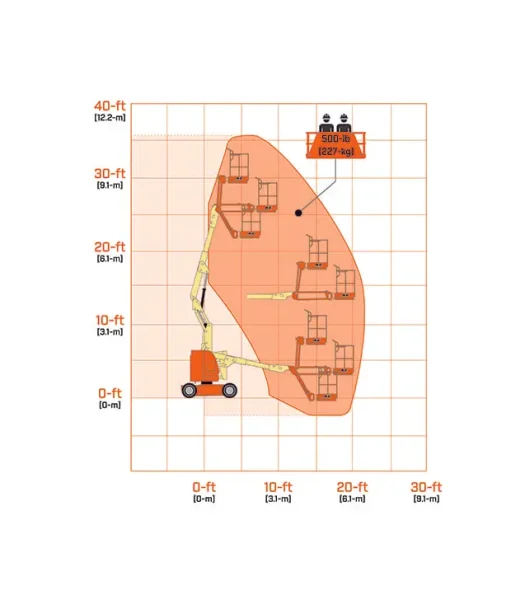

| Max Horizontal Outreach | 20 ft 1 in | 6.12 m |
| Up and Over Clearance | 13 ft 2 in | 4.01 m |
| Platform Capacity | 500 lb | 227 kg |
| Machine Width | 4 ft | 1.22 m |
| Jib Articulation | 144° Vertical / 180° Horizontal | 144° Vertical / 180° Horizontal |
| Power Source | 48V DC (Electric) | 48V DC (Electric) |
| Machine Model | E300AJP |
🔹 Key Features & Benefits
-
✅ Zero-Emission Electric Power: The 48V DC electric system ensures quiet, clean, and fume-free operation, making it ideal for schools, hospitals, retail, and commercial facilities.
-
✅ JibPLUS® for Precision: The articulating jib provides both 144° vertical articulation and 180° horizontal rotation, offering unrivaled control and access behind, over, or under difficult structures.
-
✅ Narrow Chassis Design: With a width of just 4 ft (1.22 m), the E300AJP can easily pass through standard double doorways and operate in tight, congested aisles.
-
✅ Superior Up-and-Over Capability: Articulating boom design offers excellent up-and-over clearance, allowing operators to easily reach over machinery, ductwork, and fixed obstacles.
-
✅ Automatic Traction Control (ATC): Provides enhanced maneuverability and stability when driving over minor uneven surfaces and transitions.
-
✅ Non-Marking Tires: Standard equipment to protect sensitive indoor flooring and slab surfaces.
🔹 Applications
-
Indoor Facility and Plant Maintenance (HVAC, Lighting, Piping)
-
Installation of Electrical and Mechanical Systems in Commercial Buildings
-
Routine Maintenance and Cleaning in Atriums and Auditoriums
-
Accessing Work Areas in Congested Warehouses and Manufacturing Plants1
-
Any task requiring zero-emission power and flexible articulation with a jib.1
