JLG 800S HC3 Telescopic Boom Lift – 86ft Diesel High Capacity 70ft Outreach
Specifications
Description
JLG 800S HC3 Telescopic Boom Lift – Optimized Product Page Content
🔹 Product Overview
The JLG 800S HC3 is a dominant, ultra-high-reach, heavy-duty Diesel Telescopic (Straight) Boom Lift designed for maximum capacity and speed on extreme outdoor job sites.1 The “800S” denotes the 80-foot class, straight (telescopic) boom, while the “HC3” (High Capacity, 3-rated) confirms the machine is engineered with JLG’s High Capacity system, offering a tri-rated platform capacity up to 1,000 lbs (454 kg).2 This lift is built for heavy structural steel, demanding building envelope work, and massive industrial projects that require an expansive working envelope and maximum lifting power at towering heights.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 86 ft | 26.38 m |
| Max Platform Height | 80 ft | 24.38 m |
| Max Horizontal Outreach | 69 ft 6 in | 21.18 m |

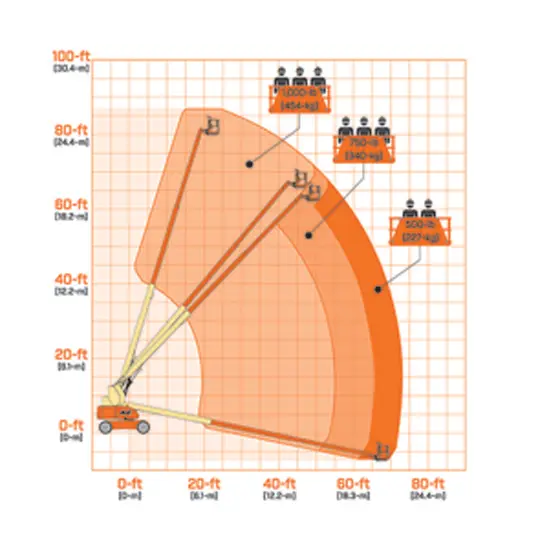

| Platform Capacity (Tri-Rated) | 1,000 / 750 / 600 lb | 454 / 340 / 272 kg |
| Drive System | Diesel/Hydraulic (4WD) | Diesel/Hydraulic (4WD) |
| Gradeability (4WD) | 45 % | 45 % |
| Machine Width | 8 ft 2 in | 2.49 m |
| Machine Model | 800S HC3 |
🔹 Key Features & Benefits
-
✅ High Capacity (HC3) System: Provides industry-leading tri-rated platform capacity up to 1,000 lb (454 kg), allowing for maximum personnel and heavy materials placement at significant height.
-
✅ Maximum Reach: Delivers a commanding 86 ft working height and a massive 69 ft 6 in (21.18 m) of horizontal outreach, maximizing the working envelope.
-
✅ Telescopic Boom: Provides fast time-to-height and long horizontal projection, maximizing job site efficiency.
-
✅ Rough Terrain Performance: Equipped with standard 4WD and a full-time oscillating axle, ensuring superior traction and stability for navigating slopes, mud, and uneven job sites.
-
✅ Efficient Control: Features the JLG Control System for smooth, responsive operation, even when handling heavy loads at maximum extension.
-
✅ Continuous Rotation: 360° continuous turntable rotation maximizes the work envelope.
🔹 Applications
-
High-Rise Structural Steel Erection and Heavy Component Installation
-
Building Envelope Installation (Cladding, Glazing) requiring heavy materials
-
Industrial Plant Maintenance and Repair on large structures
-
Utility and Electrical Work on Large, Unprepared Sites
-
Any outdoor task requiring maximum height, long horizontal outreach, and maximum capacity.
