JLG 800AJ Diesel Articulating Boom Lift – 86ft with Jib 4WD
Specifications
Description
JLG 800AJ Diesel Articulating Boom Lift – Optimized Product Page Content
🔹 Product Overview

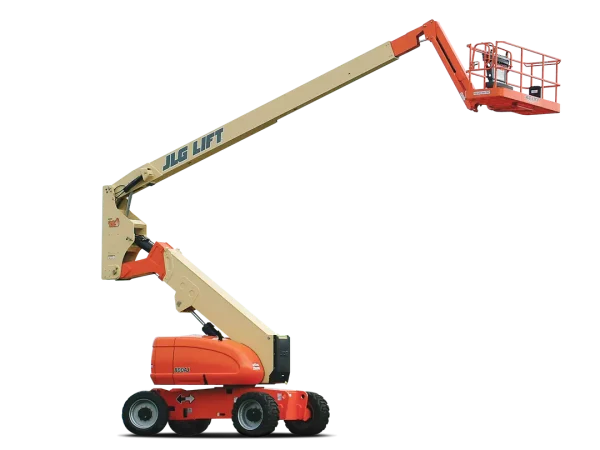

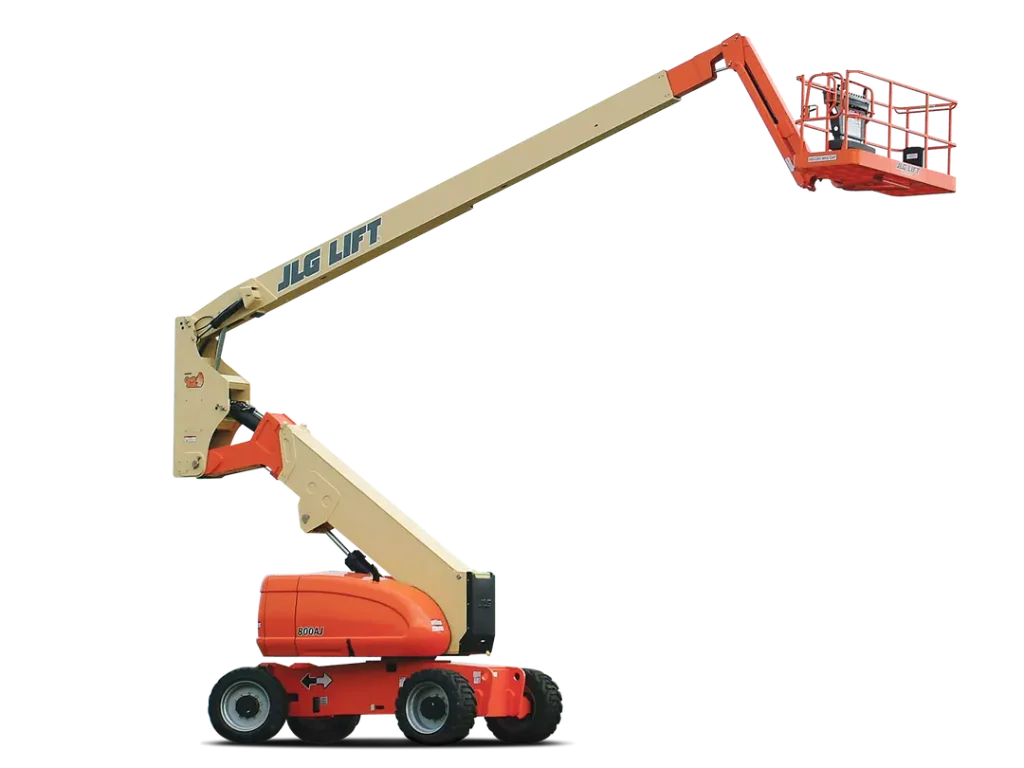

The JLG 800AJ is a powerful, high-reach Diesel Articulating (Z-Boom) Lift designed for extremely demanding outdoor construction and industrial sites.1 The “AJ” signifies the inclusion of an Articulating Jib, providing critical extra flexibility for “up, over, and around” access, allowing operators to bypass complex obstacles at height. This machine offers one of the largest working envelopes in the 80-foot class, combining massive vertical reach with substantial horizontal outreach.2 Featuring robust 4WD performance and a high-power diesel engine, the 800AJ is built for heavy maintenance, installation, and inspection tasks where height, long outreach, and superior terrainability are required.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 86 ft | 26.46 m |
| Max Platform Height | 80 ft | 24.46 m |

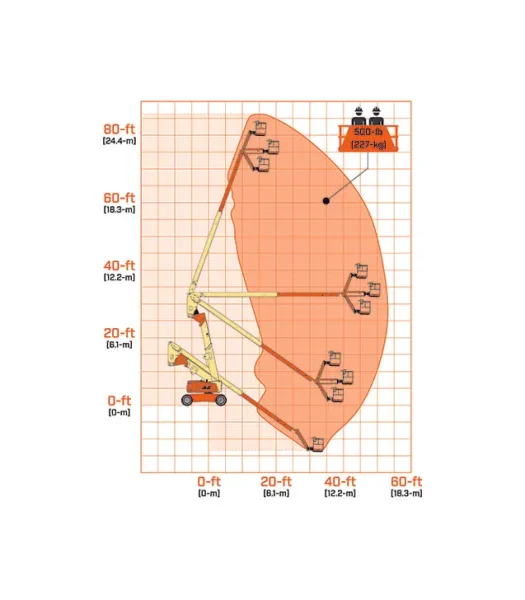

| Max Horizontal Outreach | 50 ft | 15.24 m |
| Up and Over Clearance | 32 ft | 9.75 m |
| Platform Capacity | 500 lb | 227 kg |
| Articulating Jib | 5 ft | 1.52 m |
| Gradeability (4WD) | 45 % | 45 % |
| Machine Model | 800AJ |
🔹 Key Features & Benefits
-
✅ Exceptional Working Envelope: Provides a commanding 86 ft working height and a substantial 50 ft of horizontal outreach, making it highly effective for high-level outdoor construction and industrial tasks.
-
✅ Articulating Jib (“AJ”): The 5 ft (1.52 m) jib provides an extra range of motion for precise platform positioning up, down, and around obstacles.
-
✅ Superior Up-and-Over Capability: Offers a dominant 32 ft (9.75 m) of up-and-over clearance, making it easy to access work areas situated above large fixed structures or equipment.
-
✅ Rough Terrain Performance: Equipped with standard 4WD and a full-time oscillating axle, ensuring superior traction and stability for navigating slopes, mud, and uneven job sites.
-
✅ Continuous Rotation: 360° continuous turntable rotation maximizes the work envelope and efficiency by reducing the need to reposition the machine.
-
✅ Reliable Power: Utilizes a powerful Tier 4 Final diesel engine for sustained, high-performance operation outdoors.
🔹 Applications
-
High-Rise Structural Steel Erection and Exterior Construction
-
Industrial Plant Maintenance and Heavy Component Installation
-
Bridge and Infrastructure Inspection and Maintenance
-
Utility and Electrical Work on Large, Unprepared Sites
-
Any outdoor task requiring maximum height, flexible articulation, and robust rough-terrain capability.
