JLG 600S HC3 Telescopic Boom Lift – 66ft Diesel High Capacity 50ft Outreach
Specifications
Description
JLG 600S HC3 Telescopic Boom Lift – Optimized Product Page Content
🔹 Product Overview

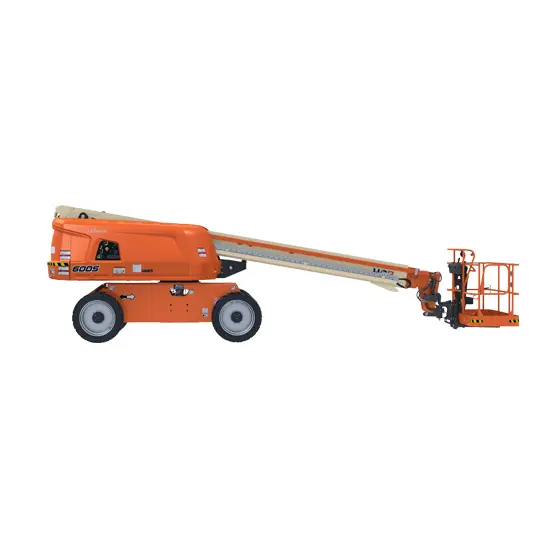

The JLG 600S HC3 is a high-performance, heavy-duty Diesel Telescopic (Straight) Boom Lift designed for maximum productivity and lifting power on outdoor rough terrain job sites.1 The “600S” denotes the 60-foot class, straight (telescopic) boom, while the “HC3” (High Capacity, 3-rated) confirms the machine is engineered with JLG’s High Capacity system, offering a tri-rated platform capacity up to 1,000 lbs (454 kg).2 This machine is built for structural steel, heavy component installation, and building envelope tasks that require high reach, long outreach, and extreme lifting capacity.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 66 ft | 20.18 m |
| Max Platform Height | 60 ft | 18.18 m |

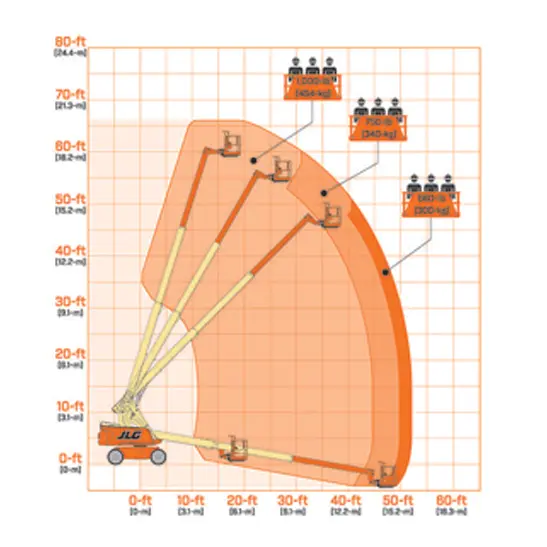

| Max Horizontal Outreach | 50 ft | 15.24 m |
| Platform Capacity (Tri-Rated) | 1,000 / 750 / 600 lb | 454 / 340 / 272 kg |
| Drive System | Diesel/Hydraulic (4WD) | Diesel/Hydraulic (4WD) |
| Gradeability (4WD) | 45 % | 45 % |
| Machine Width | 8 ft 2 in | 2.49 m |
| Machine Model | 600S HC3 |
🔹 Key Features & Benefits
-
✅ High Capacity (HC3) System: Provides industry-leading tri-rated platform capacity up to 1,000 lb (454 kg), allowing for maximum personnel and heavy materials placement at significant height.
-
✅ High Reach and Outreach: Delivers a substantial 66 ft working height and a massive 50 ft of horizontal outreach, maximizing the working envelope.
-
✅ Telescopic Boom: Provides fast time-to-height and long horizontal projection, maximizing job site efficiency.
-
✅ Rough Terrain Performance: Equipped with standard 4WD and a full-time oscillating axle, ensuring superior traction and stability for navigating slopes, mud, and uneven job sites.
-
✅ Efficient Control: Features the JLG Control System for smooth, responsive operation, even when handling heavy loads at maximum extension.
-
✅ Continuous Rotation: 360° continuous turntable rotation maximizes the work envelope.
🔹 Applications
-
Structural Steel Erection and Heavy Component Installation
-
Building Envelope Installation (Cladding, Glazing) requiring heavy materials
-
Industrial Plant Maintenance and Repair
-
Utility and Electrical Work on Unprepared Sites
-
Any outdoor task requiring long horizontal outreach and maximum capacity.
