Haulotte SIGMA 46 Electric Articulating Boom Lift – 52ft Height, 27ft Outreach
Specifications
Description
Haulotte SIGMA 46 Articulating Boom Lift – Optimized Product Page Content
🔹 Product Overview

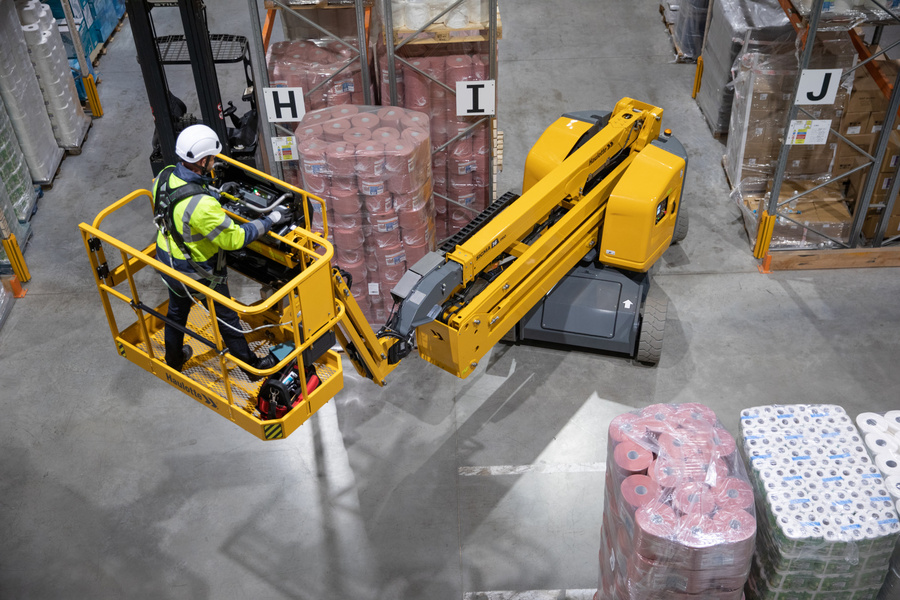

The Haulotte SIGMA 46 is a versatile Electric Articulating Boom Lift designed for both indoor and outdoor use on firm surfaces. It boasts one of the best working envelopes in its class, offering a working height of 52 ft 3 in and an impressive horizontal outreach of 27 ft 5 in, coupled with a high up and over clearance. Its electric AC motors and compact design (only 5 ft 9 in wide) provide zero-emission, agile performance. The SIGMA 46 is built for maximum efficiency with super-fast lift speeds and simultaneous movements, ideal for maintenance, finishing work, and industrial applications.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric (Approx.) |
| Working Height | 52 ft 3 in | 15.93 m |
| Platform Height | 46 ft 3 in | 14.10 m |
| Horizontal Outreach | 27 ft 5 in | 8.36 m |
| Up and Over Clearance | 24 ft 3 in | 7.39 m |
| Max. Lift Capacity | 500 lb (2 pers.) | 227 kg |
| Platform Size | 4 ft 9 in x 2 ft 7 in | 1.45 m x 0.79 m |
| Overall Width | 5 ft 9 in | 1.75 m |
| Height – Stowed | 6 ft 7 in | 2.01 m |
| Weight | 15,215 lb | 6,897 kg |
| Power Source | AC Motors, 48V Battery Pack | Electric |
| Drive System | 2 Wheel Drive, 2 Wheel Steer (2WD/2WS) | 2WD/2WS |
| Gradeability | 25 % | 25 % |
| Turning Radius – Outside | 12 ft 10 in | 3.91 m |
| Tailswing | 0 in (Zero Tailswing) | 0 in |
🔹 Key Features & Benefits
-
✅ Zero Tailswing & Agility: Featuring zero tailswing and a narrow width of 5 ft 9 in, the SIGMA 46 offers excellent maneuverability and a tight turning radius for operation in confined spaces.
-
✅ Maximized Productivity: Allows simultaneous movements (up to two at a time) and a rapid lifting speed for quick access to the work area.
-
✅ Optimized Working Envelope: Delivers the longest outreach and highest up and over clearance in its category, allowing access to the most difficult-to-reach zones.
-
✅ Energy Management: Includes Haulotte Activ’Energy Management (smart charger) to optimize battery performance and lifespan, alongside standard non-marking tires for clean operation.
-
✅ Safety & Diagnostics: Standard safety features include Haulotte Activ’Shield Bar 2.0 (anti-crushing system) and Haulotte Activ’Screen (onboard diagnostics) for easy maintenance and fault management.
🔹 Applications
-

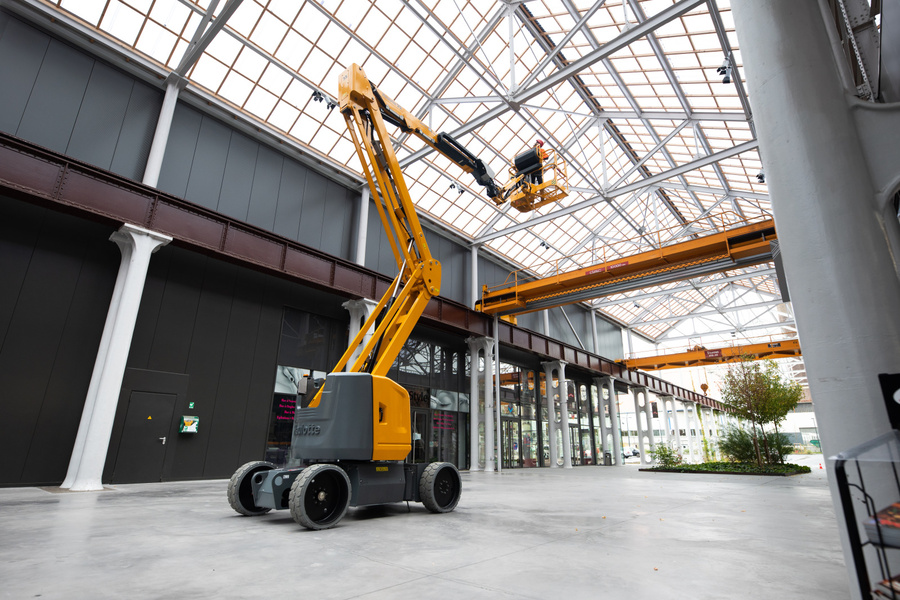

Industrial maintenance, warehouse tasks, and high-reach interior work where precise positioning and quiet, clean operation are mandatory.
-

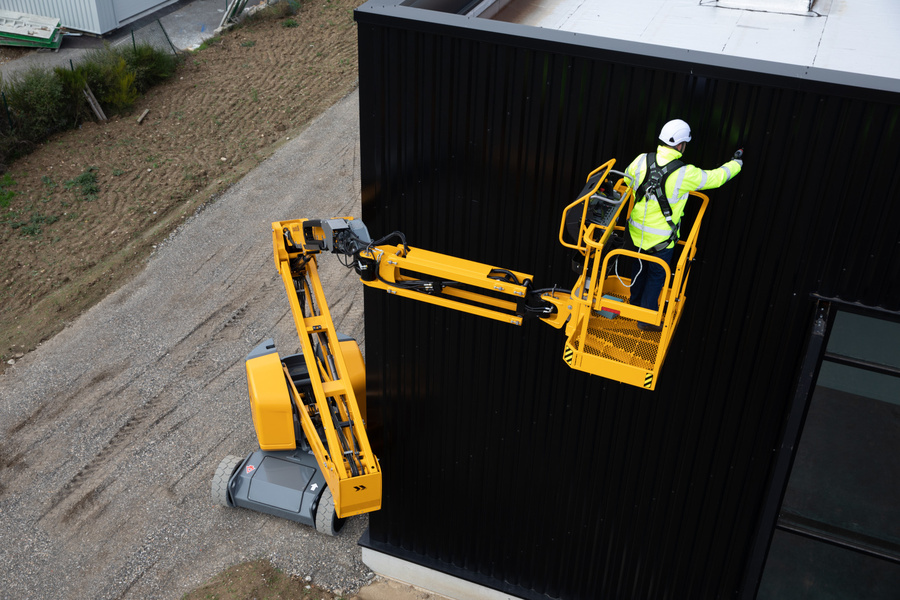

Finishing work and renovation projects on even ground, both indoors and outdoors.
-
Environments requiring a small footprint combined with a long horizontal reach, such as HVAC installation or overhead piping.
