Haulotte HT85 RTJ O Telescopic Boom Lift – 91ft Height, 78ft Outreach, 45% Grade
Specifications
Description
Haulotte HT85 RTJ O Telescopic Boom Lift – Optimized Product Page Content
🔹 Product Overview

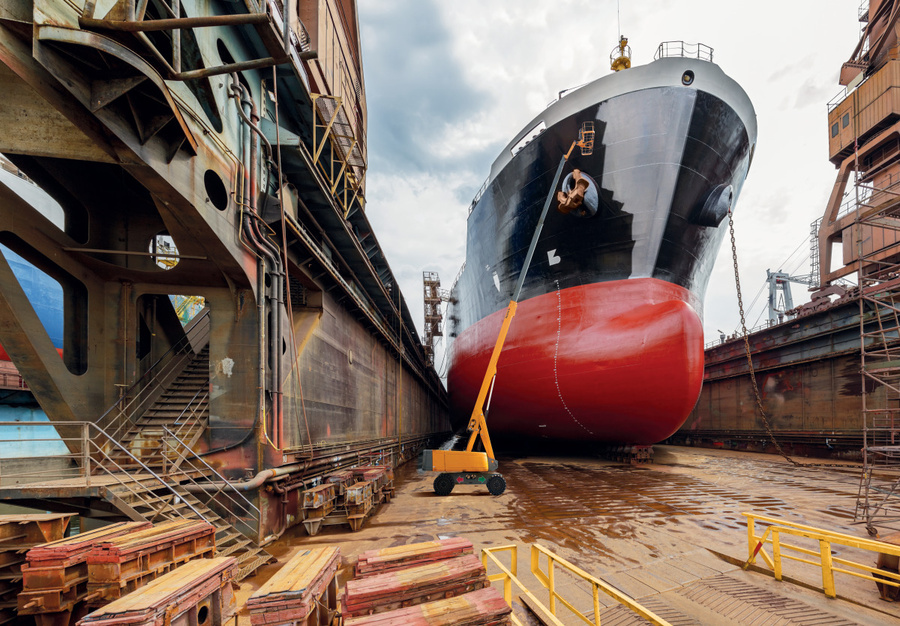

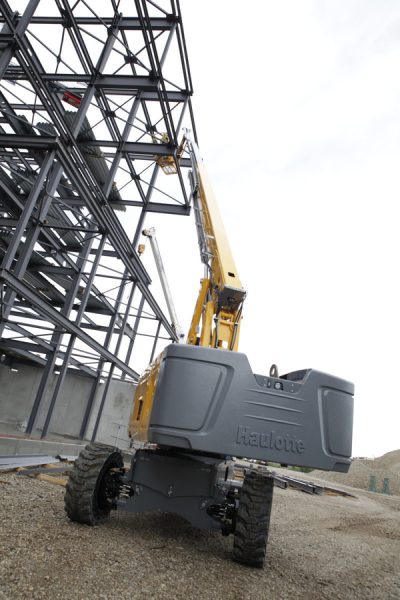

The Haulotte HT85 RTJ O is a high-performance Diesel-powered Rough Terrain Telescopic Boom Lift. It is built to achieve exceptional outreach and height for large construction, industrial, and infrastructure projects. It delivers a maximum working height of 91 ft and one of the industry’s best horizontal outreach measurements at 78 ft 3 in. The “O” model features 4-wheel drive (4WD) and 2-wheel steer (2WS), an oscillating axle, and a dual load capacity system, ensuring efficiency and excellent rough terrain capability.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric (Approx.) |
| Working Height | 91 ft | 27.74 m |
| Platform Height | 85 ft | 25.91 m |
| Horizontal Outreach | 78 ft 3 in | 23.85 m |
| Below Grade Reach | 9 ft 8 in | 2.95 m |
| Lift Capacity (Dual) | 500 lb / 770 lb | 227 kg / 350 kg |
| Platform Size | 8 ft x 3 ft | 2.44 m x 0.91 m |
| Overall Width | 8 ft 2 in | 2.49 m |
| Height – Stowed | 9 ft 4 in | 2.84 m |
| Weight | 39,500 lb | 17,917 kg |
| Power Source | Deutz Diesel 55.5 kW (74 hp), T4f | Diesel |
| Drive System | 4 Wheel Drive (4WD), 2 Wheel Steer (2WS) | 4WD/2WS |
| Gradeability | 45 % | 45 % |
| Ground Clearance | 19 in | 48.3 cm |
| Turning Radius – Outside | 21 ft 6 in | 6.55 m |
| Turret Swing | 360° Continuous | 360° Continuous |
🔹 Key Features & Benefits
-
✅ Superior Outreach: Provides one of the longest horizontal reaches in its class at 78 ft 3 in for tackling deep, remote access points.
-
✅ High Performance: Features Dual Load Capacity (500/770 lb) for increased efficiency and flexibility on the job site.
-

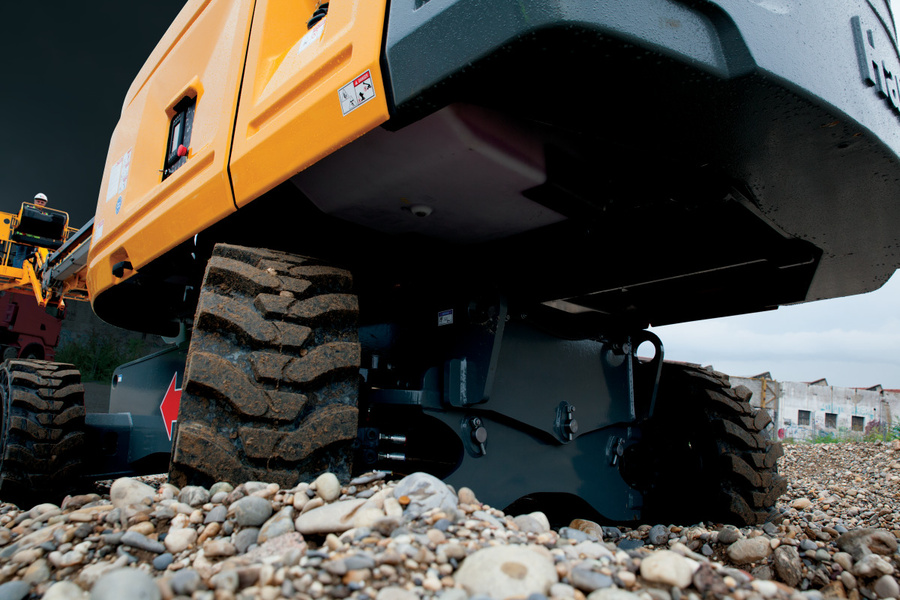

✅ Excellent Rough Terrain: Standard 4 Wheel Drive with an oscillating axle and automatic differential wheel lock ensures superior grip and a high 45% gradeability.
-
✅ Minimized Total Cost of Ownership: Includes the Haulotte Stop Emission System (automatically regulates engine runtime) and Haulotte Activ’Screen (onboard diagnostic system) to reduce fuel consumption, wear, and simplify maintenance.
-
✅ Safety: Optional availability of the Haulotte Activ’Shield Bar (anti-crushing system) and Haulotte Activ’Lighting System (standard on PRO model).
🔹 Applications
-
Infrastructure, bridge work, large-scale industrial construction, and telecommunications.
-
Projects that require maximizing outreach and height while maintaining a high platform capacity.
-
Demanding outdoor environments with uneven terrain and significant slopes.
