Haulotte HS5390 E Pro Electric Rough Terrain Scissor Lift – 58ft Height & Oscillating Axle
Specifications
Description
Haulotte HS5390 E Pro Electric Rough Terrain Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Haulotte HS5390 E Pro is the top-tier, fully electric, rough terrain Scissor Lift in the PULSEO range, delivering the highest reach and premium features in a zero-emission package. It achieves a towering working height of 58 ft 6 in and supports an immense platform capacity of 1,654 lb. As a “Pro” model, it features a standard front oscillating axle (6°) and dual platform extensions (19 ft 4 in extended length), ensuring superior ground adherence and maximum work space on the most challenging outdoor construction and industrial sites.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric (Approx.) |
| Working Height | 58 ft 6 in | 17.83 m |
| Platform Height | 52 ft 6 in | 16.00 m |
| Max. Lift Capacity | 1,654 lb (4 pers.) | 750 kg |
| Platform Length (Extended, Std) | 19 ft 4 in | 5.89 m |
| Overall Length (Stowed) | 14 ft 5 in | 4.39 m |
| Overall Width | 7 ft 7 in | 2.31 m |
| Height – Stowed (Guardrails Down) | 7 ft 9 in | 2.36 m |
| Weight | 17,746 lb | 8,050 kg |
| Drive System | Full Electric (AC Motors), 4WD | Electric, 4WD |
| Gradeability | 40 % | 40 % |
| Ground Clearance | 13 in | 33 cm |
| Machine Model | HS5390 E Pro (PULSEO) |
🔹 Key Features & Benefits
-

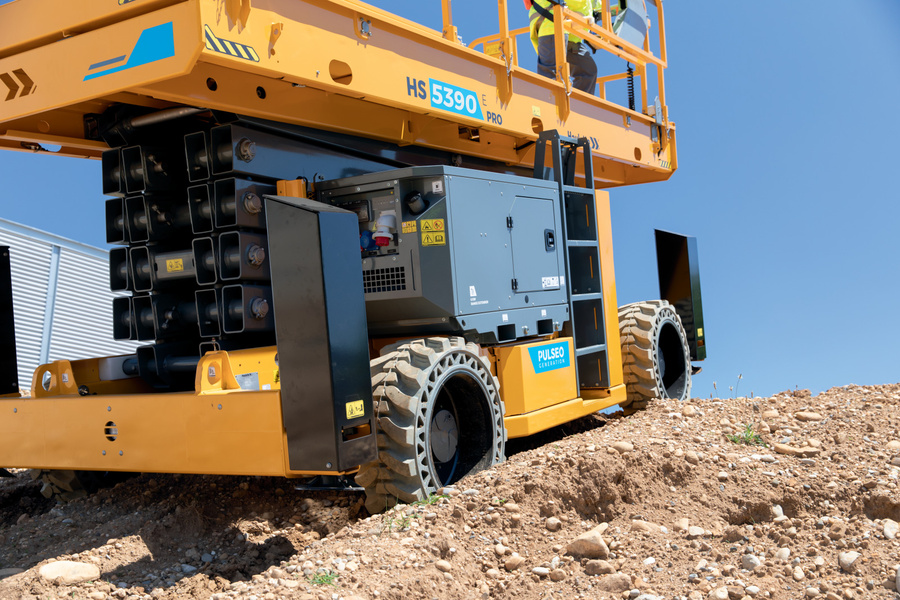

✅ Premium Rough Terrain Mobility (PRO): Standard front oscillating axle (6°), permanent 4WD, and a manual locking differential ensure maximum ground adherence and traction on slopes up to 40%.
-
✅ Maximum Electric Reach & Capacity: Delivers nearly 59 ft of working height and a substantial 1,654 lb lift capacity with zero noise and zero emissions.
-
✅ Massive Work Area (PRO): Comes standard with dual platform extensions, achieving an unparalleled extended platform length of 19 ft 4 in. An optional XL platform extends to 24 ft 7 in.
-
✅ Safety and Stability: Standard hydraulic outriggers with centralized or individual controls provide quick and stable leveling. Features Haulotte Activ’Lighting System for safety in low-visibility conditions.
-

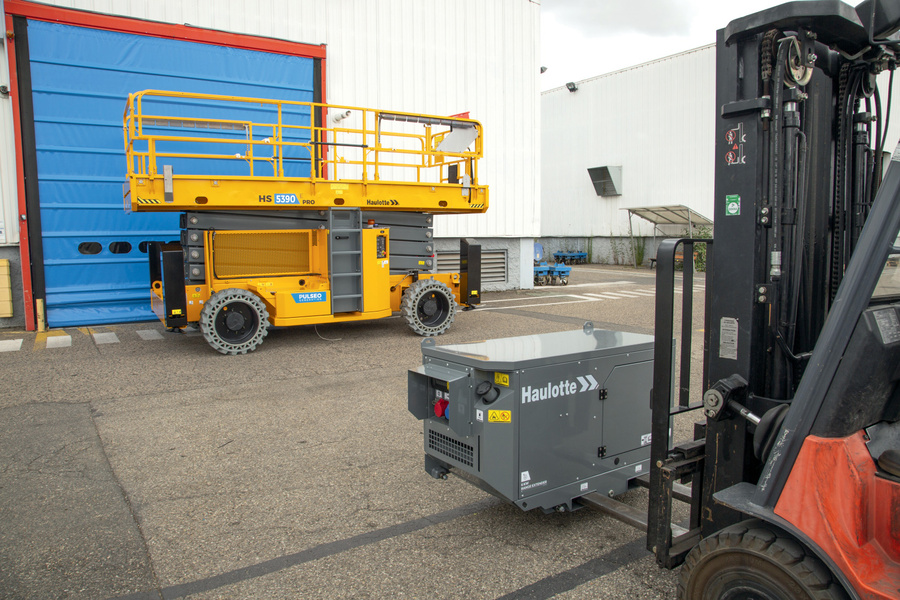

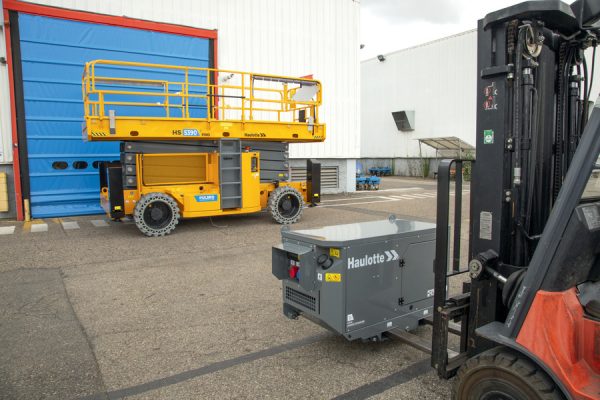

✅ Optimized Uptime: Haulotte Activ’Energy Management preserves battery life, and the optional Range Extender (5.2 kW) provides hybrid capability for non-stop work on multi-day projects.
-
✅ Ease of Maintenance: On-board diagnostic tools (Activ’Screen) and easy access to components minimize downtime.
🔹 Applications
-
Large-scale, high-rise structural, cladding, and industrial construction on difficult outdoor sites.
-
Maintenance and installation requiring extremely high reach, heavy lifting, and a huge work platform.
-
Sensitive environments (e.g., city centers, restricted zones) that require high performance without diesel engine noise or emissions.
