Haulotte HS5390 E Electric Rough Terrain Scissor Lift – 58ft Height & 1654lb Capacity
Specifications
Description
Haulotte HS5390 E Electric Rough Terrain Scissor Lift – Optimized Product Page Content
🔹 Product Overview

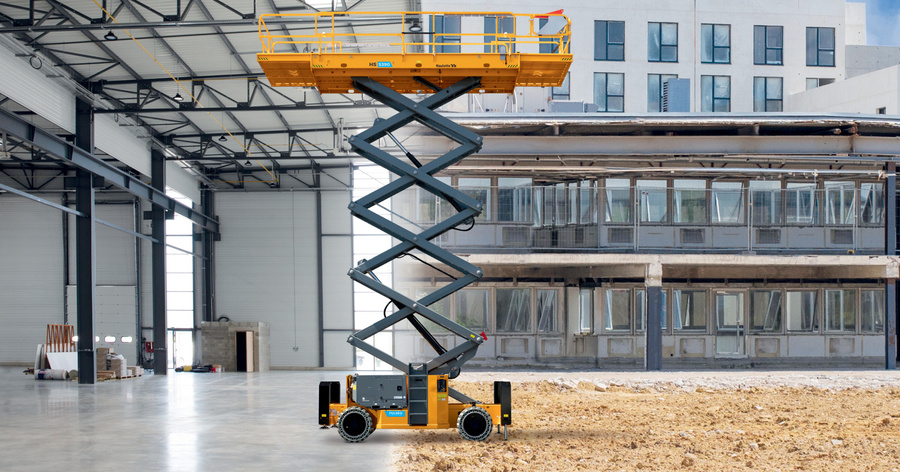

The Haulotte HS5390 E is a high-reaching model in the fully electric PULSEO range of rough terrain Scissor Lifts. It combines the zero-emission, silent operation of an electric lift with the robust performance of a diesel machine, making it suitable for all construction phases, indoors and out. This lift delivers a remarkable working height of 58 ft 6 in and maintains an immense platform capacity of 1,654 lb. Standard features include 4-wheel drive (4WD), a manual locking differential for enhanced traction, and hydraulic outriggers for secure operation on challenging, uneven ground.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric (Approx.) |
| Working Height | 58 ft 6 in | 17.83 m |
| Platform Height | 52 ft 6 in | 16.00 m |
| Max. Lift Capacity | 1,654 lb (4 pers.) | 750 kg |
| Platform Length (Extended, Std) | 16 ft 1 in | 4.90 m |
| Overall Length (Stowed) | 14 ft 5 in | 4.39 m |
| Overall Width | 7 ft 7 in | 2.31 m |
| Height – Stowed (Guardrails Down) | 7 ft 9 in | 2.36 m |
| Weight | 17,746 lb | 8,050 kg |
| Drive System | Full Electric (AC Motors), 4WD | Electric, 4WD |
| Gradeability | 40 % | 40 % |
| Ground Clearance | 13 in | 33 cm |
| Machine Model | HS5390 E (PULSEO) |
🔹 Key Features & Benefits
-
✅ High-Performance Electric: Provides quiet, clean, and proportional movements with the same drive performance as a combustion engine lift, suitable for restricted indoor or noise-sensitive outdoor sites.
-
✅ Maximum Electric Reach: Offers a working height of nearly 59 ft, making it one of the tallest fully electric rough terrain scissor lifts available.
-
✅ Extreme Capacity: Maintains a high platform capacity of 1,654 lb (4 people), ideal for lifting heavy materials alongside a full crew.
-

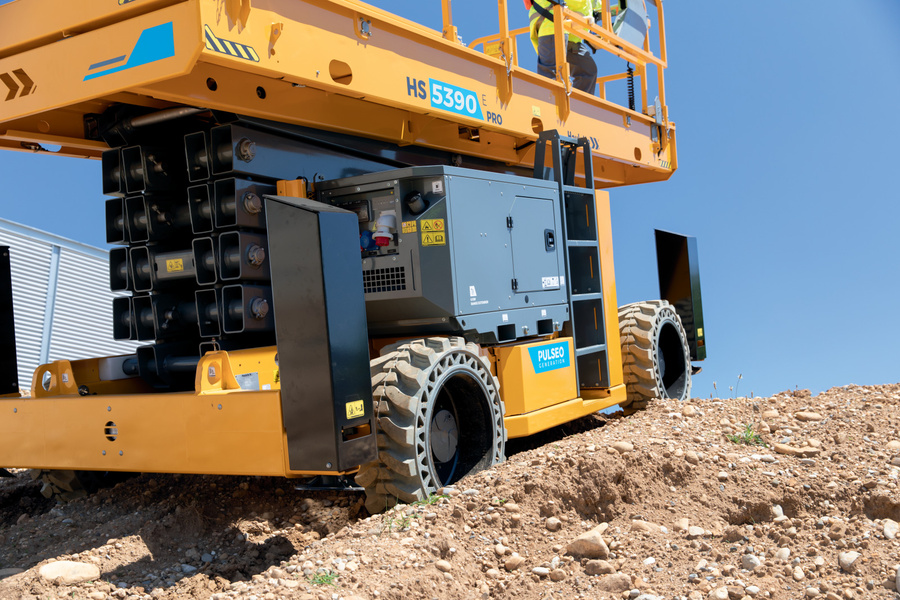

✅ Rough Terrain Mobility: Equipped with 4WD, a manual locking differential, and 13 inches of ground clearance, enabling excellent traction and a 40% gradeability on tough sites.
-
✅ Standard Stability: Features hydraulic outriggers with centralized or individual controls for quick setup and stability on highly uneven or sloped terrain.
-
✅ Productivity & Uptime: Includes Haulotte Activ’Energy Management for optimal battery health, and an optional Range Extender for extended duty cycles. The platform can optionally be extended up to 24 ft 7 in.
🔹 Applications
-
Large-scale construction requiring high vertical reach on unpaved or rough outdoor surfaces.
-

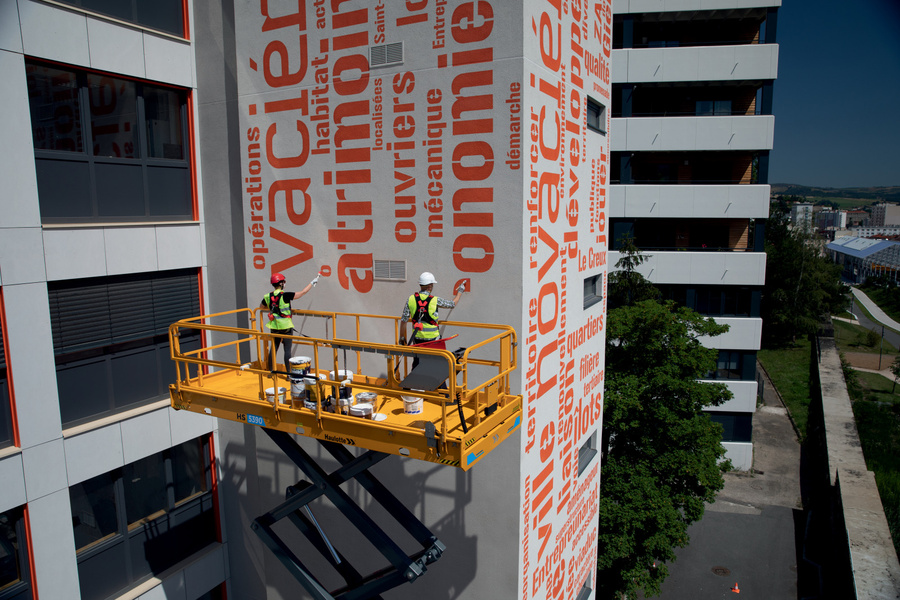

Heavy-duty industrial installation, façade, and steel erection work.
-
Applications where high reach, high capacity, and a zero-emission footprint are all necessary.
