Haulotte HS4390 E Pro Electric Rough Terrain Scissor Lift – 48ft Height & Oscillating Axle
Specifications
Description
Haulotte HS4390 E Pro Electric Rough Terrain Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Haulotte HS4390 E Pro is a premium model in the PULSEO range, representing a new generation of fully electric, rough terrain Scissor Lifts. It offers the highest level of performance, capacity, and durability in a zero-emission package, ideal for construction and industrial work, indoors and out. It provides an exceptional working height of 48 ft 8 in and an immense capacity of 1,654 lb. Key “Pro” features include a standard front oscillating axle for superior ground adherence, dual platform extensions for a huge work area, 4-wheel drive (4WD), and standard outriggers for maximum stability on slopes.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric (Approx.) |
| Working Height | 48 ft 8 in | 14.83 m |
| Platform Height | 42 ft 8 in | 13.00 m |
| Max. Lift Capacity | 1,654 lb (4 pers.) | 750 kg |
| Platform Length (Extended, Std) | 19 ft 4 in | 5.89 m |
| Overall Length (Stowed) | 14 ft 5 in | 4.39 m |
| Overall Width | 7 ft 7 in | 2.31 m |
| Height – Stowed (Guardrails Down) | 7 ft 5 in | 2.26 m |
| Weight | 16,577 lb | 7,520 kg |
| Drive System | Full Electric (AC Motors), 4WD | Electric, 4WD |
| Gradeability | 45 % | 45 % |
| Ground Clearance | 13 in | 33 cm |
| Machine Model | HS4390 E Pro (PULSEO) |
🔹 Key Features & Benefits
-
✅ High-Performance Electric: Provides the power and rough terrain capability of a diesel lift with silent operation and zero emissions, making it ideal for restricted zones and all phases of construction.
-
✅ Superior Off-Road Traction (PRO): Features a standard front oscillating axle (6°) in addition to 4WD and a manual locking differential, maximizing ground adherence and mobility on challenging slopes.
-
✅ Extreme Capacity & Reach: Achieves a nearly 49 ft working height with an industry-leading 1,654 lb capacity.
-
✅ Massive Work Platform (PRO): Comes standard with dual platform extensions, achieving an extended length of 19 ft 4 in. An optional XL platform extends up to 24 ft 7 in.
-
✅ Safety & Stability: Standard hydraulic outriggers with centralized or individual controls ensure safe operation and leveling on uneven ground, and features the Haulotte Activ’Lighting System for low-visibility loading.
-

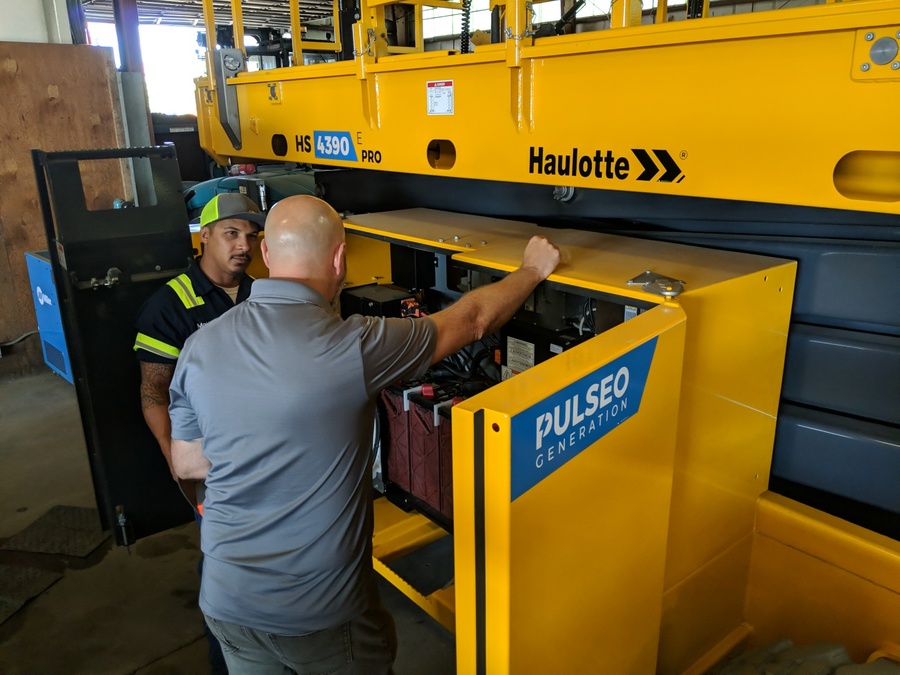

✅ Optimized Energy: Haulotte Activ’Energy Management ensures battery health, and an optional Range Extender (5.2 kW) is available for continuous operation without requiring external charging.
🔹 Applications
-

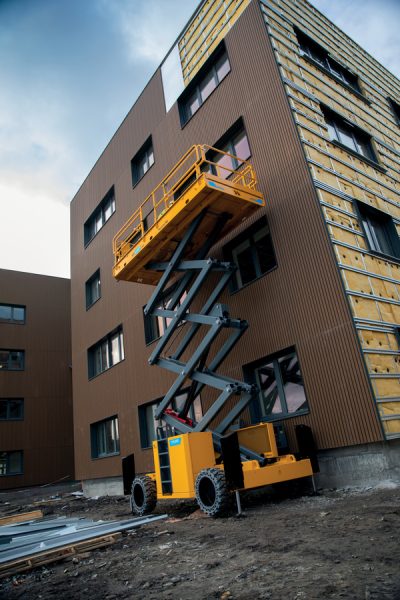

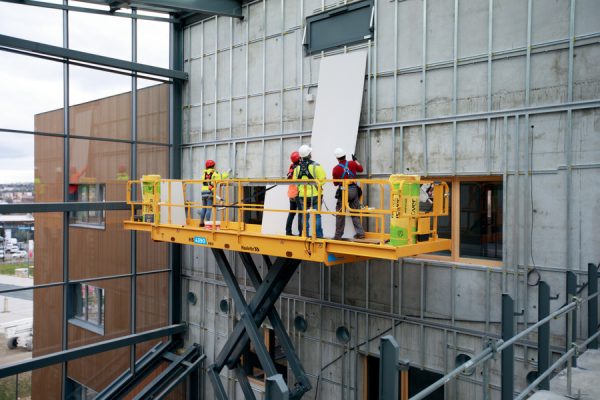

High-demand structural, masonry, cladding, and industrial construction projects.
-
Sites requiring both extreme platform capacity/size and superior all-terrain capability.
-

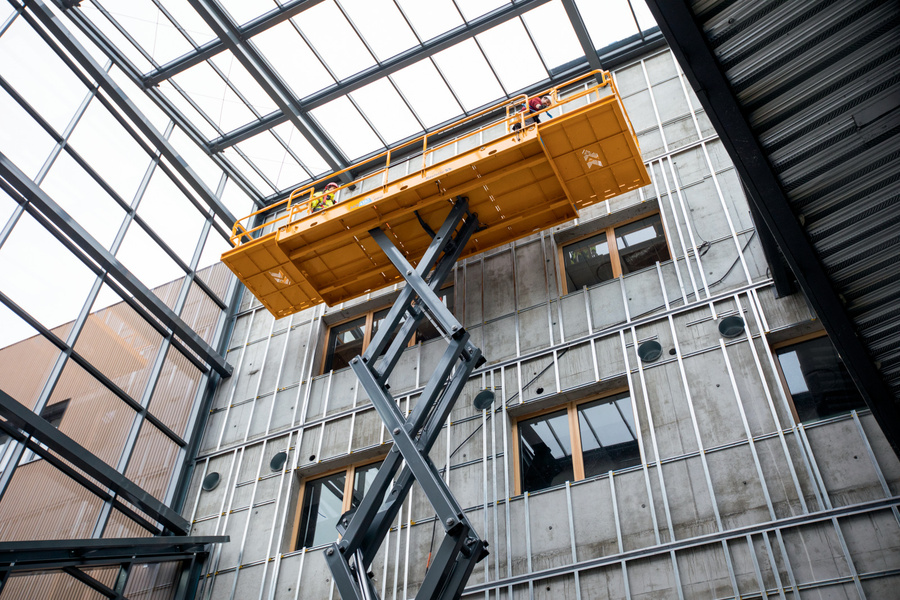

Indoor/outdoor work where noise and emission restrictions are strict, such as stadiums or sensitive facility maintenance.
