Haulotte HA80 RTJ PRO Diesel Articulating Boom Lift – 86ft Height, 4WS, Safety
Specifications
Description
Haulotte HA80 RTJ PRO Articulating Boom Lift – Optimized Product Page Content
🔹 Product Overview
The Haulotte HA80 RTJ PRO is the top-tier Diesel-powered Rough Terrain Articulating Boom Lift, engineered for maximum safety, productivity, and maneuverability on the most demanding high-reach construction sites. It provides a superb working height of 86 ft 1 in and a horizontal outreach of 57 ft 5 in. The PRO model includes 4-wheel steering (4WS), Haulotte Activ’Shield Bar 2.0, and Activ’Lighting System as standard equipment, making it the most technologically advanced and versatile machine in its class.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric (Approx.) |
| Working Height | 86 ft 1 in | 26.24 m |
| Platform Height | 80 ft 1 in | 24.41 m |
| Horizontal Outreach | 57 ft 5 in | 17.50 m |
| Up and Over Clearance | 30 ft 6 in | 9.30 m |
| Lift Capacity (Unrestricted) | 550 lb (2 pers.) | 250 kg |
| Optional Lift Capacity (Dual Load) | 770 lb | 350 kg |
| Platform Size | 8 ft x 3 ft | 2.44 m x 0.91 m |
| Overall Width | 8 ft 2 in | 2.49 m |
| Height – Stowed | 9 ft 9 in | 2.97 m |
| Weight | 34,100 lb | 15,468 kg |
| Power Source | Kubota Diesel 48.6kW (66hp), T4f | Diesel |
| Drive System | 4 Wheel Drive (4WD), 4 Wheel Steer (4WS) | 4WD/4WS |
| Gradeability | 45 % | 45 % |
| Ground Clearance | 19 in | 48.3 cm |
| Turning Radius – Outside | 21 ft 6 in | 6.55 m |
| Turntable Rotation | 360° Continuous | 360° Continuous |
🔹 Key Features & Benefits (PRO Model Standard)
-
✅ Enhanced Maneuverability: Standard 4-wheel steering (4WS) and a front oscillating axle deliver superior agility and stability on rough or uneven terrain, complemented by automatic differential wheel lock.
-

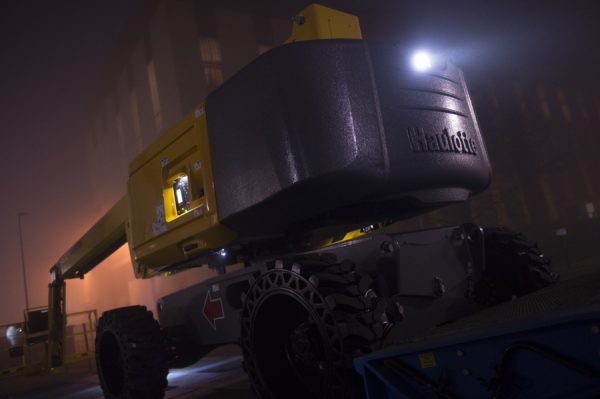

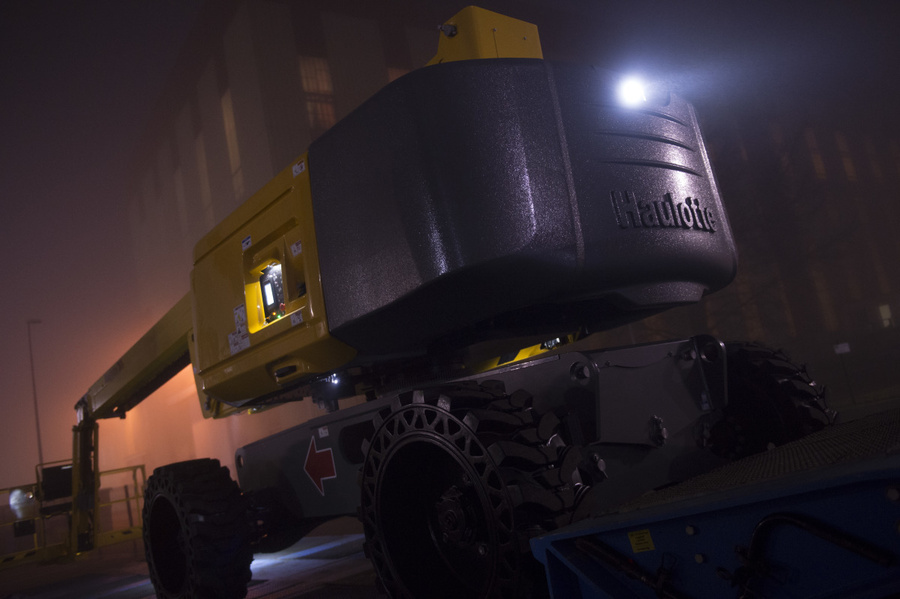

✅ Safety Standard: Includes the Haulotte Activ’Shield Bar 2.0 (anti-crushing system) and the Haulotte Activ’Lighting System (for safe loading/unloading) as standard, prioritizing operator protection.
-
✅ High Productivity: 360° continuous turret rotation and four simultaneous movements allow fast, precise positioning. Features Haulotte Extra Reach for a dual load capacity (up to 770 lbs restricted).
-

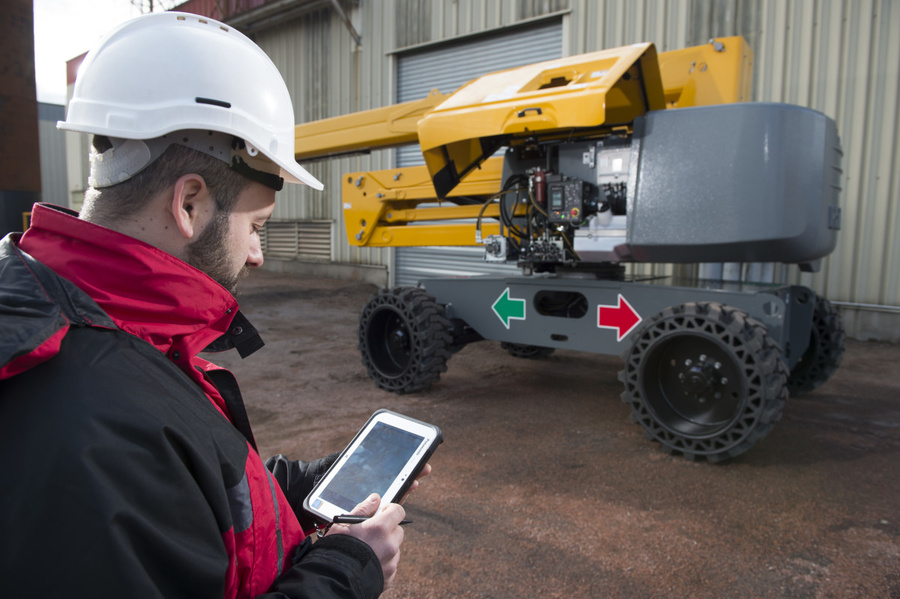

✅ Optimized Cost of Ownership: The Haulotte Stop Emission System minimizes unnecessary engine running, reducing fuel consumption and wear. Haulotte Activ’Screen provides advanced onboard diagnostics.
-
✅ Robust Performance: Powered by a Kubota Tier 4 final diesel engine, offering high performance and a 45% gradeability.
🔹 Applications
-
Large-scale commercial and industrial construction, structural erection, and maintenance where high vertical/horizontal reach is critical.
-
Complex rough-terrain environments requiring best-in-class maneuverability and safety systems.
-
Sites that benefit from the combination of high capacity, long reach, and advanced operator features.
