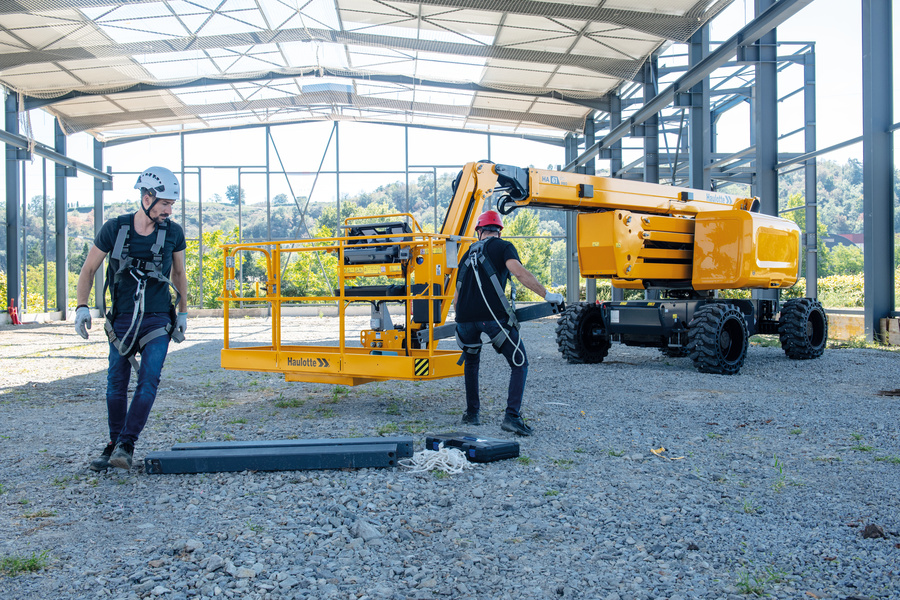

Haulotte HA61 RTJ PRO Diesel Articulating Boom Lift – 66ft Height, 4WS, 360° Cont
Specifications
Description
Haulotte HA61 RTJ PRO Articulating Boom Lift – Optimized Product Page Content
🔹 Product Overview
The Haulotte HA61 RTJ PRO is a premium Diesel-powered Rough Terrain Articulating Boom Lift designed for maximum productivity and safety on demanding outdoor construction sites. It delivers an exceptional working height of 66 ft 8 in and a long horizontal outreach of 39 ft. The PRO designation includes advanced features like 4-wheel steering (4WS), 360° continuous rotation, and the Haulotte Activ’Shield Bar as standard, providing optimized performance, maneuverability, and safety.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric (Approx.) |
| Working Height | 66 ft 8 in | 20.32 m |
| Platform Height | 60 ft 8 in | 18.49 m |
| Horizontal Outreach | 39 ft | 11.89 m |
| Up and Over Clearance | 27 ft 11 in | 8.51 m |
| Lift Capacity (Unrestricted) | 550 lb | 250 kg |
| Lift Capacity (Restricted) | 770 lb | 350 kg |
| Platform Size | 8 ft x 3 ft | 2.44 m x 0.91 m |
| Overall Width | 8 ft | 2.44 m |
| Height – Stowed | 8 ft 1 in | 2.46 m |
| Weight | 20,790 lbs | 9,430 kg |
| Power Source | Kubota Diesel (TIER 4 final, Stage V) 18.5 kW | Diesel |
| Drive System | 4 Wheel Drive (4WD), 4 Wheel Steer (4WS) | 4WD/4WS |
| Gradeability | 45 % | 45 % |
| Ground Clearance | 14 in | 35.6 cm |
| Turning Radius – Outside | 12 ft 2 in | 3.71 m |
| Turntable Rotation | 360° Continuous | 360° Continuous |
🔹 Key Features & Benefits (PRO Model Standard)
-
✅ Superior Agility and Access: Features 4-wheel steering (4WS) for outstanding maneuverability and a tight turning radius (12 ft 2 in), coupled with 360° continuous rotation for rapid and complete access to the work zone.
-
✅ Maximum Rough Terrain: Equipped with an oscillating axle and permanent limited slip differential to provide superior ground grip and a high 45% gradeability for excellent crossing capacity.
-
✅ Optimal Safety: Haulotte Activ’Shield Bar (anti-crushing system) and Haulotte Activ’Lighting System (for low visibility loading) are standard equipment.
-
✅ Optimized Cost of Ownership: The simple engine design (<19kW) does not require a particulate filter. It includes the Haulotte Stop Emission System, which automatically turns the engine off after 90 seconds of inactivity.
-
✅ Haulotte Extra Reach: Provides a flexible lift capacity of 550 lb unrestricted or 770 lb restricted for increased productivity.
🔹 Applications
-
Large construction, infrastructure, and heavy industrial sites that require high reach, maximum rough-terrain capability, and superior maneuverability.
-
Environments where high-capacity lifting and positioning around complex structures are essential.
-
Jobsites benefiting from advanced features for optimized safety, uptime, and diagnostics (Activ’Screen, telematics readiness).
