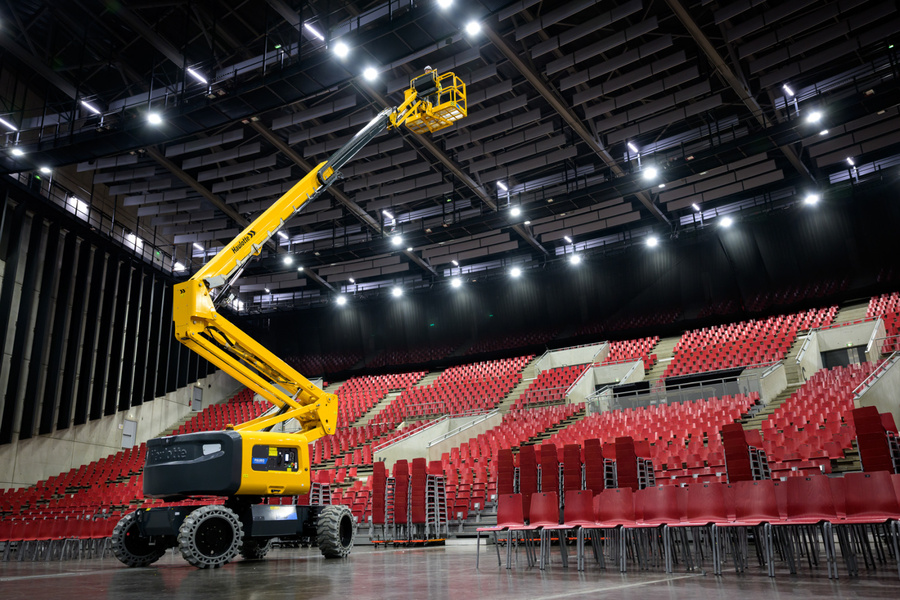

Haulotte HA61 E PRO Electric Articulating Boom Lift – 66ft, 4WS, 360° Cont
Specifications
Description
Haulotte HA61 E PRO Articulating Boom Lift – Optimized Product Page Content
🔹 Product Overview
The Haulotte HA61 E PRO is the high-performance model of the PULSEO Range, delivering the ultimate combination of 100% electric, zero-emission operation with maximum rough-terrain capability. It achieves a substantial working height of 66 ft 8 in and a horizontal outreach of 39 ft 1 in. The PRO version is equipped with 4-wheel steering (4WS), a front oscillating axle, and features like 360° continuous rotation, making it the most agile and versatile electric rough terrain boom lift for complex and demanding jobsites, both indoor and outdoor.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric (Approx.) |
| Working Height | 66 ft 8 in | 20.32 m |
| Platform Height | 60 ft 8 in | 18.49 m |
| Horizontal Outreach | 39 ft 1 in | 11.91 m |
| Up and Over Clearance | 27 ft 11 in | 8.51 m |
| Standard Lift Capacity | 550 lb | 250 kg |
| Optional Lift Capacity | 770 lb | 350 kg |
| Platform Size | 8 ft x 3 ft | 2.44 m x 0.91 m |
| Overall Width | 8 ft | 2.44 m |
| Height – Stowed | 8 ft 1 in | 2.46 m |
| Weight | 21,918 lb | 9,942 kg |
| Power Source | Full Electric (72V – 390Ah AGM Batteries) | Electric |
| Drive System | 4 Wheel Drive (4WD), 4 Wheel Steer (4WS) | 4WD/4WS |
| Gradeability | 40 % | 40 % |
| Turning Radius – Outside | 12 ft | 3.66 m |
| Turntable Rotation | 360° Continuous | 360° Continuous |
🔹 Key Features & Benefits (PRO Enhancements)
-
✅ Maximum Agility & Maneuverability: Features 4-wheel steering (4WS) for the tightest turning radius (12 ft) and a front oscillating axle to ensure continuous ground contact on rough terrain.
-
✅ Superior Access: Includes 360° continuous rotation and an impressive 39 ft 1 in outreach, allowing for optimal positioning without machine repositioning.
-
✅ Zero-Emission Performance: 100% electric drive provides silent, clean operation for versatile indoor/outdoor use, backed by a battery system that ensures more than one day of assured duty cycle.
-
✅ Safety & Diagnostics: Haulotte Activ’Shield Bar (anti-crushing) and Haulotte Activ’Lighting System (for low visibility loading) are standard on the PRO model. Also features Haulotte Activ’Screen and Activ’Energy Management.
-
✅ Optional Power: Can be equipped with the Removable Range Extender (REX 5.2 kW) option for flexible fast charging and a higher optional lift capacity of 770 lbs (Haulotte Extra Reach).
🔹 Applications
-
Large, complex construction, finishing, and industrial sites that require both high reach and advanced, tight-space maneuverability.
-
Environments with strict noise and emission controls (e.g., airports, sensitive facilities, urban night work) that still demand all-terrain capability.
-
Projects requiring a best-in-class electric alternative to high-performance diesel booms.
