Haulotte HA46 RTJ PRO Diesel Articulating Boom Lift – 4WS, 360° Continuous
Specifications
Description
Haulotte HA46 RTJ PRO Articulating Boom Lift – Optimized Product Page Content
🔹 Product Overview
The Haulotte HA46 RTJ PRO is the high-specification, top-of-the-line Diesel-powered Rough Terrain Articulating Boom Lift, incorporating Haulotte’s latest innovations for safety and productivity. It provides a robust working height of 51 ft 11 in and an industry-leading horizontal outreach of 27 ft 3 in. The PRO model is distinguished by its 4-wheel steering (4WS), 360° continuous turret rotation, and superior ground-contact features, making it highly productive and versatile on the most demanding and restricted outdoor jobsites.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric (Approx.) |
| Working Height | 51 ft 11 in | 15.82 m |
| Platform Height | 45 ft 11 in | 13.99 m |
| Horizontal Outreach | 27 ft 3 in | 8.31 m |
| Up and Over Clearance | 25 ft 1 in | 7.65 m |
| Max. Lift Capacity | 500 lb (2 pers.) | 227 kg |
| Platform Size | 95 in x 34.5 in (approx. 8 ft x 3 ft) | 2.41 m x 0.88 m |
| Overall Width | 7 ft 7 in | 2.31 m |
| Height – Stowed | 7 ft 7 in | 2.31 m |
| Weight | 14,420 lb | 6,541 kg |
| Power Source | Kubota Diesel (TIER 4 final, Stage V) 18.5 kW | Diesel |
| Drive System | 4 Wheel Drive (4WD), 4 Wheel Steer (4WS) | 4WD/4WS |
| Gradeability | 40 % | 40 % |
| Ground Clearance | 15 in | 38 cm |
| Turning Radius – Outside | 12 ft 4 in | 3.76 m |
| Turntable Rotation | 360° Continuous | 360° Continuous |
🔹 Key Features & Benefits (PRO Model Standard)
-
✅ Maximum Agility and Reach: Features 4-wheel steering (4WS) for superior maneuverability and a best-in-class turning radius (12 ft 4 in). The 360° continuous turret rotation allows fast access to any work area.
-
✅ Superior Rough Terrain Capability: Equipped with a front oscillating axle and a permanent limited slip differential to ensure maximum traction and stability on the most challenging, uneven ground.
-

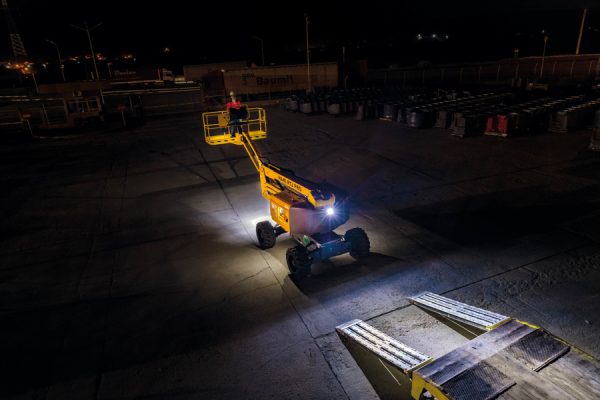

✅ Maximum Safety: Includes the Haulotte Activ’Shield Bar 2.0 (anti-crushing system) and the Haulotte Activ’Lighting System for safe operation in low light conditions.
-
✅ Minimized TCO: The Haulotte Stop Emission System automatically turns the engine off after 90 seconds of inactivity, reducing fuel consumption and engine hours.
-
✅ Advanced Diagnostics: Comes standard with the Haulotte Activ’Screen onboard diagnostics system and comprehensive telematics solutions for proactive maintenance and fleet management.
🔹 Applications
-
Large-scale construction and industrial projects requiring high reach, superior off-road capability, and precise positioning.
-
Jobsites that benefit from continuous rotation and 4-wheel steering to navigate tight or complex spaces.
-
High-demand rental environments that prioritize safety, uptime, and advanced machine management.
