Haulotte HA32 CJ+ Electric Articulating Boom Lift – 24ft Outreach, 180° Jib
Specifications
Description
Haulotte HA32 CJ+ Articulating Boom Lift – Optimized Product Page Content
🔹 Product Overview

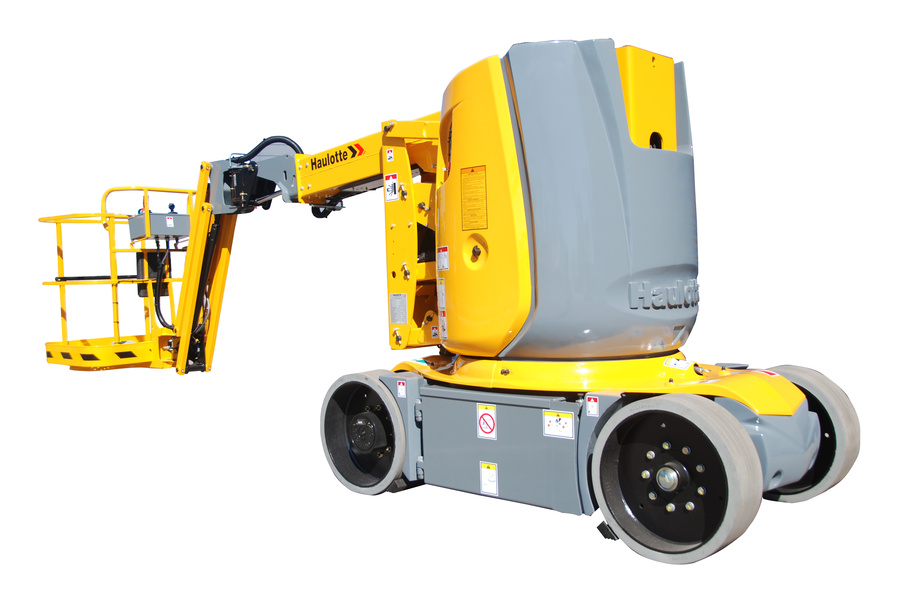

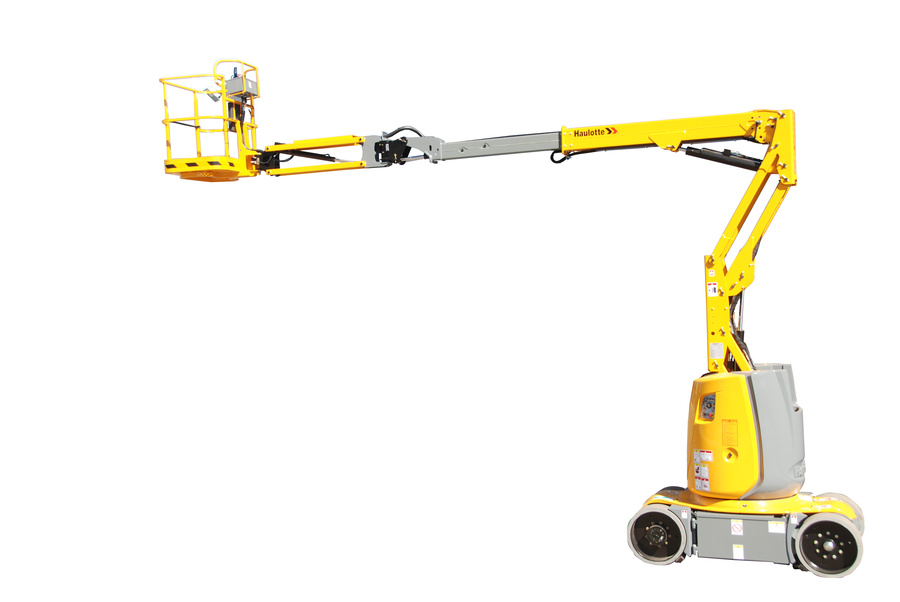

The Haulotte HA32 CJ+ is an enhanced, compact electric Articulating Boom Lift designed to offer the best outreach in its category while operating in tight, restricted spaces. Part of the compact range, it achieves a working height of 37 ft 9 in and features a significant horizontal outreach of 24 ft 1 in. The “Plus” model distinguishes itself with an articulated jib providing 180° horizontal rotation, greatly increasing its access precision. With a narrow 3 ft 11 in width and zero tailswing, the HA32 CJ+ is perfectly suited for high-precision indoor/outdoor tasks on even ground.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric (Approx.) |
| Working Height | 37 ft 9 in | 11.51 m |
| Platform Height | 31 ft 9 in | 9.68 m |
| Horizontal Outreach | 24 ft 1 in | 7.34 m |
| Up and Over Clearance | 15 ft 7 in | 4.75 m |
| Max. Lift Capacity | 500 lb (2 pers.) | 227 kg |
| Overall Width | 3 ft 11 in | 1.19 m |
| Length (Stowed) | 18 ft 6 in | 5.64 m |
| Height – Stowed | 6 ft 6 in | 1.98 m |
| Weight | 15,678 lb | 7,112 kg |
| Drive System | 48 V DC Electric (2 Wheel Drive) | Electric (2WD) |
| Gradeability | 25 % | 25 % |
| Turning Radius – Outside | 12 ft 0 in | 3.66 m |
| Horizontal Jib Rotation | 180° | 180° |
🔹 Key Features & Benefits
-
✅ Enhanced Jib Articulation (PLUS): The horizontal jib rotation of 180° provides best-in-market precision and ability to navigate complex structures, reaching areas impossible for standard booms.
-
✅ Ultra-Compact Design: A width of just 3 ft 11 in and zero tailswing allows the machine to operate in extremely congested environments and pass through standard double-doorways.
-
✅ Excellent Outreach: Offers a best-in-class horizontal outreach of 24 ft 1 in for its size.
-
✅ Zero Emission Power: 48 V DC electric system with solid non-marking tires is optimized for long working cycles and provides silent, clean operation for indoor air quality and noise-sensitive areas.
-
✅ Standard Equipment: Includes towing hooks, descent alarm, automatic platform leveling, AC power to the platform, and fully proportional controls.
🔹 Applications
-
Detailed facade and structural work where precise platform positioning is required.
-

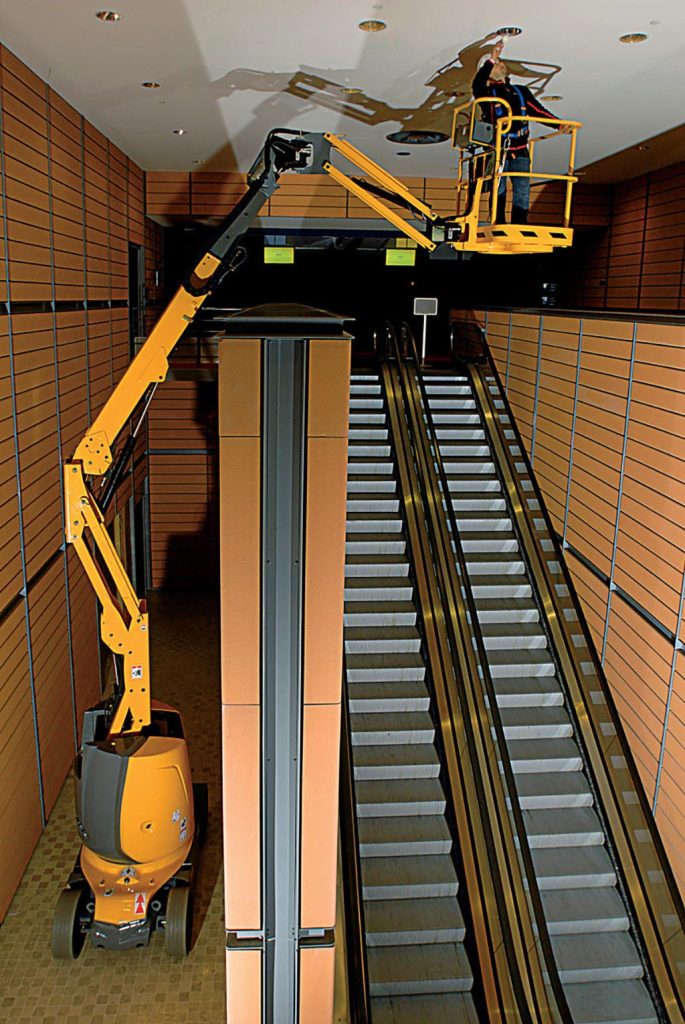

Maintenance and installation in data centers, clean rooms, airports, and other sensitive indoor/outdoor facilities.
-
Retail, logistic, and industrial applications requiring compact size, high reach, and exceptional maneuvering capabilities.
