Genie ZX-135/70 Articulated Boom Lift – 141ft High Reach Jib-Extend
Specifications
Description
Genie ZX-135/70 Articulated Boom Lift – Optimized Product Page Content
🔹 Product Overview

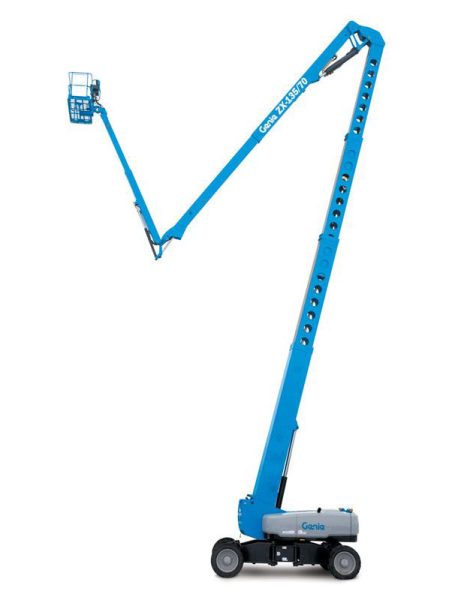

The Genie ZX-135/70 is a massive, highly sophisticated Articulated (Z-Boom) Lift designed for extreme-reach applications where complex up-and-over access and maximum height are required.1 This machine delivers a dominant working height of over 141 feet and an unparalleled horizontal reach of 70 feet. The ZX-135/70 features the unique Telescoping Jib-Extend™ boom, offering the ability to articulate, retract, and extend, providing incredible envelope coverage. This lift is the premier choice for large-scale, heavy-duty industrial and construction projects that demand the highest levels of articulation and reach.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 141 ft 1 in | 43.15 m |
| Max Horizontal Reach | 69 ft 9 in | 21.26 m |
| Up and Over Clearance | 75 ft | 22.86 m |
| Platform Capacity | 500 lb | 227 kg |
| Telescoping Jib-Extend | 20 ft | 6.10 m |
| Machine Width | 8 ft 2 in | 2.49 m |
| Gradeability (Stowed) | 40 % | 40 % |
| Machine Model | ZX-135/70 |
🔹 Key Features & Benefits
-
✅ Extreme Working Envelope: Provides a dominant working height of over 141 ft and a horizontal reach of nearly 70 ft, essential for large infrastructure and high-rise construction.
-
✅ Telescoping Jib-Extend™: The unique telescoping jib extends from 12 ft to 20 ft (3.66 m to 6.10 m), offering an exceptional range of articulation and the ability to reach below grade.
-
✅ Superior Up-and-Over Clearance: Delivers an impressive 75 ft (22.86 m) of up-and-over clearance, allowing operators to easily navigate and access work areas above massive fixed structures.
-

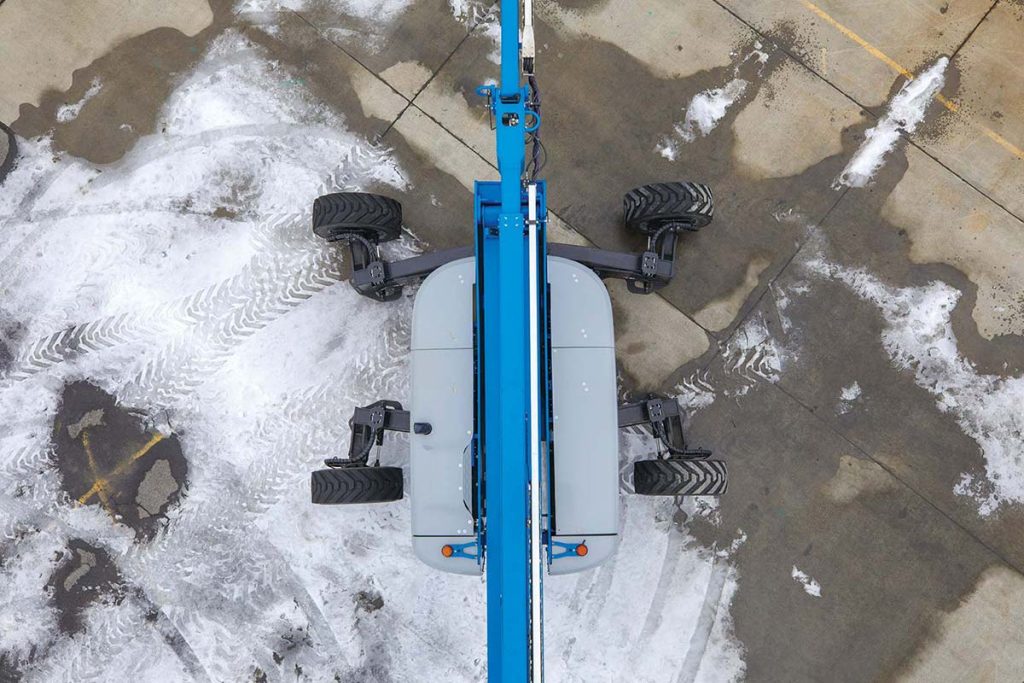

✅ XChassis™ Axle System: Features the patented expanding axle design, which provides exceptional stability at full extension while retracting for a more manageable transport width.
-
✅ Continuous Turntable Rotation: 360° continuous rotation maximizes work area coverage and minimizes the time spent repositioning the machine.
-
✅ Rough Terrain Ready: Standard 4WD, full-time active oscillating axle, and powerful diesel engine ensure superior traction and stability on challenging job sites.
🔹 Applications
-
Large Industrial Plant Construction and Maintenance (Boilers, Stacks, Piping)
-
Infrastructure Projects (Bridges, Viaducts) requiring complex articulation
-
High-Rise Building Structural Steel and Concrete Work
-
Utility and Telecommunication Tower Installation
-
Any project demanding the highest combination of height, reach, and articulation.
