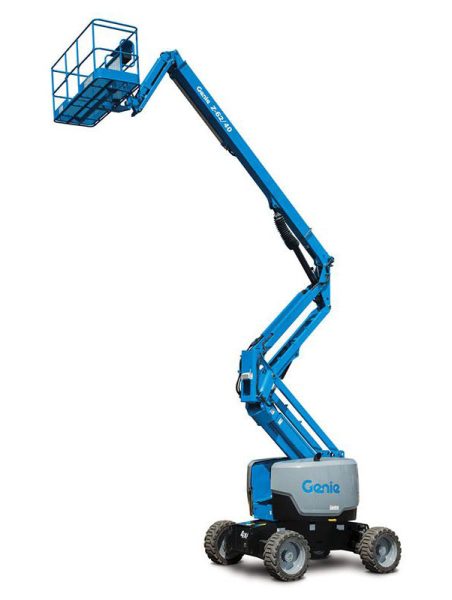

Genie Z-62/40 Articulated Boom Lift – 67ft Diesel Z-Boom
Specifications
Description
Genie Z-62/40 Articulated Boom Lift – Optimized Product Page Content
🔹 Product Overview
The Genie Z-62/40 is a highly popular Diesel Articulated (Z-Boom) Lift that provides an excellent combination of working height, substantial horizontal outreach, and superior up-and-over clearance.1 Designed for outdoor construction and industrial applications, the Z-62/40 allows operators to easily bypass obstacles and reach challenging work areas that are inaccessible to straight booms.2 This machine is equipped with powerful rough-terrain features, offering operators superior mobility, stability, and versatility for complex, mid-to-high elevation tasks.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 67 ft 11 in | 20.87 m |
| Max Horizontal Reach | 40 ft 11 in | 12.47 m |
| Up and Over Clearance | 24 ft 7 in | 7.49 m |
| Platform Capacity | 500 lb | 227 kg |
| Machine Width | 8 ft 2 in | 2.49 m |
| Turntable Rotation | 360° Continuous | 360° Continuous |
| Gradeability (Stowed) | 45 % | 45 % |
| Machine Model | Z-62/40 |
🔹 Key Features & Benefits
-
✅ Superior Up-and-Over Reach: Offers nearly 24 ft 7 in (7.49 m) of up-and-over clearance, allowing easy access over rooftops, machinery, and fixed obstacles.
-
✅ Long Horizontal Outreach: Provides an impressive horizontal reach of almost 41 ft, essential for accessing work areas deep over structures.
-
✅ Telescopic Jib: Equipped with a telescopic jib that enhances the working envelope and provides additional articulation for precise final platform positioning.
-
✅ Continuous Turntable Rotation: 360° continuous rotation maximizes work area coverage and minimizes the time spent repositioning the machine.
-
✅ Rough Terrain Performance: Standard 4WD, full-time active oscillating axle, and high-power diesel engine ensure superior traction and stability on challenging outdoor and unprepared job sites.
-
✅ Proportional Controls: Provides smooth, responsive operation for precise control over drive and boom movements at height.
🔹 Applications
-
Commercial Construction and Steel Erection
-
Exterior Building Maintenance, Cladding, and Glazing
-
Industrial Plant Maintenance and Repair
-
Utility Installation and Infrastructure Work
-
Any complex outdoor task requiring significant height and articulation over obstacles.
