Genie Z-45 XC Articulated Boom Lift – 51ft / 1000lb Up-and-Over Capacity
Specifications
Description
Genie Z-45 XC Articulated Boom Lift – Optimized Product Page Content
🔹 Product Overview
The Genie Z-45 XC™ (Xtra Capacity) is a versatile, articulated (Z-Boom) lift designed for applications that require “up-and-over” clearance and exceptional access in confined spaces.1 The Z-45 XC features Genie’s Dual Lift Capacity (300 kg unrestricted / 454 kg restricted) and advanced automatic operating envelope control, allowing it to handle heavier loads than traditional Z-booms while maintaining excellent maneuverability.2 This machine is ideal for outdoor construction and industrial tasks where both vertical reach and horizontal articulation are required.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 51 ft 6 in | 15.86 m |
| Max Horizontal Reach | 24 ft 9 in | 7.55 m |
| Up and Over Clearance | 22 ft 8 in | 6.94 m |
| Platform Capacity (Unrestricted) | 660 lb | 300 kg |
| Platform Capacity (Restricted) | 1,000 lb | 454 kg |
| Platform Rotation | 160° | 160° |
| Gradeability (Stowed) | 45 % | 45 % |
| Machine Model | Z-45 XC™ |
🔹 Key Features & Benefits (XC Series)
-
✅ Dual Xtra Capacity™ (XC): Provides exceptional versatility with 660 lb (300 kg) unrestricted capacity and an increased 1,000 lb (454 kg) restricted capacity, significantly boosting payload.
-
✅ Up-and-Over Capability: Articulating boom design offers superior clearance and the ability to reach over obstacles and machinery, essential in congested work areas.
-
✅ Automatic Envelope Control: Dynamically monitors platform load and boom position, automatically adjusting the reach envelope to ensure safe operation and prevent overload.
-
✅ Load Sense Technology: Equipped with an accurate, dynamic load weighing system to ensure compliance with the latest safety standards (e.g., ANSI, EN) and easy field calibration.
-

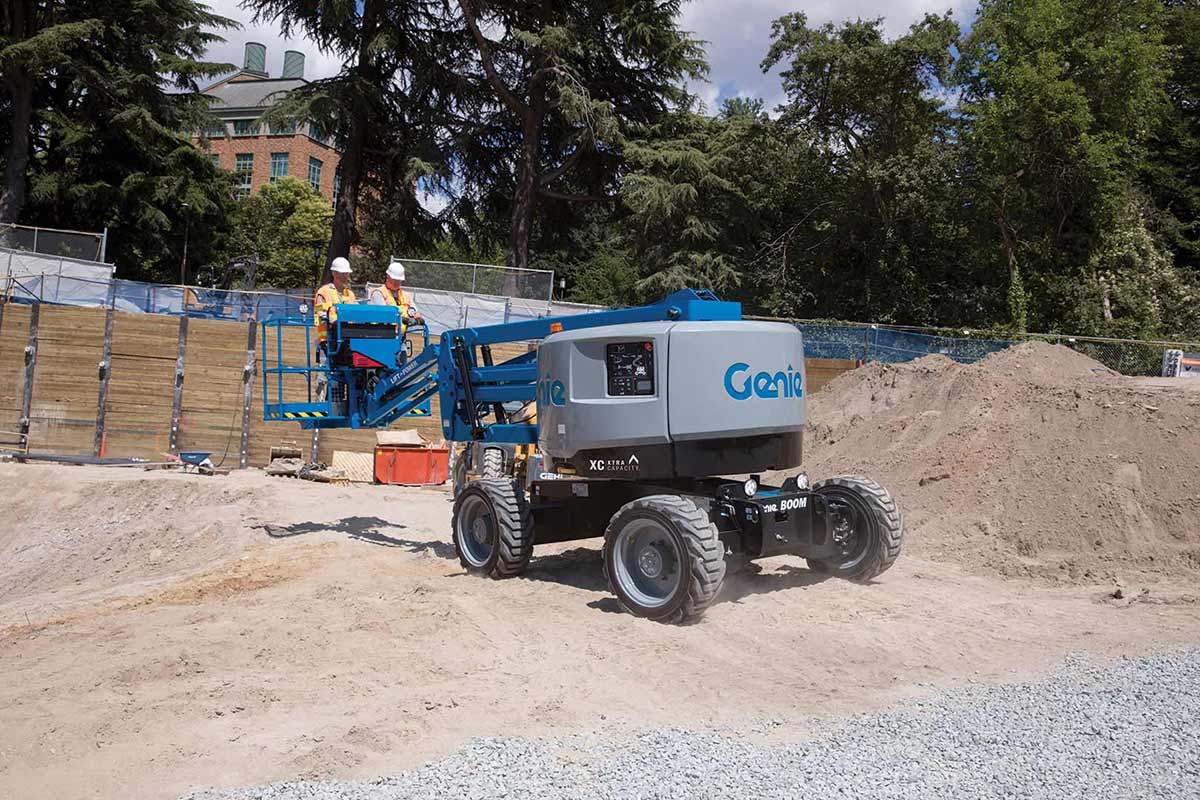

✅ Excellent Rough Terrain Performance: Standard 4WD, full-time active oscillating axle, and high ground clearance ensure superior traction and stability on challenging outdoor surfaces.
-
✅ Compact Footprint: Excellent maneuverability in tight spaces, allowing for quick positioning close to buildings or industrial equipment.
🔹 Applications
-

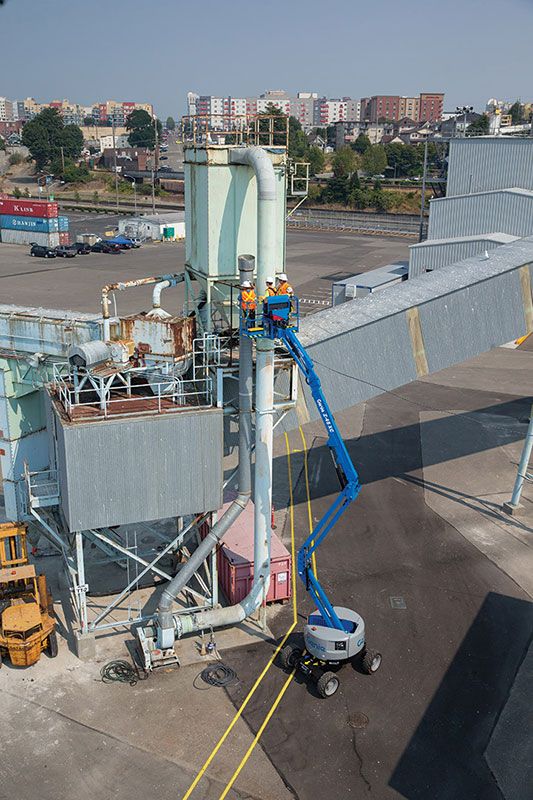

Maintenance of Industrial Plants and Refineries
-
Exterior Building Maintenance and Inspections (Overhangs, Eaves)
-

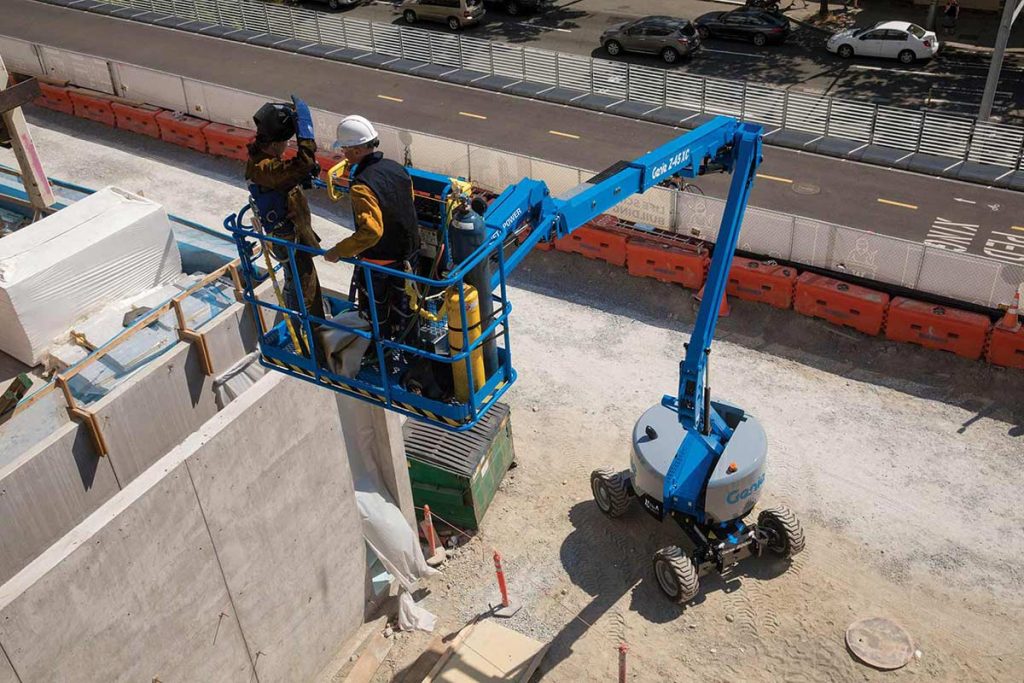

Steel Frame Erection and Assembly
-
Installation of Piping, Electrical, and HVAC Systems in Congested Areas
-
Tree Care and Utility Maintenance
