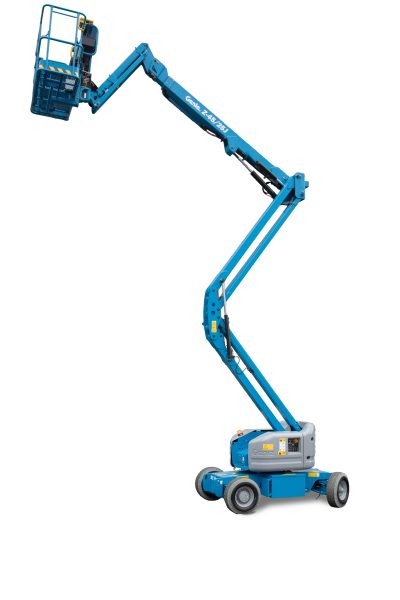

Genie Z-45/25J DC Articulated Boom Lift – 51ft Electric Z-Boom with Jib
Specifications
Description
Genie Z-45/25J DC Articulated Boom Lift – Optimized Product Page Content
🔹 Product Overview
The Genie Z-45/25J DC is a popular, DC electric-powered articulated (Z-Boom) lift featuring a specialized Jib (“J”) for enhanced access and precision.1 This machine is designed for indoor and slab environments, offering superior up-and-over clearance and reach capabilities without producing emissions.2 The Z-45/25J DC combines the excellent maneuverability of a compact Z-Boom with the added flexibility of an articulating jib, making it the ideal choice for maintenance, installation, and inspection tasks in congested facilities and sensitive environments.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 51 ft 6 in | 15.86 m |
| Max Horizontal Reach | 25 ft | 7.62 m |
| Up and Over Clearance | 22 ft 8 in | 6.94 m |
| Platform Capacity | 500 lb | 227 kg |
| Platform Jib | 5 ft | 1.52 m |
| Machine Width | 5 ft 10 in | 1.79 m |
| Power Source | 48V DC (Electric) | 48V DC (Electric) |
| Machine Model | Z-45/25J DC |
🔹 Key Features & Benefits
-
✅ Platform Jib (“J”): The articulating jib provides an extra 5 ft (1.52 m) of reach and articulation, allowing operators to precisely position the platform up, over, and around complex obstacles and structures.
-
✅ Zero-Emission Electric Power: The 48V DC electric system ensures quiet, fume-free, and clean operation, mandatory for use in indoor facilities, clean rooms, and public spaces.
-
✅ Superior Up-and-Over Capability: Articulating boom design offers exceptional up-and-over clearance, making it easy to access work areas situated above fixed machinery or ductwork.
-
✅ Excellent Maneuverability: Features a tight turning radius and precise proportional controls for navigating congested slab floors and tight industrial quarters.
-
✅ Long Battery Runtime: Designed for extended operation on a single charge, ensuring maximum productivity throughout a full day’s work.
-
✅ Non-Marking Tires: Equipped with standard non-marking tires to protect sensitive indoor flooring and slab surfaces.
🔹 Applications
-
Indoor Installation of Mechanical, Electrical, and HVAC Systems
-
Plant and Facility Maintenance requiring access over fixed equipment
-
Routine Maintenance in Atriums, Auditoriums, and Shopping Centers
-
Commercial Construction and Fit-Outs on Slab Floors
-
Any task requiring flexible articulation and zero emissions.
Delivery
Average Delivery Time is 10-15 days within USA.
For overseas delivery Message Us or Call Toll Free at +86-18221399269.
Our Quality Guarantee
At Shanghai RQ MACHINE Equipment, we are committed to providing you with peace of mind when purchasing both pre-owned and new equipment. We offer a product guarantee for our pre-owned equipment, as well as the standard manufacturer’s warranty for new equipment. Your satisfaction is our top priority.
Our pre-owned equipment product guarantee includes a 48-hour arrival warranty on most items, allowing you to inspect and test the equipment upon arrival. Should you encounter any issues with the primary functions, kindly contact us without delay. We will dispatch a technician to your location to resolve the issue at our expense. Be aware that some restrictions may apply, and the precise terms and conditions of the arrival warranty might differ based on the item or your location. To obtain specific details about the warranty coverage for your purchase, please consult with your sales representative before finalizing the transaction.
For new equipment, we provide the standard manufacturer’s warranty, which varies by product and manufacturer. We collaborate with service dealers in your local area to address any warranty claims that may arise during the warranty period. If you experience any issues with your new equipment, please contact us or the manufacturer’s service center without hesitation.
Please be aware that warranty or guarantees will be voided if the buyer attempts to repair any malfunction or issue without obtaining prior approval from us or the manufacturer.
If you have any questions or concerns about a potential purchase or our product guarantee, please feel free to contact us. Our goal is to help you and ensure your satisfaction with your purchase.
