Genie GS-3390 Rough Terrain Scissor Lift – Optimized Product Page Content

🔹 Product Overview

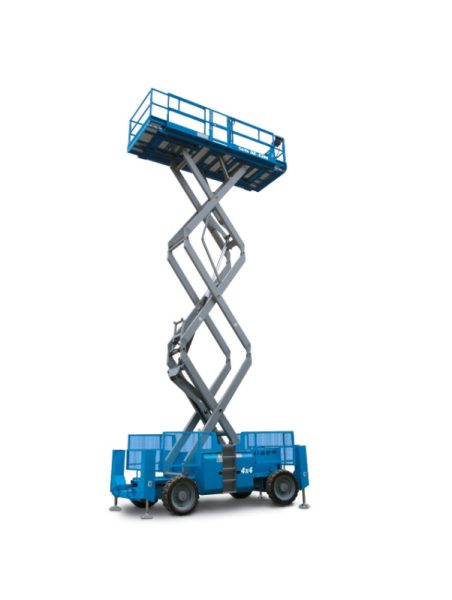

The Genie GS-3390 RT is a high-capacity, heavy-duty Rough Terrain (RT) Scissor Lift built for the most rugged outdoor job sites.1 The “3390” designation indicates a platform height of approximately 33 feet and an extra-wide 90-inch chassis. Engineered with standard 4WD and a powerful engine, the GS-3390 RT is designed to deliver superior stability, excellent gradeability, and exceptional platform capacity on severely uneven, muddy, or sandy terrain.2 This diesel-powered lift is the premier choice for large-scale external construction, masonry, and industrial projects where maximum workspace and heavy lifting capability are required at height.
🔹 Key Specifications & Capabilities
| Detail |
US Imperial |
Metric |
| Max Working Height |
39 ft |
12.06 m |
| Max Platform Height |
33 ft |
10.06 m |
| Max Platform Capacity |
2,500 lb |
1,134 kg |
| Machine Width (Stowed) |
7 ft 6 in |
2.29 m |
| Drive System |
Diesel/Hydraulic (4WD) |
Diesel/Hydraulic (4WD) |
| Stowed Height (Rails Up) |
8 ft 10 in |
2.69 m |
| Gradeability (Stowed) |
40 % |
40 % |
| Machine Model |
GS-3390 RT |
|
🔹 Key Features & Benefits
-
✅ Maximum Platform Capacity: Offers a massive capacity of 2,500 lb (1,134 kg), allowing for multiple crews, large, heavy materials (like stone or steel decking), and extensive tools at height.
-
✅ Extra-Wide Chassis: The 90-inch (2.29 m) chassis provides enhanced stability for the massive platform capacity and large working envelope.
-
✅ Rough Terrain Performance: Equipped with standard 4WD and a full-time oscillating axle, ensuring superior traction and stability for navigating steep slopes, deep mud, and highly challenging unpaved sites.
-
✅ Auto-Leveling Outriggers (Standard): Standard hydraulic auto-leveling outriggers ensure the machine is level and stable before elevating on severely uneven ground.
-
✅ Massive Working Platform: Features an extremely large working area with a dual roll-out extension deck, accommodating large construction materials.
-
✅ Powerful Diesel Engine: Utilizes a reliable, high-power diesel engine for sustained performance and the necessary power for heavy lifting and rough-terrain travel.
🔹 Applications
-
Heavy Exterior Construction (Masonry, Steel Erection, Pre-Cast Concrete)
-
Industrial Plant Construction and Heavy Component Installation
-
Bridge and Infrastructure Repair requiring high-capacity lifting
-
Large-Scale Commercial Framing and Building Envelope Work
-
Any outdoor task demanding both high capacity and extreme rough-terrain mobility.
