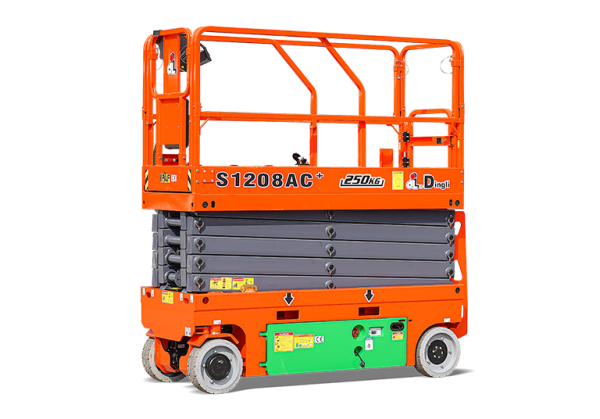

Dingli S1208AC+ Electric Scissor Lift – 39ft Ultra-Narrow 2’9″ Lithium AC+
Specifications
Description
Dingli S1208AC+ Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli S1208AC+ is an advanced, high-reach Electric Scissor Lift categorized as an “AC+ Scissor.” This model is part of Dingli’s premium “Performance+” and “Reliability+” series, featuring extensive innovations focused on energy efficiency and durability. It offers an impressive combination of working height and an ultra-narrow chassis, achieving a maximum indoor working height of 39 ft 4 in (12.00 m) while maintaining an overall width of just 2 ft 9 in (0.83 m). Key innovations include the electric actuator steering system, a Gravity Down Energy Recovery System, and an integrated four-in-one motor controller.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height (Indoor) | 39 ft 4 in | 12.00 m |
| Max Working Height (Outdoor) | 32 ft 10 in | 10.00 m |
| Max Platform Height (Indoor) | 32 ft 10 in | 10.00 m |
| Safe Working Load (S.W.L) | 551 lb | 250 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 7 ft 5 in × 2 ft 8 in | 2.27 m × 0.81 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 2 ft 9 in | 0.83 m |
| Overall Length | 8 ft 2 in | 2.48 m |
| Overall Weight (Lithium) | 6,945 lb | 3,150 kg |
| Drive System | Full Electric (Highest Efficiency AC Drive) | Full Electric (Highest Efficiency AC Drive) |
| Battery (Lithium) | 28.8V/175Ah (5-Year Warranty) | 28.8V/175Ah (5-Year Warranty) |
| Max Occupants (Indoor/Outdoor) | 2/0 | 2/0 |
| Machine Model | S1208AC+ |
🔹 Key Features & Benefits
-
✅ Ultra-Narrow Chassis: With an overall width of just 2 ft 9 in (0.83 m), this lift is designed to pass through standard single doorways and access severely confined indoor spaces.
-
✅ High Reach for Narrow Lifts: Achieves a maximum indoor working height of nearly 40 ft, providing significant vertical reach for its compact size.
-
✅ Electric Actuator Steering: Uses an innovative electric steering system, eliminating hydraulic oil in the steering circuit, resulting in faster steering speed and a 66% reduction in energy consumption.
-
✅ Energy Recovery: Equipped with a Gravity Down Energy Recovery System that regenerates battery charge during platform descent, improving efficiency and duty cycle.
-
✅ Reliability+ Design: Includes an integrated four-in-one motor controller (40% fewer connections) and a durable platform control box.
-
✅ Lithium-Ion Option: Available with a high-density Lithium-Ion battery pack, offering a long duty cycle, fast recharging, and a 5-year warranty (Lead-acid battery weight is not listed for this model).
🔹 Applications
-
Interior finishing, electrical, and maintenance work in tight spaces within commercial buildings, hospitals, warehouses, and clean environments.
-
Projects requiring a working height near 40 feet where the primary constraint is machine width.
-
Applications that benefit from zero emissions, quiet operation, and enhanced energy efficiency.
