Dingli JCPT3214DC Electric Scissor Lift – 105ft 4WD Ultra-Narrow Zero Emission 750kg Capacity
Specifications
Description
Dingli JCPT3214DC Large Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview

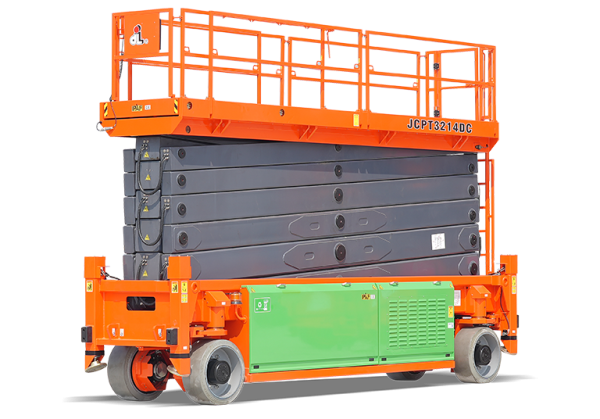

The Dingli JCPT3214DC is an ultra-high-reach, fully Electric Scissor Lift categorized as a “Large Scissor.” It is specifically designed to combine extreme vertical access with maximum maneuverability and zero-emission operation. Reaching a maximum working height of 105 ft (32.00 m), the JCPT3214DC delivers high-level performance while featuring an ultra-narrow overall width of just 4 ft 7 in (1.40 m) for exceptional “passability.” The electric (DC) drive system is powered by an 80V/520Ah high-capacity lithium battery, ensuring long endurance and quiet, clean operation. It boasts a strong 1,653 lb (750 kg) unrestricted platform capacity, and can be driven at full height.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 105 ft | 32.00 m |
| Max Platform Height | 98 ft 5 in | 30.00 m |
| Safe Working Load (S.W.L) | 1,653 lb | 750 kg |
| Platform Size (L×W) | 19 ft 2 in × 3 ft 11 in | 5.85 m × 1.20 m |
| Platform Extension | 6 ft 3 in | 1.90 m |
| Overall Width | 4 ft 7 in | 1.40 m |
| Overall Length (With Outriggers) | 21 ft | 6.41 m |
| Overall Weight (With Outriggers) | 49,824 lb | 22,600 kg |
| Drive System | Fully Electric 4WD/4WS | Fully Electric 4WD/4WS |
| Battery Power | 80V/520Ah Lithium Battery Pack | 80V/520Ah Lithium Battery Pack |
| Gradeability | 30 % | 30 % |
| Machine Model | JCPT3214DC |
🔹 Key Features & Benefits
-
✅ Extreme Electric Height: Provides a massive working height of 105 ft (32.00 m) in a fully electric, zero-emission package, ideal for environmentally demanding sites.
-
✅ Ultra-Narrow Chassis: With an overall width of just 4 ft 7 in (1.40 m), this machine offers unparalleled maneuverability and access in congested facilities for a lift of this height.
-
✅ High Unrestricted Capacity: Capable of lifting a powerful 1,653 lb (750 kg) on both the main deck and the extension.
-
✅ Driveable at Full Height: The machine can be driven at its maximum platform height (98 ft 5 in) with a full load, minimizing downtime on the job site.
-
✅ Advanced Mobility: Includes Four-Wheel Drive (4WD) and Steering (4WS), a 30% gradeability rating, and automatic leveling via outriggers for secure and stable operation on various surfaces.
-
✅ Long Endurance: Equipped with an 80V/520Ah high-capacity lithium battery pack for long, reliable run times.
🔹 Applications
-
High-level maintenance and installation in narrow aisles, such as large data centers or manufacturing lines.
-
Structural work and finishing in urban high-rises where tight access and zero-emission requirements are critical.
-
Building maintenance, lighting, and HVAC installation in large public venues like stadiums or convention halls.
-
Any project demanding the highest vertical electric access coupled with a narrow, maneuverable chassis.
