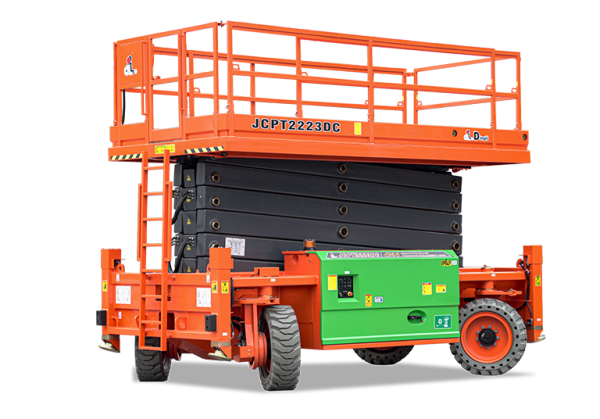

Dingli JCPT2223DC Electric Scissor Lift – 72ft 4WD Zero Emission 750kg Capacity
Specifications
Description
Dingli JCPT2223DC Large Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT2223DC is a high-reach, powerful Fully Electric Scissor Lift categorized as a “Large Scissor.” It is engineered to provide vertical access up to 72 ft 2 in (22.00 m) in environments demanding zero noise and zero emissions. The “DC” designation indicates its powerful, battery-driven system, utilizing a 48V/630Ah high-capacity lead-acid battery pack (Lithium battery version is also available). This machine boasts a massive platform, a robust 1,653 lb (750 kg) unrestricted capacity, and features four-wheel drive and steering for excellent maneuverability and rough-terrain performance, all while maintaining environmentally friendly operation.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 72 ft 2 in | 22.00 m |
| Max Platform Height | 65 ft 7 in | 20.00 m |
| Safe Working Load (S.W.L) | 1,653 lb | 750 kg |
| Platform Size (L×W) | 15 ft 2 in × 7 ft 5 in | 4.59 m × 2.25 m |
| Platform Extension | 8 ft 10 in | 2.70 m |
| Overall Width | 8 ft 1 in | 2.46 m |
| Overall Length (With Outriggers) | 16 ft 3 in | 4.95 m |
| Overall Weight (Lead-acid Battery) | 30,997 lb | 14,060 kg |
| Drive System | Fully Electric 4WD/4WS | Fully Electric 4WD/4WS |
| Battery Power | 48V/630Ah Lead-acid Battery Pack | 48V/630Ah Lead-acid Battery Pack |
| Gradeability | 30 % | 30 % |
| Machine Model | JCPT2223DC |
🔹 Key Features & Benefits
-
✅ High Electric Reach: Offers a substantial working height of over 72 ft (22.00 m) in a fully electric, zero-emission package, suitable for high-level tasks in sensitive environments.
-
✅ Massive Work Area: Features a huge main platform (15 ft 2 in x 7 ft 5 in) with an extra-long 8 ft 10 in (2.70 m) extension, creating an immense and flexible workspace for up to 4 occupants.
-
✅ High Unrestricted Capacity: Capable of lifting a powerful 1,653 lb (750 kg) on both the main platform and the extension, driveable at full height.
-
✅ Long Endurance: Equipped with a 48V/630Ah high-capacity battery pack and robust electric motors for extended operational hours.
-
✅ Rough Terrain Capability: Includes Four-Wheel Drive (4WD) and Steering (4WS), a 30% gradeability rating, and 16 inches of ground clearance, along with automatic leveling outriggers for stable operation on varied surfaces.
-
✅ Zero Emissions: Operates with no noise and zero emissions, making it perfectly suited for large indoor facilities, urban sites, and green construction projects.
🔹 Applications
-
High-level maintenance and installation in large, enclosed facilities like airports, convention centers, or manufacturing plants.
-
Structural work and high-level finishing on multi-story buildings where quiet, clean operation is mandated.
-
Any project requiring substantial reach, massive platform space, and clean electric power on uneven or sloped terrain.
