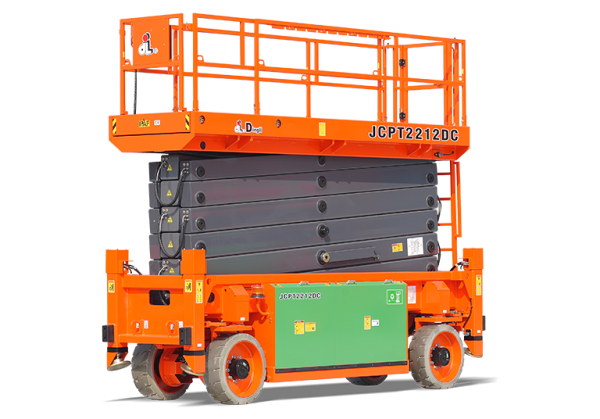

Dingli JCPT2212DC Electric Scissor Lift – 72ft 4WD Ultra-Narrow Zero Emission 750kg Capacity
Specifications
Description
Dingli JCPT2212DC Large Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT2212DC is an ultra-high-reach, narrow Fully Electric Scissor Lift categorized as a “Large Scissor.” It is specifically designed to achieve high vertical access (up to 72 ft 2 in / 22.00 m) in tight spaces while operating with zero noise and zero emissions. The “DC” designation indicates its electric drive system, powered by a 48V/630Ah high-capacity battery pack (Lead-acid or 48V/520Ah Lithium available). This model is notable for its ultra-narrow overall width of just 4 ft 1 in (1.25 m), ensuring excellent “passability” in congested areas. It maintains a strong 1,653 lb (750 kg) unrestricted platform capacity, is driveable at full height, and features four-wheel drive and steering for versatile indoor and outdoor performance.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 72 ft 2 in | 22.00 m |
| Max Platform Height | 65 ft 7 in | 20.00 m |
| Safe Working Load (S.W.L) | 1,653 lb | 750 kg |
| Platform Size (L×W) | 14 ft 1 in × 3 ft 11 in | 4.30 m × 1.19 m |
| Platform Extension | 5 ft 11 in | 1.80 m |
| Overall Width | 4 ft 1 in | 1.25 m |
| Overall Length (With Outriggers) | 15 ft 6 in | 4.72 m |
| Overall Weight (Lead-acid Battery) | 27,646 lb | 12,540 kg |
| Drive System | Fully Electric 4WD/4WS | Fully Electric 4WD/4WS |
| Battery Power | 48V/630Ah Lead-acid (or 48V/520Ah Lithium) | 48V/630Ah Lead-acid (or 48V/520Ah Lithium) |
| Gradeability | 25 % | 25 % |
| Machine Model | JCPT2212DC |
🔹 Key Features & Benefits
-
✅ High Electric Reach: Provides a working height of over 72 ft (22.00 m) in a fully electric, zero-emission package, ideal for environmentally demanding or noise-sensitive sites.
-
✅ Ultra-Narrow Chassis: With an overall width of just 4 ft 1 in (1.25 m), this machine offers exceptional maneuverability and access in congested facilities for a high-reach lift.
-
✅ High Unrestricted Capacity: Capable of lifting a powerful 1,653 lb (750 kg) on both the main deck and the extension.
-
✅ Driveable at Full Height: Can be driven at the maximum platform height (65 ft 7 in) with a full load, maximizing job site productivity.
-
✅ Advanced Mobility: Includes Four-Wheel Drive (4WD) and Steering (4WS), a 25% gradeability rating, and automatic leveling via outriggers for secure and stable operation on varied surfaces.
-
✅ Zero Emissions: Operates with no noise and zero emissions, making it perfectly suited for large indoor facilities, urban sites, and clean construction projects.
🔹 Applications
-
High-level maintenance and installation in very narrow aisles or sensitive structures like data centers, airports, and clean rooms.
-
Structural work and finishing in urban high-rises where tight access and zero-emission requirements are critical.
-
Building maintenance, lighting, and HVAC installation in large public venues where floor space is limited.
-
Any project demanding high vertical electric access coupled with a very narrow, maneuverable chassis.
