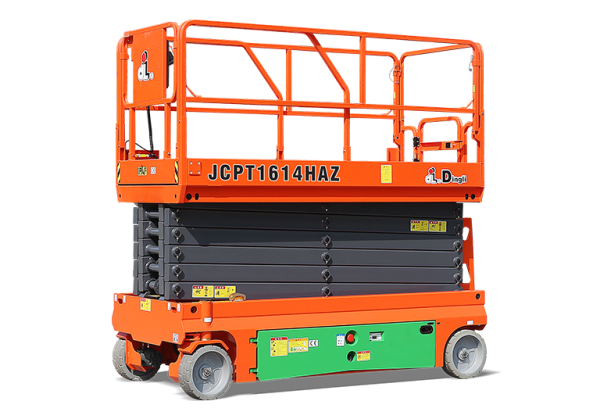

Dingli JCPT1614HAZ Electric Scissor Lift – 51ft High Capacity Narrow AC System
Specifications
Description
Dingli JCPT1614HAZ Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT1614HAZ is a high-reaching, compact Electric Scissor Lift categorized as a “Compact Scissor.” It is designed for indoor and clean applications, offering zero emissions and low noise. This model features a fully sealed AC system (drive and lift), which improves efficiency, waterproofing, and reduces maintenance compared to traditional DC systems. Key safety features include an automatic pothole protection system and automatic fault code display. Notably, this model has a high Safe Working Load (S.W.L) of 772 lb (350 kg) for its class. It achieves a maximum working height of 51 ft 6 in (15.70 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 51 ft 6 in | 15.70 m |
| Max Platform Height | 44 ft 11 in | 13.70 m |
| Safe Working Load (S.W.L) | 772 lb | 350 kg |
| S.W.L On Extension | 300 lb | 136 kg |
| Platform Size (L×W) | 8 ft 8 in × 3 ft 8 in | 2.64 m × 1.12 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 4 ft 7 in | 1.39 m |
| Overall Length (With Ladder) | 9 ft 4 in | 2.84 m |
| Overall Weight (Lead-acid) | 7,583 lb | 3,440 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/240Ah (Maintenance-Free) | 24V/240Ah (Maintenance-Free) |
| Lifting Motor | 16VAC/3.5kW | 16VAC/3.5kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | JCPT1614HAZ |
🔹 Key Features & Benefits
-
✅ High Capacity & Reach: Offers a powerful combination of over 51 ft working height and a robust 772 lb (350 kg) Safe Working Load for its narrow-access class.
-
✅ Fully Sealed AC System: The electric drive and lift systems are maintenance-free, highly waterproof, and more efficient and safer than traditional DC systems.
-
✅ Zero Emission & Low Noise: Operates purely on battery power, making it ideal for clean, quiet indoor environments.
-
✅ Compact Width: A narrow 4 ft 7 in (1.39 m) width allows for easy maneuvering in aisles and through standard industrial doorways.
-
✅ Automatic Safety Features: Equipped with an automatic pothole protection system and automatic fault code display for enhanced safety and easier servicing.
-
✅ Unidirectional Extension Platform: The platform extends to quickly and easily increase the working area.
🔹 Applications
-
Indoor fit-out, maintenance, and installation in tall facilities such as convention centers, retail stores, and manufacturing plants.
-
Projects requiring a narrow machine that can lift heavy tools or materials to heights over 50 feet.
-
Any setting demanding clean, quiet operation with maximum lift capacity and high reach for a compact machine.
