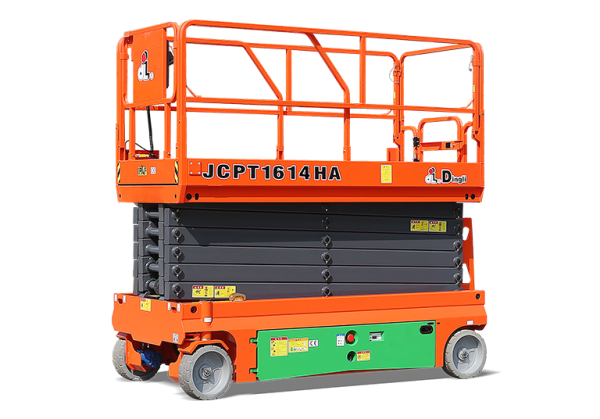

Dingli JCPT1614HA Electric Scissor Lift – 51ft Narrow Aisle AC System
Specifications
Description
Dingli JCPT1614HA Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT1614HA is a high-reaching, compact Electric Scissor Lift categorized as a “Compact Scissor.” It is designed for indoor and clean applications, featuring a narrow width and zero-emission battery operation. This model is equipped with a fully sealed AC system (drive and lift), which replaces traditional DC systems, resulting in a more maintenance-free, waterproof, efficient, and safer machine. It also includes an automatic pothole protection system for safety and automatic fault code display for easy diagnostics. It achieves a maximum working height of 51 ft 6 in (15.70 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 51 ft 6 in | 15.70 m |
| Max Platform Height | 44 ft 11 in | 13.70 m |
| Safe Working Load (S.W.L) | 551 lb | 250 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 8 ft 8 in × 3 ft 8 in | 2.64 m × 1.12 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 4 ft 7 in | 1.39 m |
| Overall Length (With Ladder) | 9 ft 4 in | 2.84 m |
| Overall Weight (Lead-acid/Lithium) | 7,583 lb | 3,440 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/240Ah (Maintenance-Free) | 24V/240Ah (Maintenance-Free) |
| Lifting Motor | 16VAC/3.5kW | 16VAC/3.5kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor) | 2 | 2 |
| Machine Model | JCPT1614HA |
🔹 Key Features & Benefits
-
✅ High Reach, Compact Body: Offers a maximum working height of over 51 ft while maintaining a narrow 4 ft 7 in (1.39 m) width, ideal for working in congested areas.
-
✅ Fully Sealed AC System: The electric drive and lift systems utilize a fully sealed AC system for maintenance-free operation, improved waterproofing, efficiency, and safety.
-
✅ Zero Emission: Operates entirely on battery power, ensuring no noise and zero emissions, making it perfect for sensitive indoor environments.
-
✅ Automatic Safety Features: Includes an automatic pothole protection system for enhanced safety and stability while driving.
-
✅ Easy Diagnostics: Provides an automatic display of fault codes for quick and straightforward maintenance and troubleshooting.
-
✅ High Capacity Battery: Equipped with a 24V/240Ah maintenance-free battery pack for extended runtime.
🔹 Applications
-
Indoor maintenance, electrical installation, and detailed finishing work in facilities such as shopping malls, airports, clean rooms, and high-ceilinged warehouses.
-
Projects requiring substantial vertical reach (over 50 feet) in narrow or restricted access areas.
-
Any application demanding clean, quiet, and reliable lifting with a focus on ease of maintenance.
