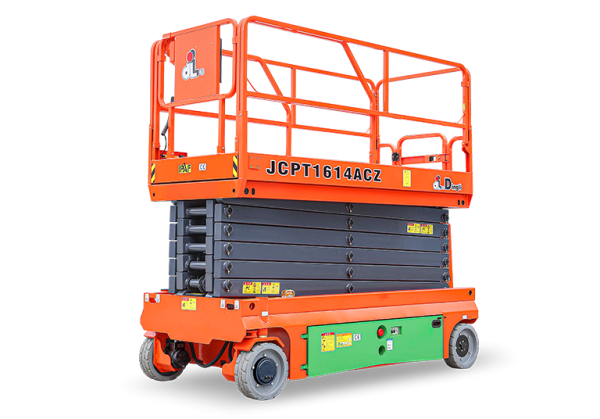

Dingli JCPT1614ACZ Electric Scissor Lift – 51ft High Capacity Narrow AC System
Specifications
Description
Dingli JCPT1614ACZ Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT1614ACZ is a high-performance, compact Electric Scissor Lift categorized as a “Compact Scissor.” It is specifically designed for indoor applications requiring high reach and mobility in narrow spaces. This model is powered by battery drive and features a fully sealed AC system (drive and lift), which provides significant advantages over older DC systems, including maintenance-free operation, better waterproofing, higher efficiency, and enhanced safety. The machine also includes essential safety mechanisms like an automatic pothole protection system and fault code display for quick troubleshooting. It offers a generous maximum working height of 51 ft 6 in (15.70 m) with a high Safe Working Load (S.W.L) of 772 lb (350 kg).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 51 ft 6 in | 15.70 m |
| Max Platform Height | 44 ft 11 in | 13.70 m |
| Safe Working Load (S.W.L) | 772 lb | 350 kg |
| S.W.L On Extension | 300 lb | 136 kg |
| Platform Size (L×W) | 8 ft 8 in × 3 ft 8 in | 2.64 m × 1.12 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 4 ft 7 in | 1.39 m |
| Overall Length (With Ladder) | 9 ft 4 in | 2.84 m |
| Overall Weight (Lead-acid) | 7,650 lb | 3,470 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/240Ah (Maintenance-Free) | 24V/240Ah (Maintenance-Free) |
| Driving Motor | 2×15VAC/0.87kW | 2×15VAC/0.87kW |
| Lifting Motor | 16VAC/3.5kW | 16VAC/3.5kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | JCPT1614ACZ |
🔹 Key Features & Benefits
-
✅ High Capacity & Reach: Provides over 51 ft of working height while supporting a substantial 772 lb (350 kg) load, accommodating two people and tools.
-
✅ Fully Sealed AC System: Ensures maintenance-free operation, greater waterproofing, and improved energy efficiency and safety in both the drive and lift functions.
-
✅ Zero Emission & Low Noise: Battery-driven operation is essential for environmentally sensitive areas, clean rooms, and noise-restricted indoor work.
-
✅ Narrow Body Design: The narrow 4 ft 7 in (1.39 m) width allows for excellent maneuverability in tight aisles and easy access through standard doorways.
-
✅ Automatic Safety Features: Includes an automatic pothole protection system for enhanced platform stability while driving and an automatic fault code display for fast diagnostics.
-
✅ Unidirectional Extension Platform: The platform can be extended quickly to increase the working area over obstacles or in difficult-to-reach spots.
🔹 Applications
-
Interior construction, electrical installation, HVAC, and finishing work in warehouses, hospitals, schools, and shopping centers.
-
Projects requiring a high vertical lift (over 50 feet) in narrow, highly-restricted indoor environments.
-
Any application that benefits from a high-capacity lift with quiet, clean operation and reliable AC power systems.
