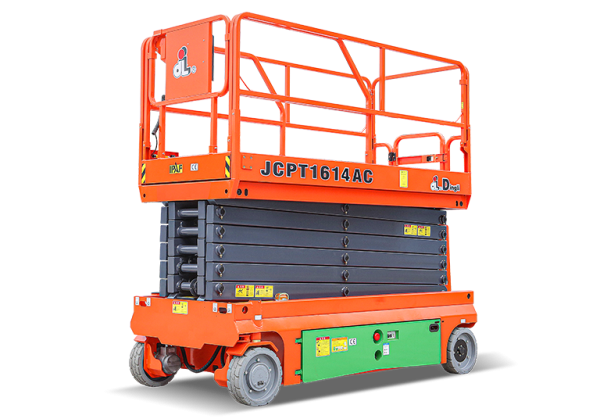

Dingli JCPT1614AC Electric Scissor Lift – 51ft Narrow Aisle AC System
Specifications
Description
Dingli JCPT1614AC Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT1614AC is a high-reach, compact Electric Scissor Lift classified as a “Compact Scissor.” It is designed primarily for indoor use where its narrow width and zero-emission operation are critical. It features a fully sealed AC drive and lift system, replacing traditional DC systems, which makes it maintenance-free, more waterproof, efficient, and safer. Key safety features include an automatic pothole protection system and automatic fault code display for easy maintenance. It achieves a maximum working height of 51 ft 6 in (15.70 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 51 ft 6 in | 15.70 m |
| Max Platform Height | 44 ft 11 in | 13.70 m |
| Safe Working Load (S.W.L) | 551 lb | 250 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 8 ft 8 in × 3 ft 8 in | 2.64 m × 1.12 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 4 ft 7 in | 1.39 m |
| Overall Length (With Ladder) | 9 ft 4 in | 2.84 m |
| Overall Weight (Lead-acid/Lithium) | 7,760 lb | 3,520 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/240Ah (Maintenance-Free) | 24V/240Ah (Maintenance-Free) |
| Driving Motor | 2×15VAC/0.87kW | 2×15VAC/0.87kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor) | 2 | 2 |
| Machine Model | JCPT1614AC |
🔹 Key Features & Benefits
-
✅ High Reach, Compact Body: Offers a class-leading working height of over 51 ft while maintaining a narrow 4 ft 7 in (1.39 m) width for operation in tight spaces.
-
✅ Fully Sealed AC System: The electric drive and lift systems are fully sealed AC, offering maintenance-free operation, increased waterproofing, better efficiency, and higher safety compared to traditional DC systems.
-
✅ Zero Emission & Low Noise: Operates entirely on battery power, making it ideal for indoor, clean, and noise-sensitive environments.
-
✅ Automatic Safety Features: Includes an automatic pothole protection system for enhanced safety and stability.
-
✅ Easy Diagnostics: Features an automatic display of fault codes for quick and straightforward troubleshooting and maintenance.
-
✅ Unidirectional Extension Platform: Allows the operator to quickly and easily extend the platform to reach operation points.
🔹 Applications
-
Indoor maintenance, installation, and inspection in warehouses, factories, schools, and hospitals due to its zero emissions and narrow design.
-
Work requiring high-level access (over 50 feet) in tight, congested areas.
-
Projects benefiting from the low-maintenance, reliable performance of a fully sealed AC electric system.
