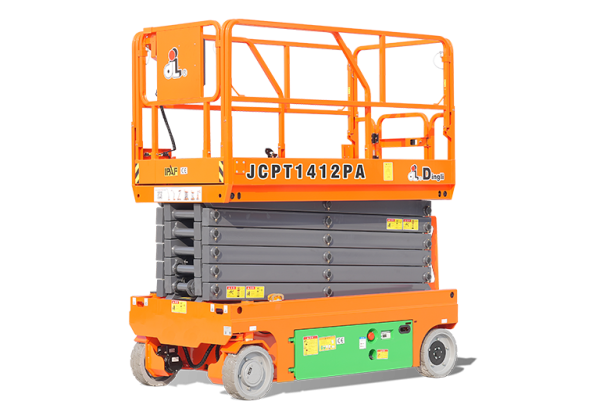

Dingli JCPT1412PA Oil-Free Electric Scissor Lift – 45ft 3in Narrow All-Electric
Specifications
Description
Dingli JCPT1412PA Electric Scissor Lift (Oil-Free Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT1412PA is a high-performance, narrow Electric Scissor Lift from the specialized “Oil-Free Scissor” series. This innovative model replaces traditional hydraulic oil cylinders with electric actuators for lifting, lowering, and steering, eliminating the need for hydraulic oil. This results in a machine that is highly energy-efficient, quieter, and requires significantly less maintenance. The JCPT1412PA achieves a maximum indoor working height of 45 ft 3 in (13.80 m) and has a narrow overall chassis width of 3 ft 11 in (1.19 m), perfect for indoor applications requiring considerable height.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height (Indoor) | 45 ft 3 in | 13.80 m |
| Max Working Height (Outdoor) | 38 ft 9 in | 11.80 m |
| Max Platform Height (Indoor) | 38 ft 9 in | 11.80 m |
| Safe Working Load (S.W.L) | 705 lb | 320 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 7 ft 5 in × 3 ft 8 in | 2.27 m × 1.12 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 3 ft 11 in | 1.19 m |
| Overall Length | 8 ft 2 in | 2.48 m |
| Overall Weight (AGM Battery) | 7,054 lb | 3,200 kg |
| Drive System | All-Electric Actuator (Oil-Free) | All-Electric Actuator (Oil-Free) |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/240Ah | Lead-Acid Maintenance-Free 24V/240Ah |
| Max Occupants (Indoor/Outdoor) | 2/0 | 2/0 |
| Machine Model | JCPT1412PA |
🔹 Key Features & Benefits
-
✅ Oil-Free Technology: Uses electric actuators instead of traditional hydraulics for all movement (lifting, lowering, steering), eliminating issues like oil leakage, valve core sticking, and oil changes.
-
✅ High Efficiency & Long Endurance: Direct motor drive systems achieve 95% total transmission efficiency, resulting in over 30% energy saving compared to hydraulic machines.
-
✅ Narrow Design, High Reach: A width of only 3 ft 11 in (1.19 m) combined with a 45 ft 3 in (13.80 m) working height offers excellent access in confined high-reach environments.
-
✅ Enhanced Comfort: Full stroke proportional control provides smoother operation, eliminating the abrupt feeling associated with hydraulic self-gravity lowering.
-
✅ Low Noise & Zero Emission: Operates quieter than hydraulic-system machines and is entirely electric and oil-free, making it highly environmentally friendly.
-
✅ Reduced Maintenance: Equipped with maintenance-free permanent magnet synchronous motors and AGM batteries, significantly reducing overall maintenance costs.
🔹 Applications
-
Interior finishing, electrical, HVAC, and maintenance work in large commercial buildings, airports, and exhibition centers up to 45 feet.
-
Projects in sensitive environments (e.g., food processing, hospitals) where zero hydraulic oil risk and low noise are critical.
-
Applications requiring high efficiency and reduced lifetime operational maintenance.
Delivery
Average Delivery Time is 10-15 days within USA.
For overseas delivery Message Us or Call Toll Free at +86-18221399269.
