Dingli JCPT1412HA Electric Scissor Lift – 45ft Ultra-Narrow Aisle AC System
Specifications
Description
Dingli JCPT1412HA Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview

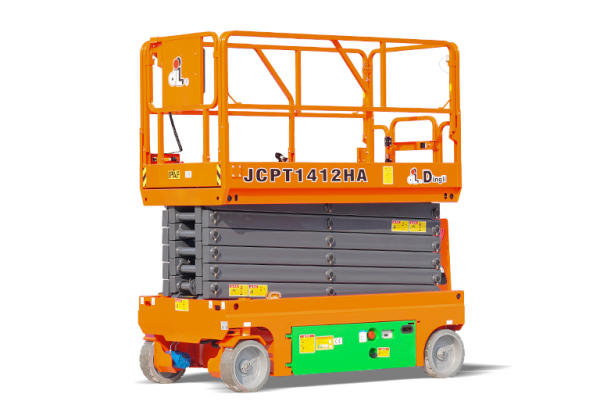

The Dingli JCPT1412HA is a highly compact, high-reach Electric Scissor Lift classified as a “Compact Scissor.” It is engineered for optimal performance in indoor environments and tight spaces, offering a quiet, clean, and zero-emission solution. This model incorporates a fully sealed AC system (drive and lift), which provides superior efficiency, waterproofing, enhanced safety, and eliminates the maintenance associated with traditional DC systems. Key safety and operational features include the automatic pothole protection system and automatic fault code display for simplified maintenance. It achieves a maximum working height of 45 ft 3 in (13.80 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 45 ft 3 in | 13.80 m |
| Max Platform Height | 38 ft 9 in | 11.80 m |
| Safe Working Load (S.W.L) | 705 lb | 320 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 7 ft 5 in × 3 ft 8 in | 2.27 m × 1.12 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 3 ft 11 in | 1.19 m |
| Overall Length (With Ladder) | 8 ft 2 in | 2.48 m |
| Overall Weight (Lead-acid/Lithium) | 6,636 lb | 3,010 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/240Ah (Maintenance-Free) | 24V/240Ah (Maintenance-Free) |
| Lifting Motor | 16VAC/3.5kW | 16VAC/3.5kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor) | 3 | 3 |
| Machine Model | JCPT1412HA |
🔹 Key Features & Benefits
-
✅ Ultra-Narrow Chassis: The machine’s narrow 3 ft 11 in (1.19 m) overall width ensures it can easily fit through standard single doorways and maneuver efficiently in the tightest of indoor spaces.
-
✅ High Reach and Capacity: Offers a working height of over 45 ft and a robust 705 lb (320 kg) platform capacity, supporting up to 3 indoor occupants.
-
✅ Fully Sealed AC System: Features an advanced AC drive and lift system that is maintenance-free, water-resistant, highly efficient, and provides enhanced safety.
-
✅ Zero Emission & Quiet Operation: Battery-driven, making it ideal for indoor, clean, and noise-sensitive environments like offices, retail, and hospitals.
-
✅ Automatic Safety Features: Equipped with the automatic pothole protection system for secure driving and an automatic fault code display for fast, simple service diagnostics.
-
✅ Unidirectional Extension Platform: Includes a long platform with an extension for maximizing the working area and reach over obstacles.
🔹 Applications
-
Interior finishing, electrical, and maintenance work in buildings with standard doorway and tight aisle restrictions, such as high-ceiling offices, retail centers, and data facilities.
-
Projects requiring a significant vertical lift (over 45 feet) where machine width is a critical limiting factor for access.
-
Any indoor application that requires reliable, low-maintenance lifting with clean and quiet operation.
