Dingli JCPT1218RT Diesel Scissor Lift – 39ft Rough Terrain Auto Outriggers
Specifications
Description
Dingli JCPT1218RT Rough Terrain Scissor Lift – Optimized Product Page Content
🔹 Product Overview

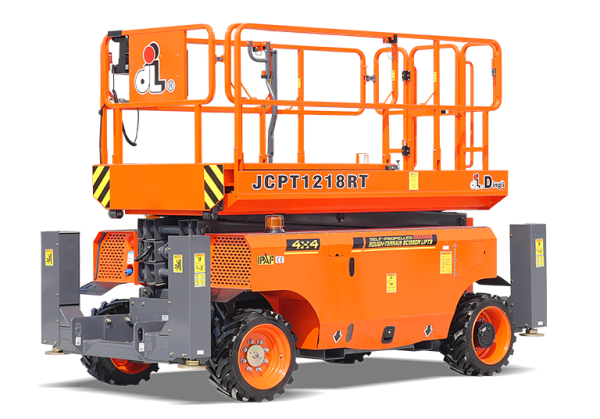

The Dingli JCPT1218RT is a heavy-duty Diesel Rough Terrain Scissor Lift, classified as a “Large Scissor.” It is powered by a robust Kubota D1105/18.2kW Diesel Engine, offering reliable and continuous power for demanding outdoor jobs. This model is engineered for maximum performance on uneven ground, featuring automatic hydraulic leveling outriggers for superior stability, a high 40% gradeability, and strong off-road capability. It reaches a maximum working height of 39 ft 4 in (12.00 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 39 ft 4 in | 12.00 m |
| Max Platform Height | 32 ft 10 in | 10.00 m |
| Safe Working Load (S.W.L) | 1,000 lb | 454 kg |
| S.W.L On Extension | 299 lb | 136 kg |
| Platform Size (L×W) | 9 ft 5 in × 5 ft | 2.88 m × 1.52 m |
| Platform Extension | 4 ft 8 in | 1.43 m |
| Overall Width | 5 ft 9 in | 1.76 m |
| Overall Length (With Outriggers) | 12 ft 7 in | 3.84 m |
| Overall Weight (With Outriggers) | 9,700 lb | 4,400 kg |
| Drive System | Diesel Engine Power | Diesel Engine Power |
| Diesel Engine | Kubota D1105 / 18.2kW | Kubota D1105 / 18.2kW |
| Diesel Tank Capacity | 12 gal | 47 L |
| Gradeability | 40 % | 40 % |
| Max Occupants (Outdoor) | 2 | 2 |
| Machine Model | JCPT1218RT |
🔹 Key Features & Benefits
-
✅ Diesel Power: Provides consistent and reliable power for all-day operation without the need for charging, fueled by the 12-gallon diesel tank.
-
✅ Automatic Leveling Outriggers: Ensures quick, safe setup and excellent stability when working on rugged, sloping, or uneven surfaces.
-
✅ High Rough Terrain Performance: Equipped for difficult environments with 40% gradeability and specialized rough terrain tires (26×12-16.5).
-
✅ Folding Guardrails: Facilitates easy and compact transportation by reducing the overall height to 6 ft (1.82m) when lowered.
-
✅ High Capacity Deck: The spacious 9 ft 5 in x 5 ft platform, coupled with the 4 ft 8 in extension, supports a 1,000 lb (454 kg) load and up to 4 indoor occupants.
-
✅ Fast Operation: Features a platform up/down speed of 38/46 seconds, optimizing work efficiency.
🔹 Applications
-
Large outdoor construction and maintenance projects requiring continuous power and strong off-road capability.
-
Sites with sloping ground where automatic stability and leveling are essential.
-
General utility work needing a robust, diesel-powered lift with a nearly 40-foot working height.
