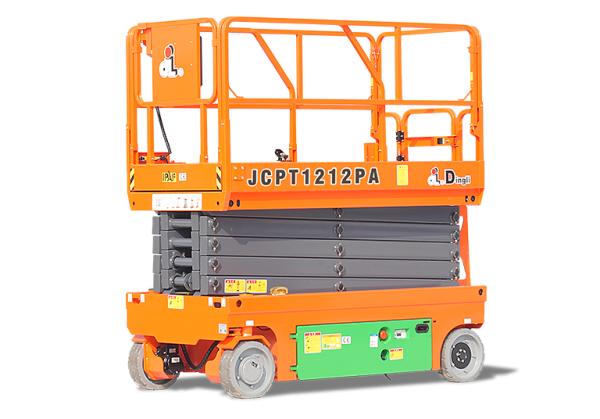

Dingli JCPT1212PA Oil-Free Electric Scissor Lift – 39ft 4in All-Electric Actuator
Specifications
Description
Dingli JCPT1212PA Electric Scissor Lift (Oil-Free Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT1212PA is a mid-height, fully electric Scissor Lift from the specialized “Oil-Free Scissor” series. This model utilizes advanced electric actuators for lifting, lowering, and steering instead of traditional hydraulic oil cylinders. This innovative design results in superior energy efficiency (over 30% savings), ultra-low maintenance (no hydraulic oil changes), and quiet, smooth operation. The JCPT1212PA achieves a maximum indoor working height of 39 ft 4 in (12.00 m) and features a versatile overall chassis width of 3 ft 9 in (1.15 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height (Indoor) | 39 ft 4 in | 12.00 m |
| Max Working Height (Outdoor) | 32 ft 10 in | 10.00 m |
| Max Platform Height (Indoor) | 32 ft 10 in | 10.00 m |
| Safe Working Load (S.W.L) | 705 lb | 320 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 7 ft 5 in × 3 ft 8 in | 2.27 m × 1.12 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 3 ft 9 in | 1.15 m |
| Overall Length | 8 ft 2 in | 2.48 m |
| Overall Weight (AGM Battery) | 7,010 lb | 3,180 kg |
| Drive System | All-Electric Actuator (Oil-Free) | All-Electric Actuator (Oil-Free) |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/200Ah | Lead-Acid Maintenance-Free 24V/200Ah |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | JCPT1212PA |
🔹 Key Features & Benefits
-
✅ Oil-Free Technology: Uses electric actuators for all movement (lifting, lowering, steering), eliminating issues like hydraulic oil leakage, high/low temperature efficiency reduction, and the need for oil changes.
-
✅ High Efficiency & Long Endurance: Direct motor drive systems achieve 95% total transmission efficiency, resulting in over 30% energy saving compared to hydraulic machines.
-
✅ Zero Emission & Low Noise: All-electric operation makes it ideal for indoor, noise-sensitive, and environmentally regulated work sites.
-
✅ Enhanced Comfort: Full stroke proportional control provides smooth, jitter-free lifting and lowering, enhancing the operator experience.
-
✅ Reduced Maintenance: Equipped with maintenance-free permanent magnet synchronous motors and AGM batteries, significantly reducing overall maintenance costs.
🔹 Applications
-
Indoor and outdoor construction, maintenance, and installation tasks in medium-to-large commercial spaces, retail, warehousing, and factories.
-
Projects that require a working height up to 39 feet but also demand narrow access and clean operation.
-
Environments prioritizing energy efficiency and reduced long-term operating costs.
