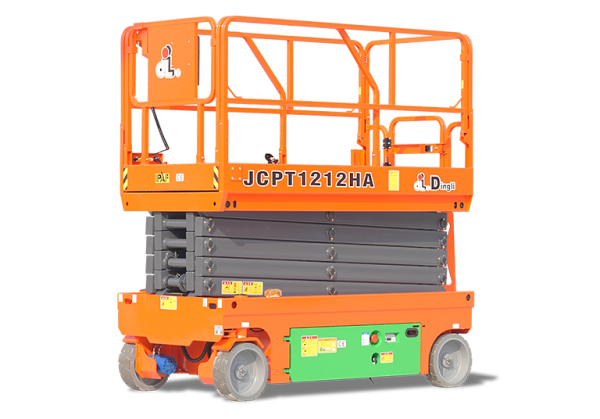

Dingli JCPT1212HA Electric Scissor Lift – 39ft Ultra-Narrow Aisle AC System
Specifications
Description
Dingli JCPT1212HA Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT1212HA is an ultra-narrow, high-reach Electric Scissor Lift categorized as a “Compact Scissor.” It is expertly designed for precise operation in indoor, confined, and sensitive environments, providing zero emissions and low-noise performance. This model utilizes a fully sealed AC system (drive and lift), which enhances efficiency, water resistance, safety, and offers a maintenance-free alternative to traditional DC systems. For safety and ease of use, it is equipped with the automatic pothole protection system and automatic fault code display. It achieves a maximum working height of 39 ft 4 in (12.00 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 39 ft 4 in | 12.00 m |
| Max Platform Height | 32 ft 10 in | 10.00 m |
| Safe Working Load (S.W.L) | 705 lb | 320 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 7 ft 5 in × 3 ft 8 in | 2.27 m × 1.12 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 3 ft 9 in | 1.15 m |
| Overall Length (With Ladder) | 8 ft 2 in | 2.48 m |
| Overall Weight (Lead-acid/Lithium) | 6,724 lb | 3,050 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/200Ah (Maintenance-Free) | 24V/200Ah (Maintenance-Free) |
| Lifting Motor | 16VAC/3.5kW | 16VAC/3.5kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | JCPT1212HA |
🔹 Key Features & Benefits
-
✅ Ultra-Narrow Access: With an overall width of only 3 ft 9 in (1.15 m), this machine fits through most standard single doors and maneuvers exceptionally well in congested or narrow-aisle environments.
-
✅ High Reach for Compact Size: Provides an impressive working height of nearly 40 ft, ideal for reaching high ceilings and fixtures.
-
✅ Fully Sealed AC System: Features a maintenance-free AC drive and lift system, offering enhanced water resistance, greater efficiency, and superior safety.
-
✅ High Platform Capacity: Supports a generous 705 lb (320 kg) load, allowing for up to 2 indoor occupants plus tools.
-
✅ Zero Emission & Quiet Operation: Battery-powered, ensuring clean operation for sensitive indoor spaces and low noise levels.
-
✅ Automatic Safety & Diagnostics: Includes an automatic pothole protection system for driving stability and automatic fault code display for fast and simple servicing.
🔹 Applications
-
Interior maintenance, mechanical, and electrical installation work in buildings with standard doorway and tight aisle restrictions, such as hospitals, schools, and high-density retail stores.
-
Projects requiring a vertical lift near 40 feet where machine width is the primary access constraint.
-
Any indoor environment that demands clean, quiet, and reliable access with an emphasis on low maintenance.
