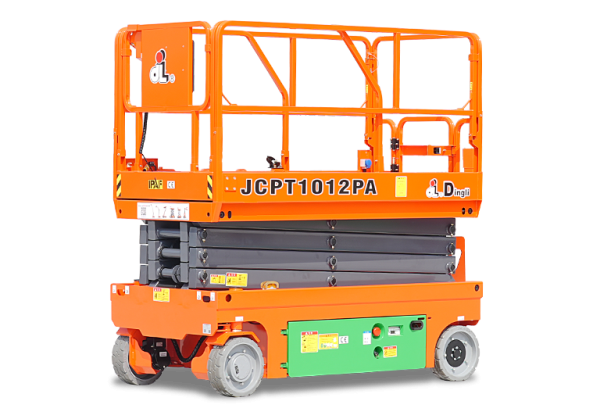

Dingli JCPT1012PA Oil-Free Electric Scissor Lift – 33ft Narrow 3’9″ All-Electric
Specifications
Description
Dingli JCPT1012PA Electric Scissor Lift (Oil-Free Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT1012PA is a low-to-mid-height, clean-running Scissor Lift from the specialized “Oil-Free Scissor” series. This model represents a significant design departure, using advanced electric actuators for all functions (lifting, lowering, and steering) instead of traditional hydraulic systems. This innovation delivers a machine that is quieter, requires minimal maintenance, and is highly energy-efficient (over 30% savings). The JCPT1012PA offers a maximum indoor working height of 32 ft 10 in (10.00 m) with a versatile platform width of 3 ft 9 in (1.15 m), making it ideal for indoor facilities.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height (Indoor) | 32 ft 10 in | 10.00 m |
| Max Working Height (Outdoor) | 26 ft 3 in | 8.00 m |
| Max Platform Height (Indoor) | 26 ft 3 in | 8.00 m |
| Safe Working Load (S.W.L) | 771 lb | 350 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 7 ft 5 in × 3 ft 8 in | 2.27 m × 1.12 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 3 ft 9 in | 1.15 m |
| Overall Length | 8 ft 2 in | 2.48 m |
| Overall Weight (AGM Battery) | 6,283 lb | 2,850 kg |
| Drive System | All-Electric Actuator (Oil-Free) | All-Electric Actuator (Oil-Free) |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/185Ah | Lead-Acid Maintenance-Free 24V/185Ah |
| Max Occupants (Indoor/Outdoor) | 2/2 | 2/2 |
| Machine Model | JCPT1012PA |
🔹 Key Features & Benefits
-
✅ Oil-Free Technology: Uses electric actuators for all movement (lifting, lowering, steering), which eliminates the maintenance hassle and environmental risk associated with hydraulic oil.
-
✅ High Efficiency & Energy Saving: Direct motor drive systems achieve 95% total transmission efficiency, providing over 30% energy saving compared to standard hydraulic machines and extended duty cycles.
-
✅ Zero Emission & Low Noise: Operates quietly and produces zero emissions, making it perfectly suited for highly regulated, noise-sensitive indoor environments.
-
✅ Enhanced Safety & Comfort: Features built-in position sensors for real-time monitoring and full stroke proportional control for smooth, precise, and comfortable operation.
-
✅ Reduced Maintenance: Equipped with maintenance-free permanent magnet synchronous motors and lead-acid batteries (Lithium option available), drastically cutting down on service costs.
🔹 Applications
-
General facility maintenance, inventory, painting, and installation work in warehouses, retail stores, offices, and schools.
-
Indoor tasks requiring working heights up to 33 feet and high-capacity lifting within a narrow, clean footprint.
-
Environments where low noise and a high degree of environmental protection are priorities.
Delivery
Average Delivery Time is 10-15 days within USA.
For overseas delivery Message Us or Call Toll Free at +86-18221399269.
