Dingli JCPT1012HA Electric Scissor Lift – 33ft High Capacity 992lb AC System
Specifications
Description

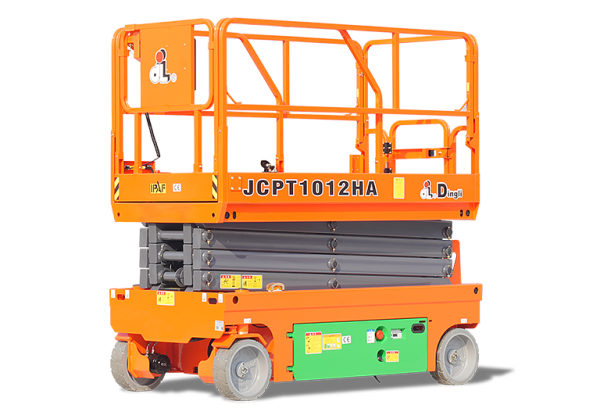

Dingli JCPT1012HA Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT1012HA is a high-capacity, compact Electric Scissor Lift classified as a “Compact Scissor.” It is designed for maximum utility in indoor and outdoor tasks that require moderate height access combined with a robust load capacity of 992 lb (450 kg). This model incorporates a fully sealed AC system (drive and lift), which provides significant benefits including maintenance-free operation, superior waterproofing, enhanced efficiency, and greater safety compared to traditional DC systems. It is also equipped with safety features like the automatic pothole protection system and an automatic fault code display. It achieves a maximum working height of 32 ft 10 in (10.00 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 32 ft 10 in | 10.00 m |
| Max Platform Height | 26 ft 3 in | 8.00 m |
| Safe Working Load (S.W.L) | 992 lb | 450 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 7 ft 5 in × 3 ft 8 in | 2.27 m × 1.12 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 3 ft 9 in | 1.15 m |
| Overall Length (With Ladder) | 8 ft 2 in | 2.48 m |
| Overall Weight (Lead-acid/Lithium) | 5,908 lb | 2,680 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/185Ah (Maintenance-Free) | 24V/185Ah (Maintenance-Free) |
| Lifting Motor | 16VAC/3.5kW | 16VAC/3.5kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor/Outdoor) | 2/2 | 2/2 |
| Machine Model | JCPT1012HA |
🔹 Key Features & Benefits
-
✅ High Capacity (992 lb): Features a class-leading maximum load capacity of 450 kg, making it extremely versatile for lifting heavy tools, materials, and multiple occupants (rated for 2 indoor/outdoor occupants).
-
✅ Compact & Doorway Access: The narrow 3 ft 9 in (1.15 m) overall width ensures easy passage through standard single doorways and excellent maneuverability in confined indoor spaces.
-
✅ Fully Sealed AC System: The electric drive and lift systems are built with an advanced AC system for maintenance-free reliability, superior water resistance, efficiency, and safety.
-
✅ Low Stowed Height: A stowed height (rails down) of only 6 ft facilitates easy loading, transport, and storage in areas with low overhead clearance.
-
✅ Zero Emission & Quiet Operation: Battery-powered, ensuring clean, low-noise performance suitable for environmentally sensitive and finished indoor areas.
-
✅ Automatic Safety: Equipped with the automatic pothole protection system for driving stability and an automatic fault code display for quick, easy service and maintenance.
🔹 Applications
-
Maintenance, electrical, and HVAC installation work in commercial and industrial settings requiring high capacity and moderate lift height (up to 33 ft).
-
Projects that demand a high load capacity (near 1000 lbs) but must navigate narrow corridors or tight indoor aisles.
-
Any indoor or outdoor (rated) application where clean, quiet operation and reliable AC power are required.
