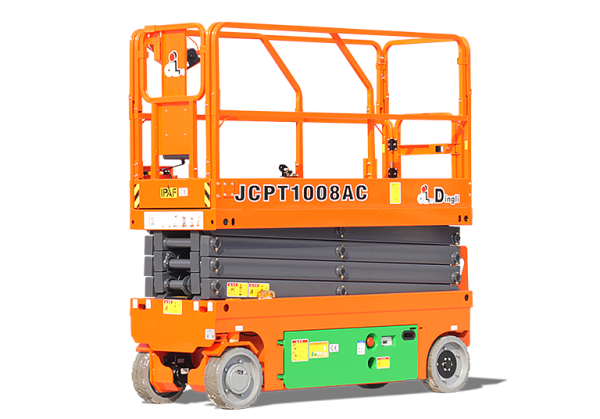

Dingli JCPT1008AC Electric Scissor Lift – 33ft Ultra-Narrow 2’9″ AC System
Specifications
Description
Dingli JCPT1008AC Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT1008AC is an ultra-narrow, high-reach Electric Scissor Lift classified as a “Compact Scissor.” It is specifically designed for maximum access and maneuverability in the most confined indoor spaces, offering zero emissions and quiet operation. This model features an incredibly narrow width of 2 ft 9 in (0.83 m), allowing it to fit through standard single doorways. It is equipped with a fully sealed AC system (drive and lift), which provides maintenance-free operation, superior waterproofing, increased efficiency, and enhanced safety compared to traditional DC systems. It achieves a maximum working height of 32 ft 10 in (10.00 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 32 ft 10 in | 10.00 m |
| Max Platform Height | 26 ft 3 in | 8.00 m |
| Safe Working Load (S.W.L) | 507 lb | 230 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 7 ft 5 in × 2 ft 8 in | 2.27 m × 0.81 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 2 ft 9 in | 0.83 m |
| Overall Length (With Ladder) | 8 ft 2 in | 2.48 m |
| Overall Weight (Lead-acid/Lithium) | 4,960 lb | 2,250 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/185Ah (Maintenance-Free) | 24V/185Ah (Maintenance-Free) |
| Driving Motor | 2×15VAC/0.87kW | 2×15VAC/0.87kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor/Outdoor) | 2/0 | 2/0 |
| Machine Model | JCPT1008AC |
🔹 Key Features & Benefits
-
✅ Ultra-Narrow Chassis: The narrowest design in its class, at just 2 ft 9 in (0.83 m), allowing unparalleled access through standard single doorways, elevators, and tight aisles.
-
✅ High Reach for Narrow Class: Provides an excellent working height of nearly 33 ft with a minimal footprint.
-
✅ Fully Sealed AC System: The electric drive and lift systems are built with an advanced AC system, offering maintenance-free reliability, superior waterproofing, efficiency, and safety.
-
✅ Low Stowed Height: A stowed height (rails down) of only 6 ft 7 in makes it easy to transport and store in low-clearance areas.
-
✅ Zero Emission & Quiet: Battery-powered for clean, low-noise operation, essential for sensitive indoor environments like offices and hospitals.
-
✅ Automatic Safety & Diagnostics: Equipped with the automatic pothole protection system for driving stability and automatic fault code display for streamlined service diagnostics.
🔹 Applications
-
Interior maintenance, repair, electrical and HVAC installation work in buildings with very tight access restrictions, such as server rooms, data centers, narrow store aisles, and small offices.
-
Projects requiring a working height of up to 33 feet where machine width is the critical access constraint (must be less than 3 feet).
-
Any indoor application demanding clean, quiet, and reliable high-reach access with the smallest possible machine size.
