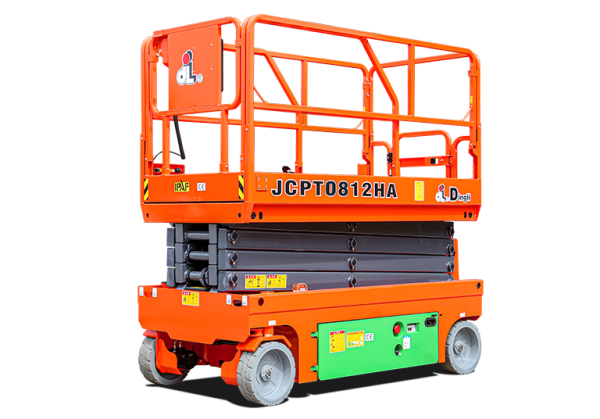

Dingli JCPT0812HA Electric Scissor Lift – 26ft High Capacity 1190lb AC System
Specifications
Description
Dingli JCPT0812HA Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0812HA is a highly versatile, compact Electric Scissor Lift categorized as a “Compact Scissor.” It is designed for low- to mid-level access applications, combining a narrow chassis with a very high Safe Working Load (S.W.L) of 1,190 lb (540 kg). This model incorporates a fully sealed AC system (drive and lift), which provides significant benefits including maintenance-free operation, superior waterproofing, increased efficiency, and greater safety compared to traditional DC systems. It is also equipped with safety features like the automatic pothole protection system and an automatic fault code display. It achieves a maximum working height of 26 ft 3 in (8.00 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 26 ft 3 in | 8.00 m |
| Max Platform Height | 19 ft 8 in | 6.00 m |
| Safe Working Load (S.W.L) | 1,190 lb | 540 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 7 ft 5 in × 3 ft 8 in | 2.27 m × 1.12 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 3 ft 9 in | 1.15 m |
| Overall Length (With Ladder) | 8 ft 2 in | 2.48 m |
| Overall Weight (Lead-acid/Lithium) | 4,299 lb | 1,950 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/185Ah (Maintenance-Free) | 24V/185Ah (Maintenance-Free) |
| Lifting Motor | 16VAC/3.5kW | 16VAC/3.5kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor/Outdoor) | 2/2 | 2/2 |
| Machine Model | JCPT0812HA |
🔹 Key Features & Benefits
-
✅ Maximum Capacity: Features a class-leading maximum load capacity of 1,190 lb (540 kg) for its class, making it ideal for heavy tools, materials, and multiple workers (rated for 2 indoor/outdoor occupants).
-
✅ Compact & Doorway Access: The narrow 3 ft 9 in (1.15 m) overall width allows for easy passage through standard single doorways and efficient maneuvering in confined indoor spaces.
-
✅ Fully Sealed AC System: The electric drive and lift systems are built with an advanced AC system for maintenance-free reliability, superior water resistance, efficiency, and safety.
-
✅ Ultra-Low Stowed Height: A stowed height (rails down) of only 5 ft 7 in makes it extremely easy to load, transport, and store in areas with minimal overhead clearance.
-
✅ Zero Emission & Quiet: Battery-powered, ensuring clean, low-noise operation, perfect for sensitive and finished indoor environments.
-
✅ Automatic Safety & Diagnostics: Equipped with the automatic pothole protection system for stability and an automatic fault code display for quick, easy service and maintenance.
🔹 Applications
-
Interior maintenance, stock replenishment, electrical, and finishing work in commercial and industrial settings requiring high capacity and moderate lift height (up to 26 ft).
-
Projects that require lifting heavy materials and multiple crew members while still needing to navigate narrow corridors.
-
Any indoor application that demands reliable, low-maintenance lifting with clean, quiet operation.
